EMBLEM & NAME PLATE

75310PLATE ASSY, FRONT PANEL

main75311-95704iCM30,40,KM30,YM30,40198509-198808

main75311-95705iCM35,36,41,KM31,35,36198509-198808

main75311-95708-06iCM30,40,YM30,40..FXV198804-198805

(4G3)/(4D2),BROWN,GOLD

75312APLATE, FRONT NAME, NO.2

main75312-95702-03iCM4#,YM40198510-198808

main75312-95702-13iCM4#,YM40..DLX,SW,XL7198510-198808

main75312-95705iCM40,YM40..GXL198610-198808

GXL LIMITED

main75312-95706-06iCM40,YM40..FXV198804-198805

(4G3)/(4D2),BROWN,GOLD

sub75443-95701

75351PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)

main75459-95703iKM31,35198509-198808

main75459-95704iCM35,36,41,KM36198509-198808

75381PLATE, QUARTER PANEL OR SIDE PANEL NAME (MODEL MARK)

main75381-95703-03iCM4#,YM40..DLX,SW198510-198808

SILVER,SILVER

main75381-95703-13iCM4#,YM40..DLX,SW198510-198808

DARK GRAY,DARK GRAY

75415ORNAMENT, ROOF SIDE

main75415-87007iCM30,40,KM30,YM30,40..FXV,GXL,SUC198509-198603

main75415-95701iCM30..SUC198603-198808

75461PLATE, REAR NAME, NO.2 (MODEL MARK)

main75442-95700iCM30,40..FXV,GXL198509-198808

main75442-95701-06iCM30,40..FXV198804-198805

(4G3)/(4D2),BROWN,GOLD

75463PLATE, REAR NAME, NO.4 (GRADE MARK)

main75441-95701-04iCM30,40,KM30,YM40..SW198509-198808

sub75441-95701

main75441-95701-08iCM30,40,KM30,YM40..SW198509-198808

sub75441-95701

main75441-95702-04iCM30,40,KM30,YM40..XL7198509-198808

sub75441-95702

main75441-95702-08iCM30,40,KM30,YM40..XL7198509-198808

sub75441-95702

main75441-95703iCM30,40,YM30,40..FXV198509-198808

main75441-95704iKM31,36..SUP198509-198808

main75441-95705-04iCM30,KM30..DLX198509-198808

sub75441-95705

main75441-95705-08iCM30,KM30..DLX198509-198808

sub75441-95705

main75441-95706iCM35,36,41,KM35,36..DLX198509-198808

main75441-95707iCM30,KM30..SUC198509-198808

main75441-95708iCM30,40,YM30,40..GXL198509-198808

main75441-95711iKM30..SCA198608-198808

main75441-95717-06iCM30,40,YM30,40..FXV198804-198805

(4G3)/(4D2),BROWN,GOLD

75485PLATE, BACK WINDOW NAME

main75312-95702-03iCM4#,YM40..DLX,FXV,GXL,SW198608-198808

main75312-95702-13iCM4#,YM40..DLX,SW198608-198808

main75312-95705iCM40,YM40..GXL198610-198808

GXL LIMITED

main75443-95700-03iCM40,YM40..XL7198608-198808

SILVER,SILVER

main75443-95701-06iCM40,YM40..FXV198804-198805

(4G3)/(4D2),BROWN,GOLD

main75485-95700iCM4#,YM40198510-198608

9020205021

main90202-05021

9046706060

main90467-06060

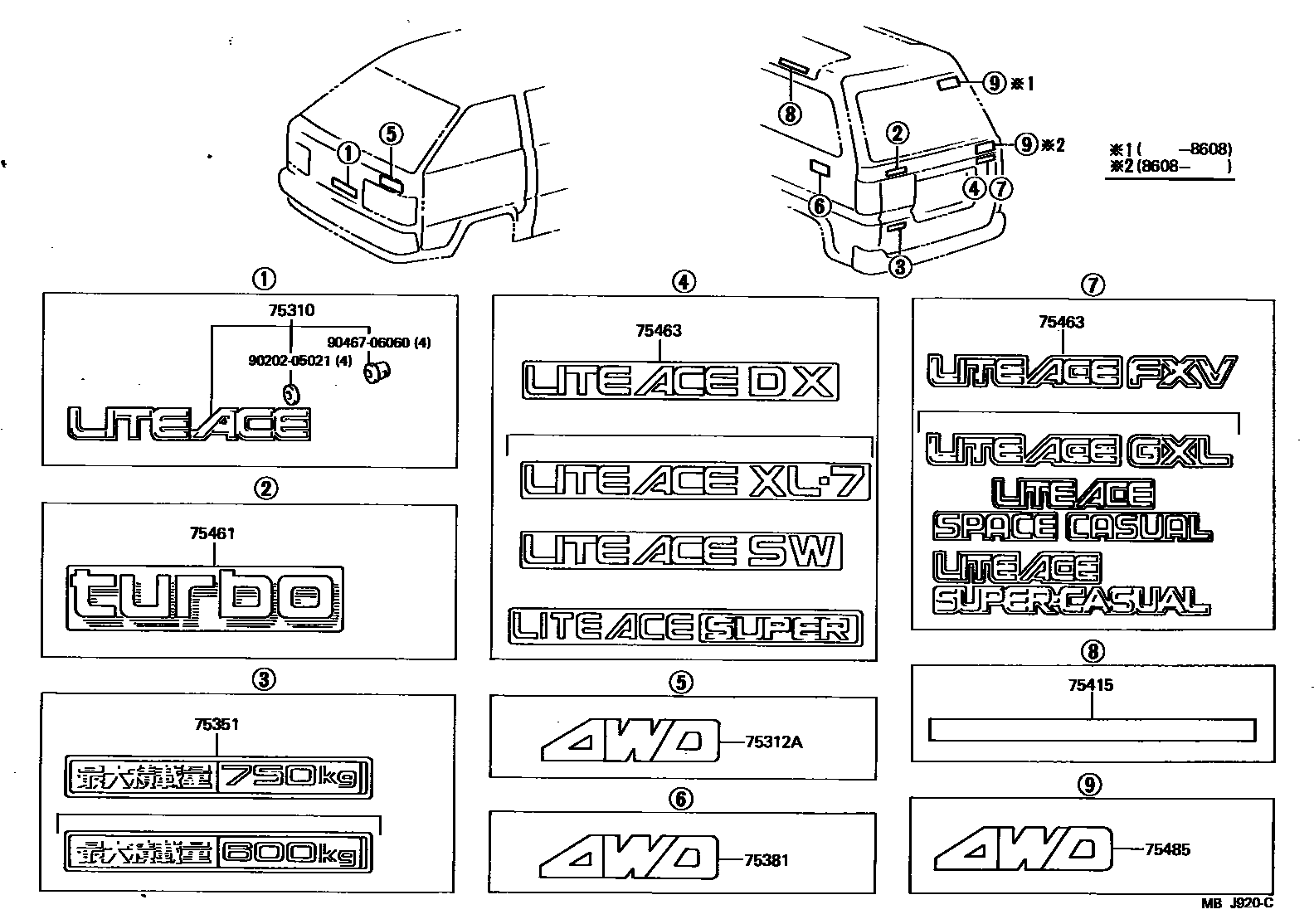

10 parts on this diagram · 1 diagram in section
