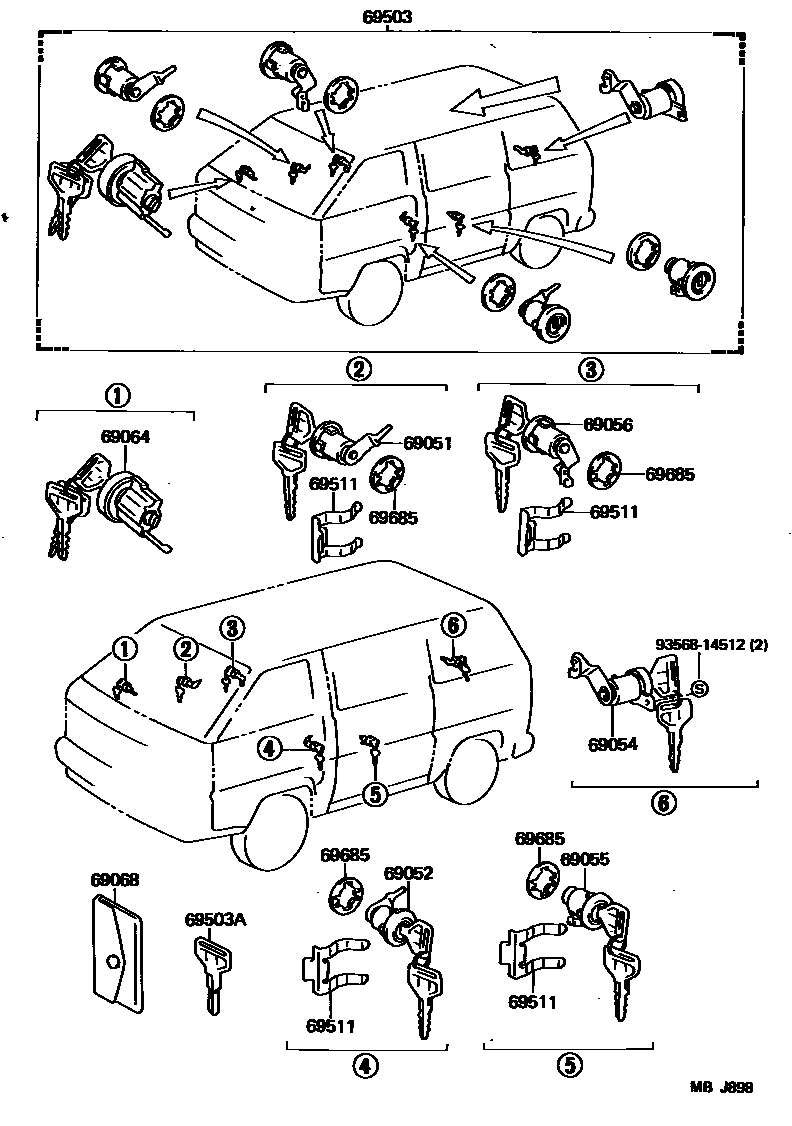

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95703iCM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198808

sub69051-95715

main69051-95706iCM30,40,YM30,40..FXV198509-198808

sub69051-95717

main69051-95706iCM30,40,YM30,40..GXL198609-198808

GXL-LIMITED

sub69051-95717

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95703iCM3#,4#,KM3#,YM30,40198509-198808

sub69052-95715

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-95709iCM3#,4#,KM3#,YM30,40198509-198808

sub69055-95712

69055CYLINDER & KEY SET, REAR DOOR LOCK, LH

main69054-95704iCM3#,4#,KM3#,YM30,40198509-198808

sub69054-95708

69056CYLINDER & KEY SET, REAR DOOR LOCK, RH

main69053-95704iCM35,36,41,KM31,35,36..V5D198509-198808

sub69053-95709

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-89107iCM3#,4#,KM3#,YM30,40198509-198608

sub69057-89108

main69057-95711iCM3#,4#,KM3#,YM30,40198608-198709

sub69057-89108

main69057-95717iCM3#,4#,KM3#,YM30,40198709-198808

69068COVER SUB-ASSY, KEY

main69555-20010iCM30,40,KM30,YM30,40..DLX,FXV,GXL,SCA,SUC,XL7198509-198808

69503CYLINDER SET, LOCK

main69503-95742iCM35,36,41,KM31,35,36..V4D198509-198608

main69503-95745iCM35,41,KM31,35,36..V5D198509-198608

sub69503-95757

main69503-95752iCM30,40,YM30,40..FXV198509-198608

sub69503-95761

main69503-95756iCM35,36,41,KM31,35,36..V4D198608-198709

main69503-95757iCM35,36,41,KM31,35,36..V5D198608-198709

main69503-95761iCM40,YM40..GXL198610-198808

GXL LIMITED

main69503-95761iCM30,40,YM30,40..FXV198608-198709

main69503-95768iCM30,40,KM30,YM30,40..DLX,GXL,SCA,SUC,SW,XL7198709-198808

sub69503-95784

main69503-95770iCM35,36,41,KM31,35,36..V5D198709-198808

sub69503-95786

main69503-95774iCM30,40,YM30,40..FXV198709-198808

sub69503-95G00

main69503-95G00iCM30,40,YM30,40..GXL198804-198805

GXL LIMITED

69503AKEY, BLANK

main90999-00066iCM3#,4#,KM3#,YM30,40198509-198808

sub90999-00085

main90999-00129iCM3#,4#,KM3#,YM30,40198608-198808

sub90999-00212

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-95400iCM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D198509-198808

69685PAD, LOCK CYLINDER

main69513-32010iCM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D198509-198808

9356814512

main93568-14512

12 parts on this diagram · 1 diagram in section
