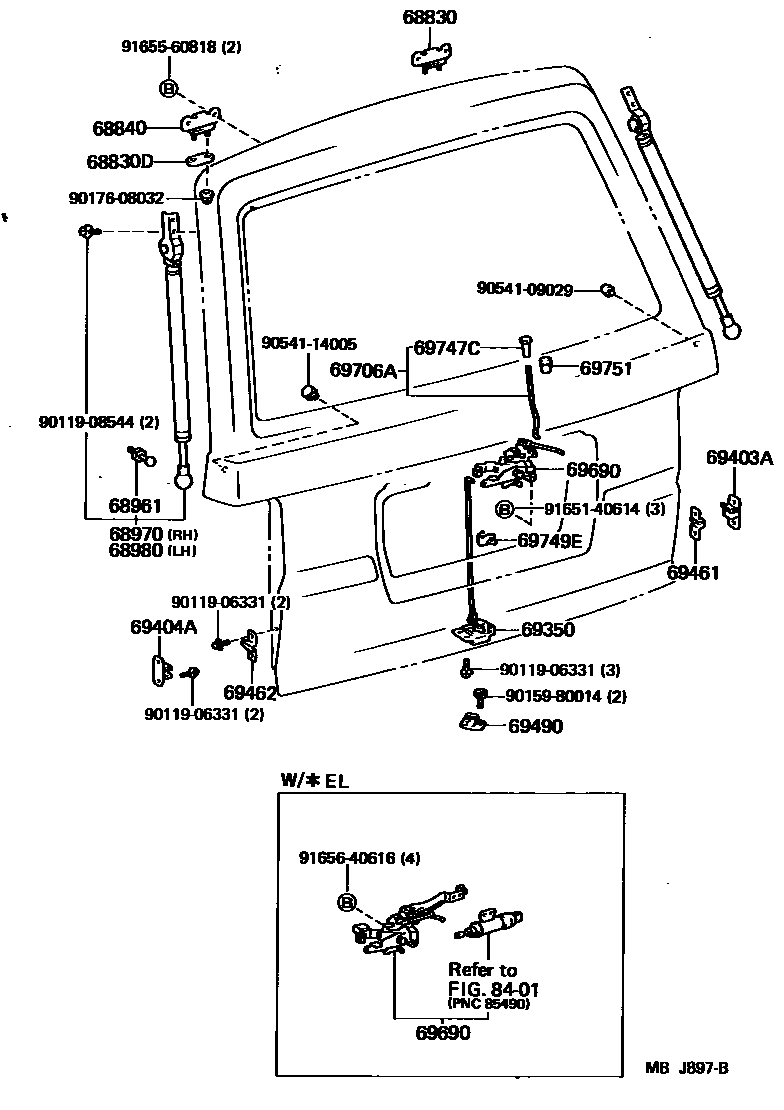

BACK DOOR LOCK & HINGE

68830HINGE ASSY, BACK DOOR, RH

main68810-95J00iCM3#,4#,KM3#,YM30,40198509-198807

sub68810-95J01

main68810-95J01iCM3#,4#,KM3#,YM30,40198807-198808

68830DPLATE, BACK DOOR HINGE

main68825-95700iCM3#,4#,KM3#,YM30,40198509-198808

68840HINGE ASSY, BACK DOOR, LH

main68820-95J00iCM3#,4#,KM3#,YM30,40198509-198807

sub68820-95J01

main68820-95J01iCM3#,4#,KM3#,YM30,40198807-198808

68961BOLT, BACK DOOR STAY

main68961-95701iCM3#,4#,KM3#,YM30,40198509-198808

sub68961-95702

68970STAY ASSY, BACK DOOR, RH

main68950-29435iCM3#,41,KM3#..SRF198509-198808

sub68950-29745

main68950-29445iCM35,36,KM31,35,36..SRF198509-198608

COLD SPEC & W/RR WIPER

main68950-29445iCM30,KM30..SRF198509-198608

COOLING VAN

main68950-29445iCM30,KM30..SRF198509-198608

COLD SPEC,W/RR WIPER OR *EL

main68950-29475iCM3#,4#,KM3#,YM40..(HRF,MRF)..(DLX,SUP,SW,XL7)198509-198608

sub68950-29575

main68950-29485iCM30,40,KM30,YM30,40..FXV,GXL,SUC198509-198608

COLD SPEC,W/RR WIPER OR *EL

sub68950-29765

main68950-29485iCM30,40,KM30,YM30,40..FXV,GXL,SUC198509-198608

COLD SPEC OR W/RR WIPER

sub68950-29765

main68950-29485iCM3#,4#,KM3#,YM40..(HRF,MRF)..(DLX,SUP,SW,XL7)198608-198808

LABEL COLOR=SILVER

sub68950-29765

main68950-29495iCM35,36,41,KM31,35,36..HRF,MRF198509-198608

COLD SPEC OR W/CURTAIN

sub68950-29775

main68950-29495iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC,XL7198608-198808

LABEL COLOR=GREEN

sub68950-29775

main68950-29575iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198608-198808

LABEL COLOR=BLACK

sub68950-29825

main68950-29585iCM3#,4#,KM30,35,36,YM40..(HRF,MRF)..(DLX,SW)198608-198808

LABEL COLOR=YELLOW

sub68950-29805

main68950-29595iCM3#,4#,KM3#,YM40..(HRF,MRF)..(DLX,SUP,SW,XL7)198608-198808

LABEL COLOR=BROWN

sub68950-29815

68980STAY ASSY, BACK DOOR

main68960-29295iCM3#,41,KM3#..SRF198509-198808

sub68960-29575

main68960-29305iCM35,KM35..VSP198509-198608

COLD SPEC & W/RR WIPER

main68960-29305iCM35,KM35..VSP198509-198608

COOLING VAN

main68960-29305iCM35,KM35..VSP198509-198608

COLD SPEC,W/RR WIPER OR *EL

main68960-29335iCM3#,4#,KM3#,YM40..(HRF,MRF)..(DLX,SUP,SW,XL7)198509-198608

sub68960-29425

main68960-29345iCM30,40,KM30,31,36,YM40..(HRF,MRF)..(SUP,SW,XL7)198509-198608

COLD SPEC,W/RR WIPER OR *EL

sub68960-29595

main68960-29345iCM30,40,KM30,31,36,YM40..(HRF,MRF)..(SUP,SW,XL7)198509-198608

COLD SPEC OR W/RR WIPER

sub68960-29595

main68960-29345iCM3#,4#,KM3#,YM40..(HRF,MRF)..(DLX,SUP,SW,XL7)198608-198808

LABEL COLOR=SILVER

sub68960-29595

main68960-29355iCM30,40,KM30,YM30,40..MRF198509-198608

COLD SPEC OR W/CURTAIN

sub68960-29605

main68960-29355iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC,XL7198608-198808

LABEL COLOR=GREEN

sub68960-29605

main68960-29425iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198608-198808

LABEL COLOR=BLACK

sub68960-29655

main68960-29435iCM3#,4#,KM30,35,36,YM40..(HRF,MRF)..(DLX,SW)198608-198808

LABEL COLOR=YELLOW

sub68960-29635

main68960-29445iCM3#,4#,KM3#,YM40..(HRF,MRF)..(DLX,SUP,SW,XL7)198608-198808

LABEL COLOR=BROWN

sub68960-29645

69350LOCK ASSY, BACK DOOR

main69350-95705iCM3#,4#,KM3#,YM30,40198509-198808

sub69350-95709

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main69403-95700iCM3#,4#,KM3#,YM30,40198509-198808

sub69403-95701

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main69404-95700iCM3#,4#,KM3#,YM30,40198509-198808

sub69404-95701

69461STOPPER, BACK DOOR SIDE MALE, RH

main69461-95701iCM3#,4#,KM3#,YM30,40198509-198808

sub69461-95702

69462STOPPER, BACK DOOR SIDE MALE, LH

main69462-95701iCM3#,4#,KM3#,YM30,40198509-198808

sub69462-95702

69490STRIKER ASSY, BACK DOOR LOCK

main69430-87002iCM3#,4#,KM3#,YM30,40198509-198606

sub69430-95702

main69430-95702iCM3#,4#,KM3#,YM30,40198606-198808

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-95702iCM35,KM35..VSP198509-198808

COOLING VAN,W/*EL

main69690-95704iCM35,KM35..VSP198509-198808

COOLING VAN

main69690-95705iCM35,36,41,KM31,35,36198509-198808

W/*EL

sub69690-95702

main69690-95706iCM35,36,41,KM35,36..DLX198509-198808

main69690-95709iCM30,40,YM30,40..GXL198610-198808

GXL LIMITED

sub69690-95702

main69690-95709iCM30,40,YM30,40..FXV198509-198808

sub69690-95702

69706AROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL

main69706-95701-04iCM30,40,KM30,31,36,YM30,40..GXL,SCA,SUC,SUP,SW,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

sub69706-95701

main69706-95701-06iCM30,40,KM30,31,36,YM30,40..FXV,GXL,SCA,SUC,SUP,SW198509-198808

BROWN,BROWN,TRIM4#

sub69706-95701

69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)

main69741-95703-04iCM30,40,KM30,31,36,YM30,40..GXL,SCA,SUC,SUP,SW,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

sub69741-95703

main69741-95703-06iCM30,40,KM30,31,36,YM30,40..FXV,GXL,SCA,SUC,SUP,SW198509-198808

BROWN,BROWN,TRIM4#

sub69741-95703

69749ECLAMP, BACK DOOR LOCK LINK

main69749-30020iCM3#,4#,KM3#,YM30,40198509-198808

69751HOLDER, DOOR LOCK CONTROL KNOB

main69751-95701-04iCM30,40,KM30,31,36,YM30,40..GXL,SCA,SUC,SUP,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

sub69751-95701

main69751-95701-06iCM30,40,KM30,31,36,YM30,40..FXV,GXL,SCA,SUC,SUP198509-198808

BROWN,BROWN,TRIM4#

sub69751-95701

8401

9011906331

main90119-06331

9011908544

main90119-08544

9015980014

main90159-80014

9017608032

main90176-08032

9054109029

main90541-09029

9054114005

main90541-14005

9165140614

main91651-40614

9165560818

main91655-60818

9165640616

main91656-40616

27 parts on this diagram · 1 diagram in section
