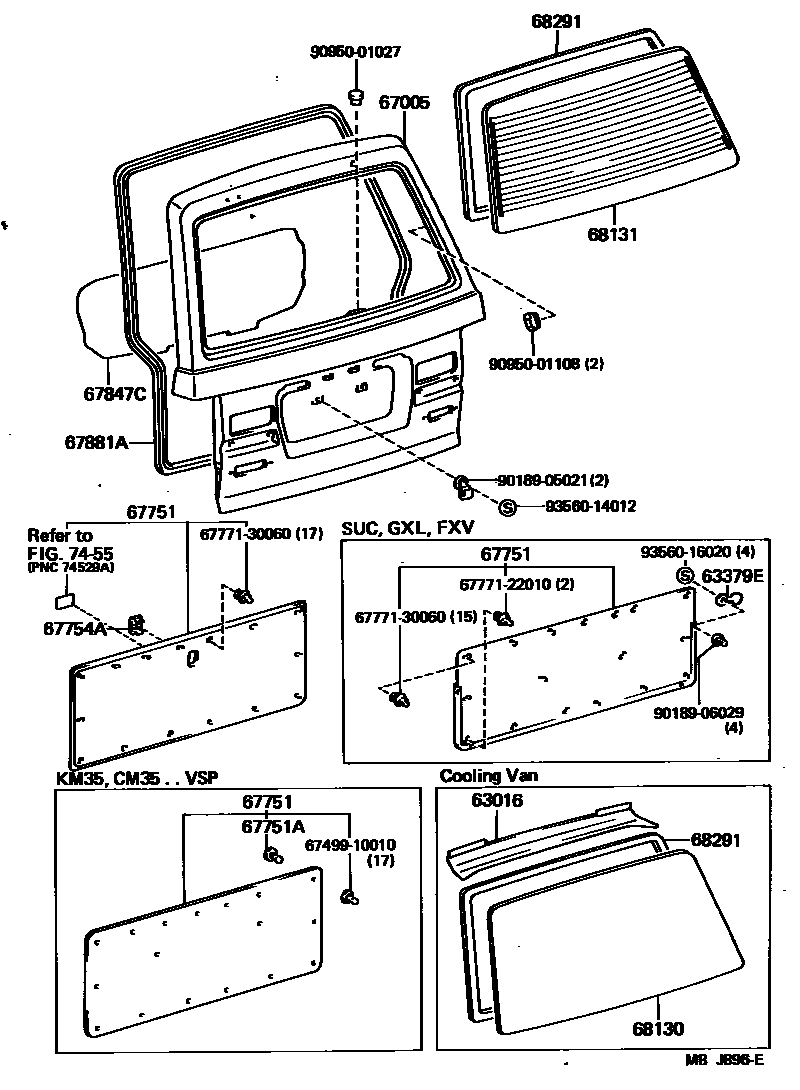

BACK DOOR PANEL & GLASS

63016COVER SUB-ASSY, BACK DOOR OPENING, UPPER INNER

main63016-95700-06iKM36..MRF..03S198509-198808

BROWN,BROWN,TRIM4#

63379EWASHER, BACK DOOR TRIM SETTING

main63379-20010-14iCM30,40,KM30,YM30,40..GXL,SCA,SUC198509-198808

BLUE,BLUE,TRIM4#,8#

main63379-20010-16iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

BROWN,BROWN,TRIM4#

67005PANEL SUB-ASSY, BACK DOOR

main67005-95754iCM40,YM30,40..FXV,GXL198509-198808

W/POWER CURTAIN

main67005-95756iKM31..SRF198509-198808

W/RR UNDER MIRROR

sub67005-95G51

main67005-95758iCM3#,41,KM3#..SRF198509-198808

W/RR WIPER

sub67005-95G35

main67005-95760iKM31,36..(HRF,MRF)..SUP198509-198808

W/RR UNDER MIRROR

sub67005-95G52

main67005-95762iCM3#,4#,KM3#,YM40..(HRF,MRF)..(DLX,SUP,SW,XL7)198509-198808

W/RR WIPER

sub67005-95G36

main67005-95764iCM35,36,41,KM35,36..SRF198509-198808

W/RR UNDER MIRROR

sub67005-95G55

main67005-95766iCM3#,41,KM3#..SRF198509-198808

sub67005-95G25

main67005-95768iCM35,36,41,KM35,36..(HRF,MRF)..DLX198509-198808

W/RR UNDER MIRROR

sub67005-95G48

main67005-95770iCM3#,4#,KM30,35,36,YM40..(HRF,MRF)..(DLX,SW,XL7)198509-198808

sub67005-95G32

main67005-95G11iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

67751BOARD, BACK DOOR TRIM

main67750-95700-04iCM30,40,KM30,YM40..DLX,SW,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

sub67750-95704

main67750-95702-06iCM35,KM35..VSP198509-198808

BROWN,SABLE,TRIM4#

main67750-95703-06iKM36..MRF..03S198509-198808

BROWN,BROWN,TRIM4#

main67750-95704-04iCM30,40,KM30,YM40..DLX,SW,XL7198509-198808

W/RR WIPER,BLUE,BLUE,TRIM4#,8#

sub67750-95704

main67750-95706-06iCM35,KM35..VSP198509-198808

W/RR WIPER,BROWN,BROWN,TRIM4#

sub67750-95706

main67750-95707-06iKM36..MRF..03S198509-198808

W/RR WIPER,BROWN,BROWN,TRIM4#

sub67750-95707

main67750-95708-04iCM30,40,KM30,YM30,40..GXL,SUC198509-198608

BLUE,BLUE,TRIM4#,8#

sub67750-95712

main67750-95708-06iCM30,40,KM30,YM30,40..FXV,GXL,SUC198509-198608

BROWN,BROWN,TRIM4#

sub67750-95712

main67750-95709-04iCM35,36,41,KM35,36..VSG..DLX198509-198808

BLUE,BLUE,TRIM4#,8#

sub67750-95710

main67750-95709-06iCM35,36,41,KM35,36..VSG..DLX198509-198808

BROWN,BROWN,TRIM4#

sub67750-95710

main67750-95710-04iCM35,36,41,KM31,35,36..VSG198509-198808

W/RR WIPER,BLUE,BLUE,TRIM4#,8#

sub67750-95710

main67750-95710-06iCM35,36,41,KM31,35,36..VSG198509-198808

W/RR WIPER,BROWN,BROWN,TRIM4#

sub67750-95710

main67750-95712-04iCM30,40,KM30,YM30,40..GXL,SCA,SUC198608-198808

BLUE,BLUE,TRIM4#,8#

sub67750-95712

main67750-95712-06iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198608-198808

BROWN,BROWN,TRIM4#

sub67750-95712

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-07037-16iCM35,KM35..VSP198509-198610

BROWN,BROWN,TRIM4#

sub90467-07037

sub90467-07054

main90467-07054-06iCM35,KM35..VSP198610-198808

BROWN,SABLE,TRIM4#

sub90467-07054

67754ACOVER, BACK DOOR HOLE

main55528-30020-24iCM30,40,KM30,YM30,40..DLX,GXL,SCA,SUC,SW,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

sub55528-30020

main55528-30020-26iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

BROWN,BROWN,TRIM4#

sub55528-30020

67847CCOVER, BACK DOOR SERVICE HOLE, NO.1

main67847-95700iCM3#,4#,KM3#,YM30,40198509-198808

W/RR WIPER

main67847-95701iCM3#,4#,KM30,35,36,YM40..DLX,SCA,SW,XL7198509-198808

67881AWEATHERSTRIP, BACK DOOR

main67881-95702iCM3#,41,KM3#..SRF198509-198808

sub67881-95704

main67881-95703iCM3#,4#,KM3#,YM30,40..HRF,MRF198509-198808

sub67881-95705

68130PANEL, BACK DOOR WINDOW

main68131-95721iCM35,KM35..VSP198509-198808

68131GLASS, BACK DOOR

main68131-95712iCM3#,KM3#..SRF198509-198808

main68131-95714iCM35,36,41,KM35,36..SRF198509-198808

sub68131-95715

main68131-95716iCM3#,4#,KM3#,YM40..(HRF,MRF)..(DLX,SUP,SW)198509-198808

main68131-95717iCM30,40,KM30,YM30,40..GXL,SCA,SUC,XL7198509-198808

sub68131-95728

main68131-95718iCM30,40,YM30,40..FXV,GXL198509-198808

sub68131-95729

main68131-95719iCM35,36,41,KM35,36..HRF,MRF198509-198808

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-95706iCM3#,41,KM3#..SRF198509-198808

main68291-95707iCM35,KM35..VSP198509-198808

COOLING VAN

main68291-95708iCM3#,4#,KM3#,YM30,40..HRF,MRF198509-198808

7455

6749910010RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-10010

6777122010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-22010

6777130060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30060

9018905021

main90189-05021

9018906029

main90189-06029

9095001027

main90950-01027

9095001108

main90950-01108

9356014012

main93560-14012

9356016020

main93560-16020

21 parts on this diagram · 1 diagram in section
