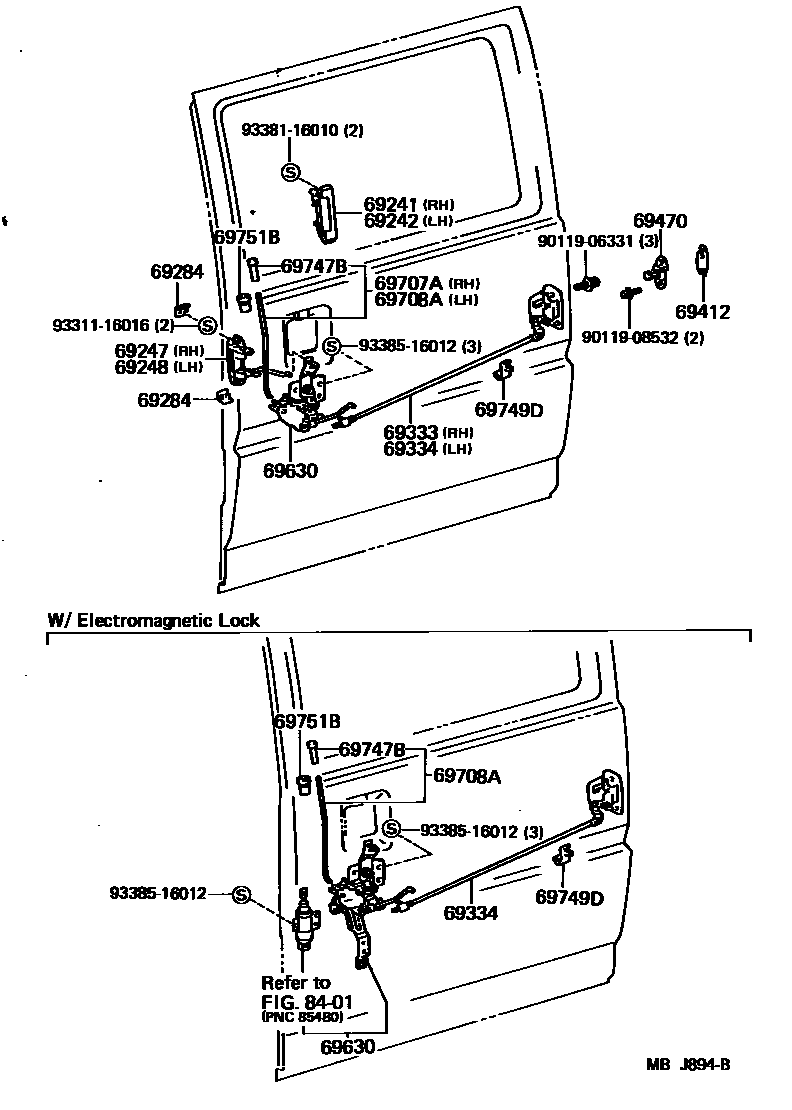

REAR DOOR LOCK & HANDLE

69241HANDLE ASSY, SLIDE DOOR OUTSIDE, RH

main69230-87003iCM35,41,KM31,35,36..V5D198509-198802

main69230-95J00iCM35,36,41,KM31,35,36..V5D198802-198808

69242HANDLE ASSY, SLIDE DOOR OUTSIDE, LH

main69240-87002iCM3#,4#,KM3#,YM30,40198509-198802

main69240-95J00iCM3#,4#,KM3#,YM30,40198802-198808

69247HANDLE, SLIDE DOOR INSIDE, RH

main69070-95700-04iCM35,36,41,KM31,35,36..V5D198509-198808

BLUE,BLUE,TRIM4#,8#

main69070-95700-06iCM35,36,41,KM31,35,36..V5D198509-198808

BROWN,BROWN,TRIM4#

69248HANDLE, SLIDE DOOR INSIDE, LH

main69080-95700-04iCM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

main69080-95700-06iCM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP198509-198808

BROWN,BROWN,TRIM4#

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-87001-04×2iCM35,36,41,KM31,35,36..V4D..VSG198509-198808

BLUE,BLUE,TRIM4#,8#

main69284-87001-06×2iCM35,36,41,KM31,35,36..V4D;CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

BROWN,BROWN,TRIM4#

69333LOCK ASSY, SLIDE DOOR, RH

main69330-95702iCM35,36,41,KM31,35,36..V5D198509-198808

69334LOCK ASSY, SLIDE DOOR, LH

main69340-95702iCM3#,4#,KM3#,YM30,40198509-198808

69412SHIM, DOOR LOCK STRIKER

main69413-87002iCM3#,4#,KM3#,YM30,40198509-198808

sub69413-28020

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-95701iCM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D198509-198808

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-95706iCM35,36,41,KM31,35,36..V5D198509-198808

RH

main69640-95704iCM40,YM40..GXL198610-198808

GXL LIMITED

main69640-95705iCM30,40,KM30,YM30,40..GXL,SCA,SUC,XL7198509-198808

LH

main69640-95706iCM35,36,41,KM31,35,36198509-198808

LH,W/*EL

main69640-95707iCM3#,41,KM3#..DLX,SUP,SW198509-198608

LH

69707AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH

main69707-95700-04iCM35,36,41,KM31,35,36..V5D198509-198808

BLUE,BLUE,TRIM4#,8#

main69707-95700-06iCM35,36,41,KM31,35,36..V5D198509-198808

BROWN,BROWN,TRIM4#

69708AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH

main69708-95700-04iCM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

main69708-95700-06iCM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP198509-198808

BROWN,BROWN,TRIM4#

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-95703-04iCM35,36,41,KM31,35,36..V4D..VSG198509-198808

BLUE,BLUE,TRIM4#,8#

main69741-95703-06iCM35,36,41,KM31,35,36..V4D;CM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

BROWN,BROWN,TRIM4#

69749DCLAMP, SLIDE DOOR LOCK LINK

main69749-95700iCM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D198509-198808

69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)

main69751-95701-04iCM30,40,KM30,YM30,40..DLX,GXL,SUC,SW,XL7198509-198608

BLUE,BLUE,TRIM4#,8#

main69751-95701-06iCM35,36,41,KM31,35,36..V4D;CM30,40,KM30,YM30,40..FXV,GXL,SUC198509-198608

BROWN,BROWN,TRIM4#

8401

9011906331

main90119-06331

9011908532

main90119-08532

9331116016

main93311-16016

9338116010

main93381-16010

9338516012

main93385-16012

21 parts on this diagram · 1 diagram in section
