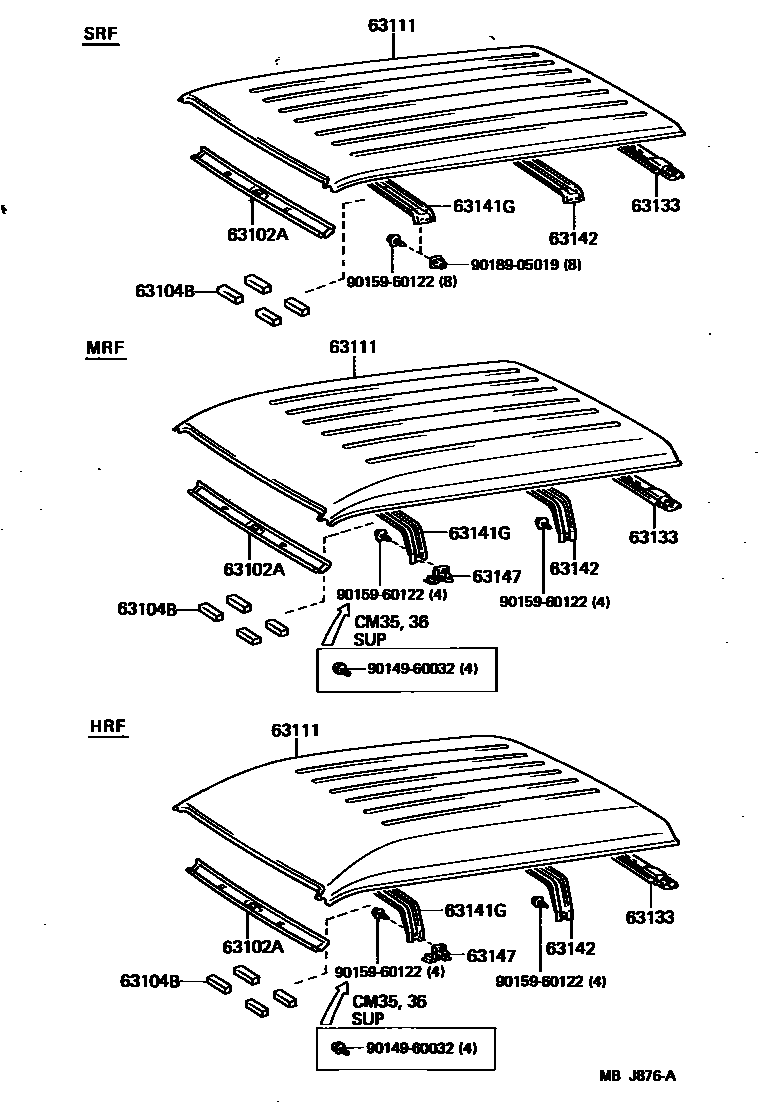

ROOF PANEL & BACK PANEL

0001 1 0002 1SKYLITE ROOF

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-95706iCM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7198509-198808

main63102-95707iCM30..SUC..DSL198509-198808

main63102-95708iCM30..FXV,GXL198509-198808

W/SKYLITE ROOF

63104BCUSHION, ROOF TO ROOF REINFORCEMENT

main63147-95A00iCM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7198509-198602

sub63357-95701

main63357-95700iCM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7198602-198603

sub63357-95701

main63357-95701iCM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7198603-198808

63111PANEL, ROOF

main63101-95708iCM30..SUC198509-198808

W/SKYLITE ROOF

main63111-95710iCM3#,41,KM3#..SRF198509-198808

main63111-95711iCM3#,KM3#..HRF198509-198808

main63111-95712iCM35,41,KM35,36..MRF198509-198808

63133FRAME, BACK WINDOW OPENING, UPPER

main63071-95700iCM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7198509-198808

sub63071-95703

main63071-95701iCM40,KM30,YM30,40..GXL,SCA,SUC198509-198808

sub63071-95704

main63071-95702iCM40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

W/SKYLITE ROOF

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63103-95705iCM35,41,KM36..MRF..5F198509-198808

COLD SPEC

main63103-95706iCM30..GXL198509-198808

main63103-95707iCM35,41,KM36..MRF..5F198509-198808

main63103-95708iCM35,36,KM31..HRF198509-198808

COLD SPEC

main63103-95709iCM35,36,KM31..HRF198509-198808

main63103-95710iCM35,36,41,KM31..SRF198509-198808

COLD SPEC

main63103-95711iCM35,36,41,KM31..SRF198509-198808

sub63103-95710

main63141-95701iKM35,36..SRF198509-198808

COLD SPEC

sub63103-95710

main63141-95704iKM35,36..HRF198509-198808

COLD SPEC

main63141-95706iCM30,KM30,35,36..HRF198509-198808

main63141-95708iKM36..MRF..03S198509-198808

COLD SPEC

main63141-95710iCM40,YM40..SW198509-198808

main63142-95703iCM30,KM30,35,36..SRF198509-198808

TECS

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95703iCM3#,41,KM3#..SRF198509-198808

main63142-95704iCM3#,KM3#..HRF198509-198808

main63142-95705iCM30,35,4#,KM30,35,36,YM30,40..MRF..(DLX,GXL,SCA,SUC,SUP,XL7)198509-198808

63147BRACKET, ROOF PANEL REINFORCEMENT

main63147-95703iKM35..V5D..(HRF,MRF)198509-198808

RH

main63147-95704iCM35,41,KM31,36..V5D..(HRF,MRF)198509-198808

RH

main63148-95701iCM30..SUC..DSL198509-198808

LH

main63148-95702iKM36..SUP198509-198808

LH

main63155-95700iCM30..SUC..DSL198509-198808

RH

9014960032

main90149-60032

9015960122

main90159-60122

9018905019

main90189-05019

10 parts on this diagram · 2 diagrams in section
