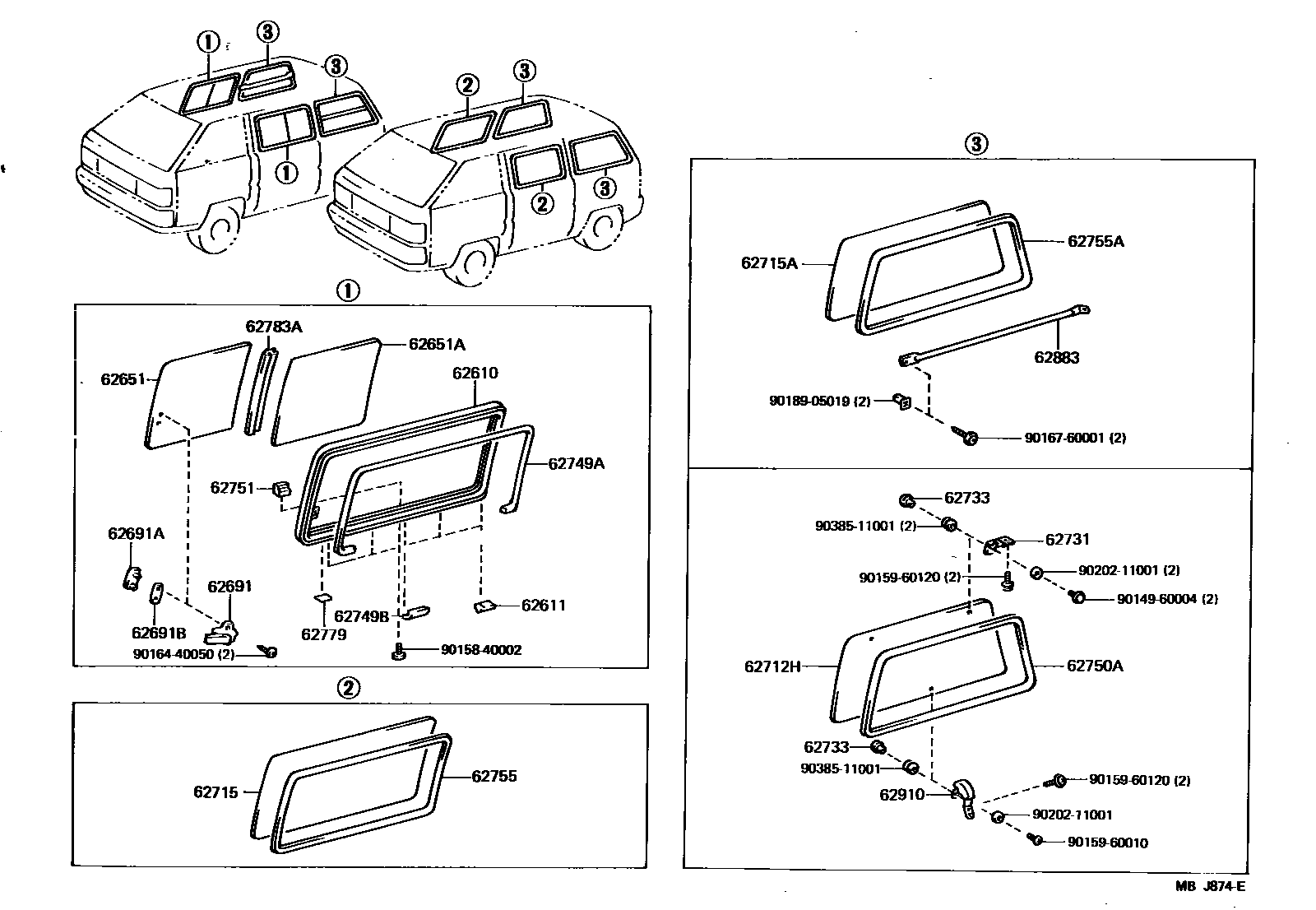

SIDE WINDOW

0001 1 0002 1

62610SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE)

main62707-95701iCM35,36,41,KM31,35,36..V4D..(05S,06S)198509-198808

RH

sub62707-27010

main62707-95702iCM30,40,KM30,YM30,40..DLX,FXV,GXL,SCA,SUC,XL7198509-198808

RH

sub62707-27020

main67043-95700iCM35,36,41,KM31,35,36..V5D..(05S,06S)198509-198808

RH

sub67043-27010

main67044-95700iCM30,40,KM30,YM40..SW198509-198808

LH

sub67044-27010

main67044-95701iCM30,40,KM30,YM30,40..DLX,FXV,GXL,SUC,XL7198509-198808

LH

sub67044-27020

62611SPACER, SIDE WINDOW SUPPORT, NO.1

main62279-95701iCM30,40,KM30,YM30,40198509-198808

62651GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)

main62711-95703iCM30,KM30..DLX,SW198509-198808

sub62711-95704

main62711-95704iKM31,36..V4D..SUP198509-198808

main62711-95705iCM30,40,YM30,40..FXV,GXL198509-198808

main62711-95706iCM30,40,KM30,YM30,40..FXV,GXL,SUC198509-198808

main62711-95707iCM30,KM30..SUC198509-198808

main62732-95715iCM35,36,41,KM35,36..V5D..DLX..(05S,06S)198509-198808

sub62732-95716

main62732-95716iKM31,36..V5D..SUP198509-198808

main62733-95706iCM35,36,41,KM35,36..DLX..(05S,06S)198509-198808

sub62733-95707

main62733-95707iCM30,40,KM30,31,36,YM30,40..GXL,SCA,SUP,XL7198509-198808

main62733-95708iCM30,40,YM30,40..FXV,GXL198509-198808

main62733-95709iCM30,40,KM30,YM30,40..GXL,SUC198509-198808

main62733-95710iCM30,KM30..SUC198509-198808

62651AGLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE)

main62713-95710iCM30,40,KM30,YM40..SW198509-198808

sub62713-95711

main62713-95711iKM31,36..V4D..SUP198509-198808

main62713-95712iCM30,KM30..DLX198509-198808

sub62713-95713

main62713-95713iCM30,40,KM30,YM30,40..GXL,SCA,XL7198509-198808

main62713-95714iCM30,40,YM30,40..FXV,GXL198509-198808

main62713-95715iCM30,40,KM30,YM30,40..FXV,GXL,SUC198509-198808

main62713-95716iCM30,KM30..SUC198509-198808

main62735-95704iCM35,36,41,KM35,36..V5D..DLX..(05S,06S)198509-198808

sub62735-95705

main62735-95705iKM31,36..V5D..SUP198509-198808

main62736-95701iCM35,36,41,KM35,36..DLX..(05S,06S)198509-198808

sub62736-95702

main62736-95702iKM31,36..SUP198509-198808

main62736-95703iCM30,KM30..DLX,SW198509-198808

sub62736-95704

main62736-95704iCM30,40,KM30,YM30,40..GXL,SCA,XL7198509-198808

main62736-95705iCM30,40,YM30,40..FXV,GXL198509-198808

main62736-95706iCM30,40,KM30,YM30,40..FXV,GXL,SUC198509-198808

main62736-95707iCM30,KM30..SUC198509-198808

62691LOCK, SIDE WINDOW, NO.1 GLASS (FOR SLIDE TYPE)

main62910-95702iCM30,KM30..SW198509-198808

62691APACKING, SIDE WINDOW LOCK, NO.1

main62792-95A00iCM35,36,41,KM31,35,36..05S,06S198509-198808

62691BRETAINER, SIDE WINDOW LOCK, NO.1

main62793-95704iCM30,KM30..SW198509-198808

62712HGLASS, SIDE WINDOW, NO.2(FOR HINGE TYPE)

main62715-95703iCM30,KM30..DLX198509-198808

sub62715-95704

main62715-95704iCM30,40,KM30,YM30,40..GXL,SCA,XL7198509-198808

main62715-95705iCM30,40,YM30,40..FXV,GXL198509-198808

main62715-95706iCM30,40,YM30,40..FXV,GXL198509-198808

main62715-95709iCM41..V5D..02S198706-198808

main62715-95712iYM30..5F..FXV198804-198805

RH,*TEM,BR0NZE,T=4.0(4G3/4D2)

main62716-95709iCM41..V5D..02S198706-198808

sub62716-95710

62715GLASS, SIDE WINDOW, NO.1(FOR FIXED TYPE)

main62711-95708iCM35,41,KM35,36..V4D..VSG..(02S,03S)198509-198808

main62732-95717iCM35,41,KM35..V5D..(02S,03S)198509-198808

main62732-95717iCM35,41,KM35..V5D..(02S,03S)198509-198808

62715AGLASS, SIDE WINDOW, NO.2(FOR FIXED TYPE)

main62715-95700iCM35,36,41,KM31,35,36..VSG198509-198808

sub62715-95701

main62715-95702iCM30,KM30..SUC198509-198808

main62715-95707iCM30,KM30..SUC198509-198808

main62716-95700iCM30,40,KM30,YM40..DLX,SW198509-198808

sub62716-95701

main62716-95701iCM30,40,KM30,YM30,40..GXL,SCA,XL7198509-198808

main62716-95702iCM30,40,YM30,40..FXV,GXL198509-198808

main62716-95703iCM30,40,YM30,40..FXV,GXL198509-198808

main62716-95704iCM30,KM30..SUC198509-198808

main62716-95707iCM30,KM30..SUC198509-198808

main62716-95712iYM30..5F..FXV198804-198805

LH,*TEM,BRONZE,T=4.0(4G3/4D2)

62731PLATE, QUARTER OR SIDE WINDOW HINGE

main62734-95701iCM41..V5D..02S198706-198808

main62734-95705iCM30,40,KM30,YM30,40..DLX,FXV,GXL,SCA,XL7198509-198808

62733RETAINER, QUARTER OR SIDE WINDOW HINGE

main62735-14010iCM35..V5D..HRF198706-198808

main63273-95701iCM30,40,KM30,YM30,40..DLX,FXV,GXL,SCA,XL7198509-198808

62749ASEAL, SIDE WINDOW, UPPER

main62749-95701iCM30,40,KM30,YM30,40198509-198808

RH

main62749-95702iCM35,36,41,KM31,35,36..V5D..(05S,06S)198509-198808

LH

sub62749-95701

62749BSEAL, SIDE WINDOW FRAME

main62749-95704iCM30,40,KM30,YM30,40198608-198808

62750AWEATHERSTRIP, SIDE WINDOW, NO.2(FOR HINGE TYPE)

main62743-95704iCM41..V5D..02S198509-198808

RH

main62743-95705iCM41..V5D..02S198509-198808

COLD SPEC,RH

sub62743-95704

main62744-95701iCM41..V5D..02S198706-198708

COLD SPEC,LH

sub62744-95702

main62744-95702iCM35..V5D..HRF198706-198808

LH

62751STOP, SIDE WINDOW FIX GLASS

main62751-95661iCM30,KM30..SW198509-198808

62755WEATHERSTRIP, SIDE WINDOW, NO.1(FOR FIXED TYPE)

main62741-95700iCM35,41,KM35,36..V4D..VSG..(02S,03S)198509-198808

RH

main62751-95705iCM35,41,KM35..V5D..(02S,03S)198509-198808

RH

main62751-95705iCM35,41,KM35,36..VSG..(02S,03S)198509-198808

LH

62755AWEATHERSTRIP, SIDE WINDOW, NO.2(FOR FIXED TYPE)

main62743-95702iCM30,40,KM30,YM30,40..DLX,FXV,GXL,SCA,XL7198509-198808

main62743-95703iCM30,KM30..SUC198509-198808

62779PACKING, SIDE WINDOW GLASS, NO.1

main62719-95701iCM30,40,KM30,YM30,40198509-198808

62783ASASH, SIDE WINDOW, CENTER

main62783-95700iCM30,40,KM30,YM30,40198509-198808

62883GUARD ASSY, SIDE WINDOW

main62897-95702iCM35,36,41,KM31,35,36..V4D..(05S,06S)198509-198808

RH

main62897-95703iCM35,36,41,KM31,35,36..V5D198509-198808

RH

main62897-95704iCM35,41,KM35,36..V4D..VSG..(02S,03S)198509-198808

RH

main62898-95702iCM35,36,41,KM31,35,36..VSG198509-198808

LH

62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH

main62950-95700-01iCM30,40,KM30,YM30,40..DLX,FXV,GXL,SCA,XL7198509-198803

BLACK,BLACK

main62950-95702iCM41..V5D..02S198706-198808

main62950-95703-01iCM30,40,KM30,YM30,40..DLX,FXV,GXL,SCA,XL7198803-198808

BLACK,BLACK

9014960004

main90149-60004

9015840002

main90158-40002

9015960010

main90159-60010

9015960120

main90159-60120

9016440050

main90164-40050

9016760001

main90167-60001

9018905019

main90189-05019

9020211001

main90202-11001

9038511001

main90385-11001

31 parts on this diagram · 2 diagrams in section
