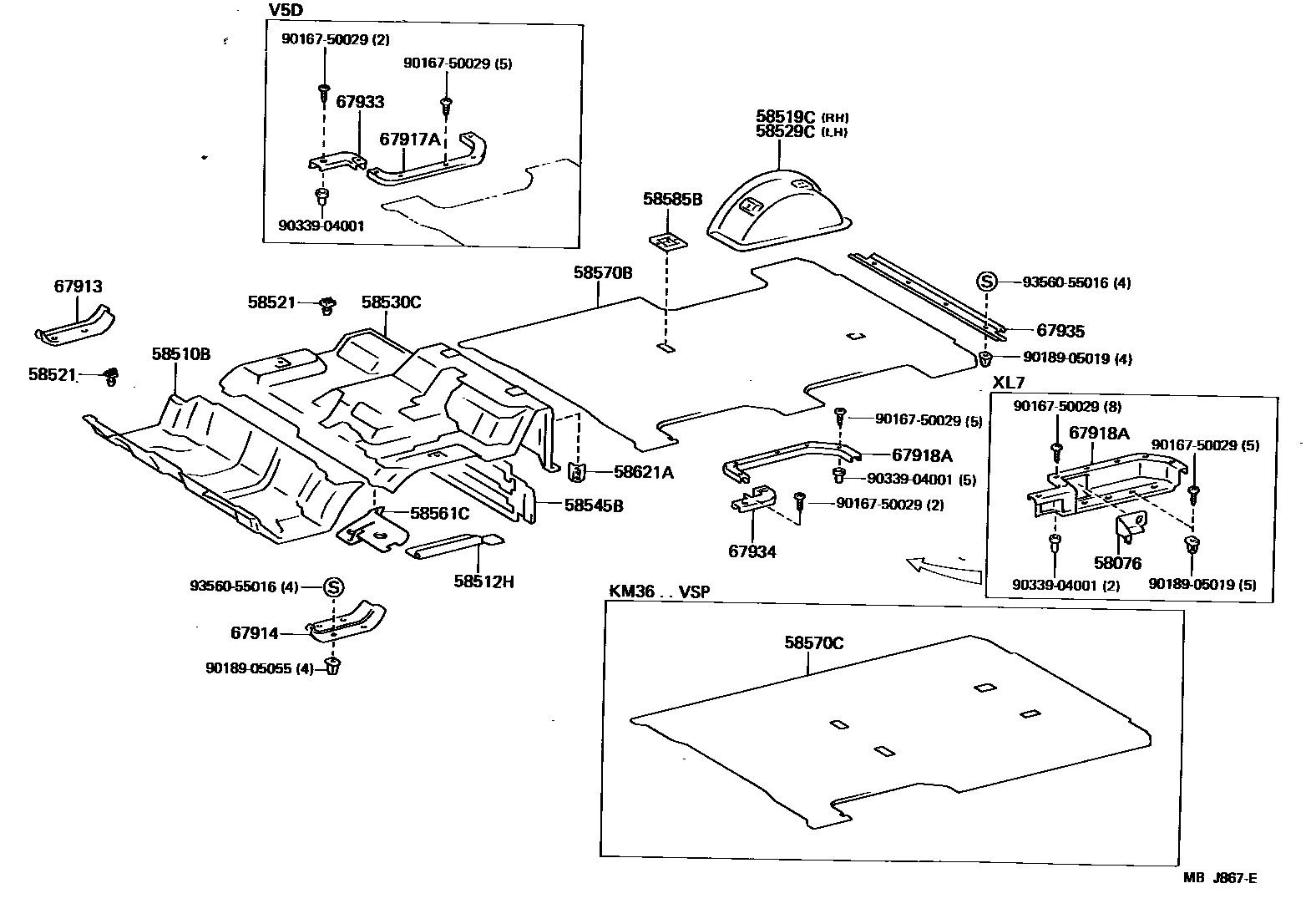

FLOOR MAT & SILENCER PAD

0001 1 0002 1

58076COVER SUB-ASSY, JACK BOX HOLE

main58076-95700-04iCM30,40,KM30,YM30,40..GXL,SUC,XL7198509-198608

BLUE,BLUE,TRIM4#,8#

sub58076-95700

main58076-95700-06iCM30,40,KM30,YM30,40..FXV,GXL,SUC198509-198608

BROWN,BROWN,TRIM4#

sub58076-95700

main58076-95701-04iCM30,40,KM30,YM30,40..GXL,SCA,SUC,XL7198608-198808

BLUE,BLUE,TRIM4#,8#

sub58076-95701

main58076-95701-06iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198608-198808

BROWN,BROWN,TRIM4#

sub58076-95701

58510BMAT, FRONT FLOOR, FRONT

main58510-95700-04iCM30..SW;CM35,36,41..VSG198509-198808

BLUE,BLUE,TRIM4#,8#

sub58510-95700

main58510-95700-06iCM35,36,41198509-198808

BROWN,BROWN,TRIM4#

sub58510-95700

main58510-95701-04iCM30,40,YM40..DLX,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

main58510-95701-06iKM31,36..SUP198509-198808

BROWN,BROWN,TRIM4#

main58510-95706-04iKM35,36..VSG..DLX198509-198808

BLUE,BLUE,TRIM4#,8#

sub58510-95706

main58510-95706-06iKM35,36..DLX198509-198808

BROWN,BROWN,TRIM4#

sub58510-95706

main58510-95707-04iKM30..DLX198509-198808

BLUE,BLUE,TRIM4#,8#

58512HMAT, FLOOR, FRONT LH

main58512-95703-04iCM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

sub58512-95703

main58512-95703-06iCM35,36,41,KM31,35,36198509-198808

BROWN,BROWN,TRIM4#

sub58512-95703

main58512-95703-06iCM30,40,KM30,YM30,40..FXV,GXL,SUC198511-198808

BROWN

sub58512-95703

58519CCARPET, REAR WHEEL HOUSE, RH

main58519-95705-04iKM30..SCA198608-198808

BLUE,BLUE,TRIM4#,8#

main58519-95705-06iKM30..SCA198608-198808

BROWN,BROWN,TRIM4#

main58580-95700-04iCM30,40,YM30,40..GXL198509-198808

BLUE,BLUE,TRIM4#,8#

main58580-95700-06iCM30,40,YM30,40..GXL198509-198808

BROWN,BROWN,TRIM4#

main58580-95701-06iCM30,40,YM30,40..FXV198509-198808

BROWN,BROWN,TRIM4#

main62613-95710-14iCM30,KM30..SUC198509-198808

BLUE,BLUE,TRIM4#,8#

sub62613-95710

main62613-95710-16iCM30,KM30..SUC198509-198808

BROWN,BROWN,TRIM4#

sub62613-95710

main62613-95711-04iCM30,40,KM30,YM40..XL7198509-198808

BLUE,BLUE,TRIM4#,8#

sub62613-95711

58521HOOK, MALE, NO.1

main90530-18002iCM3#,4#,KM3#,YM30,40198509-198808

58529CCARPET, REAR WHEEL HOUSE, LH

main58519-95705-04iKM30..SCA198608-198808

BLUE,BLUE,TRIM4#,8#

main58519-95705-06iKM30..SCA198608-198808

BROWN,BROWN,TRIM4#

main58590-95700-04iCM30,40,YM30,40..GXL198509-198808

BLUE,BLUE,TRIM4#,8#

main58590-95700-06iCM30,40,YM30,40..GXL198509-198808

BROWN,BROWN,TRIM4#

main58590-95701-06iCM30,40,YM30,40..FXV198509-198808

BROWN,BROWN,TRIM4#

main62614-95710-14iCM30,KM30..SUC198509-198808

BLUE,BLUE,TRIM4#,8#

sub62614-95710

main62614-95710-16iCM30,KM30..SUC198509-198808

BROWN,BROWN,TRIM4#

sub62614-95710

main62614-95711-04iCM30,40,KM30,YM40..XL7198509-198808

BLUE,BLUE,TRIM4#,8#

sub62614-95711

58530CMAT, FRONT FLOOR, REAR

main58530-95744-04iKM35,36..V1..VSG198509-198808

BLUE,BLUE,TRIM4#,8#

main58530-95744-06iKM35,36..V1198509-198808

BROWN,BROWN,TRIM4#

main58530-95745-04iKM35..MRF198509-198808

BLUE,BLUE,TRIM4#,8#

main58530-95745-06iKM35,36..MRF..DLX198509-198808

BROWN,BROWN,TRIM4#

main58530-95746-04iKM30..(3FC,4F)..(SW,XL7)198509-198808

BLUE,BLUE,TRIM4#,8#

main58530-95747-04iKM30..4H198509-198808

BLUE,BLUE,TRIM4#,8#

main58530-95748-04iKM31198509-198808

BLUE,BLUE,TRIM4#,8#

main58530-95748-06iKM31198509-198808

BROWN,BROWN,TRIM4#

main58530-95749-04iKM36..SUP198509-198808

BLUE,BLUE,TRIM4#,8#

main58530-95749-06iKM36..SUP198509-198808

BROWN,BROWN,TRIM4#

main58530-95759-04iCM30,40,YM40..DLX,SW,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

sub58530-95759

main58530-95760-04iCM35,36,41..V1..VSG198509-198808

BLUE,BLUE,TRIM4#,8#

main58530-95760-06iCM35,36,41..V1198509-198808

BROWN,BROWN,TRIM4#

main58530-95761-04iCM35..MRF198509-198808

BLUE,BLUE,TRIM4#,8#

main58530-95761-06iCM35..MRF198509-198808

BROWN,BROWN,TRIM4#

main58530-95764-04iCM30,40..DLX,SW,XL7198509-198808

COLD SPEC,BLUE,BLUE,TRIM4#,8#

main58530-95765-04iCM35,36,41..V1..VSG198509-198808

COLD SPEC,BLUE,BLUE,TRIM4#,8#

main58530-95765-06iCM35,36,41..V1198509-198808

COLD SPEC,BROWN,BROWN,TRIM4#

main58530-95766-04iCM35..MRF198509-198808

COLD SPEC,BLUE,BLUE,TRIM4#,8#

main58530-95766-06iCM35..MRF198509-198808

COLD SPEC,BROWN,BROWN,TRIM4#

main58530-95776-06iCM35..VSP198509-198808

W/O ROOM SEPARATOR,BROWN,BROWN,TRIM4#

58545BSILENCER, HEADER PANEL

main58545-95714iKM30,31;KM35,36..V1198509-198808

main58545-95715iKM35,36..MRF198509-198808

main58545-95716iCM35..V1;CM30,36,YM30198509-198808

main58545-95717iCM35..MRF198509-198808

main58545-95718iCM4#,YM40198510-198808

58561CSILENCER, FRONT FLOOR, NO.1

main58561-95700iCM30,4#,KM30,YM30,40..3FC,4F,4FC,5F198509-198808

main58561-95701iCM4#,YM40198601-198808

58570BMAT ASSY, REAR FLOOR

main58570-95700-04iCM35,36,41..V1..V4D..05S198509-198608

BLUE,BLUE,TRIM4#,8#

main58570-95700-06iCM35,36,41..V1..V4D..05S198509-198608

BROWN,BROWN,TRIM4#

main58570-95701-04iCM35..V4D..MRF..05S198509-198608

BLUE,BLUE,TRIM4#,8#

main58570-95701-06iCM35..V4D..MRF..05S198509-198608

BROWN,BROWN,TRIM4#

main58570-95702-04iCM35,41..V1..V5D..05S198509-198608

BLUE,BLUE,TRIM4#,8#

main58570-95702-06iCM35,41..V1..V5D..05S198509-198608

BROWN,BROWN,TRIM4#

main58570-95703-04iCM35..V5D..MRF..05S198509-198608

BLUE,BLUE,TRIM4#,8#

main58570-95703-06iCM35..V5D..MRF..05S198509-198608

BROWN,BROWN,TRIM4#

main58570-95705-04iKM35,36..V1..V4D..06S198509-198808

BLUE,BLUE,TRIM4#,8#

main58570-95705-06iKM31..V4D198509-198808

BROWN,BROWN,TRIM4#

main58570-95706-04iKM36..V4D..SUP198509-198808

BLUE,BLUE,TRIM4#,8#

main58570-95706-06iKM36..V4D..SUP198509-198808

BROWN,BROWN,TRIM4#

main58570-95707-04iKM35,36..V1..V5D..06S198509-198808

BLUE,BLUE,TRIM4#,8#

main58570-95707-06iKM31..V5D198509-198808

BROWN,BROWN,TRIM4#

main58570-95708-04iKM35..V5D..MRF..06S198509-198808

BLUE,BLUE,TRIM4#,8#

main58570-95708-06iKM36..V5D..SUP198509-198808

BROWN,BROWN,TRIM4#

main58570-95709-04iCM30..DLX198509-198608

W/RR HEATER,BLUE,BLUE,TRIM4#,8#

main58570-95712-04iKM35..V5D..MRF..03S198509-198808

BLUE,BLUE,TRIM4#,8#

main58570-95712-06iKM35..V5D..MRF..03S198509-198808

BROWN,BROWN,TRIM4#

main58570-95713-04iCM30,40,YM40..XL7198509-198608

BLUE,BLUE,TRIM4#,8#

main58570-95714-04iCM30,40,YM40..SW198509-198808

BLUE,BLUE,TRIM4#,8#

main58570-95715-04iCM35,41..V1..V4D..VSG..02S198509-198808

BLUE,BLUE,TRIM4#,8#

main58570-95715-06iCM35,41..V1..V4D..02S198509-198808

BROWN,BROWN,TRIM4#

main58570-95716-04iCM35..V4D..MRF..02S198509-198808

BLUE,BLUE,TRIM4#,8#

main58570-95716-06iCM35..V4D..MRF..02S198509-198808

BROWN,BROWN,TRIM4#

main58570-95718-04iCM35..V5D..MRF..02S198509-198808

BLUE,BLUE,TRIM4#,8#

main58570-95718-06iCM35..V5D..MRF..02S198509-198808

BROWN,BROWN,TRIM4#

main58570-95724-04iKM30..DLX198509-198608

W/RR HEATER,BLUE,BLUE,TRIM4#,8#

main58570-95725-04iKM30..DLX198509-198608

BLUE,BLUE,TRIM4#,8#

main58570-95726-04iKM30..XL7198509-198608

BLUE,BLUE,TRIM4#,8#

main58570-95727-04iKM30..SW198509-198808

BLUE,BLUE,TRIM4#,8#

main58570-95728-04iKM35,36..V1..V4D..03S198509-198808

BLUE,BLUE,TRIM4#,8#

main58570-95728-06iKM35,36..V1..V4D..03S198509-198808

BROWN,BROWN,TRIM4#

main58570-95729-04iKM35..V4D..MRF..03S198509-198808

BLUE,BLUE,TRIM4#,8#

main58570-95729-06iKM35..V4D..MRF..03S198509-198808

BROWN,BROWN,TRIM4#

main58570-95730-04iKM35..V1..V5D..03S198509-198808

BLUE,BLUE,TRIM4#,8#

main58570-95730-06iKM35..V1..V5D..03S198509-198808

BROWN,BROWN,TRIM4#

main58570-95742-04iCM30..DLX198509-198608

BLUE,BLUE,TRIM4#,8#

main58570-95757-04iCM35,41..V1..V5D..02S198509-198808

BLUE,BLUE,TRIM4#,8#

main58570-95757-06iCM35,41..V1..V5D..02S198509-198808

BROWN,BROWN,TRIM4#

main58570-95759-04iCM35,36,41..V1..V4D..05S198608-198808

BLUE,BLUE,TRIM4#,8#

main58570-95759-06iCM35,36,41..V1..V4D..05S198608-198808

BROWN,BROWN,TRIM4#

main58570-95760-04iCM35,36,41..V1..V5D..05S198608-198808

BLUE,BLUE,TRIM4#,8#

main58570-95760-06iCM35,36,41..V1..V5D..05S198608-198808

BROWN,BROWN,TRIM4#

main58570-95761-04iCM35..V4D..MRF..05S198608-198808

BLUE,BLUE,TRIM4#,8#

main58570-95761-06iCM35..V4D..MRF..05S198608-198808

BROWN,BROWN,TRIM4#

main58570-95762-04iCM35..V5D..MRF..05S198608-198808

BLUE,BLUE,TRIM4#,8#

main58570-95762-06iCM35..V5D..MRF..05S198608-198808

BROWN,BROWN,TRIM4#

main58570-95764-04iKM30..DLX198608-198808

BLUE,BLUE,TRIM4#,8#

main58570-95765-04iKM30..DLX198608-198808

W/RR HEATER,BLUE,BLUE,TRIM4#,8#

main58570-95766-04iCM30..DLX198608-198808

BLUE,BLUE,TRIM4#,8#

main58570-95767-04iCM30..DLX198608-198808

W/RR HEATER,BLUE,BLUE,TRIM4#,8#

main58570-95768-04iKM30..XL7198608-198808

BLUE,BLUE,TRIM4#,8#

main58570-95769-04iCM30,40,YM40..XL7198608-198808

BLUE,BLUE,TRIM4#,8#

58570CCARPET ASSY, REAR FLOOR

main58570-95732-04iCM30,40,YM30,40..GXL198509-198808

BLUE,BLUE,TRIM4#,8#

main58570-95732-06iCM30,40,YM30,40..GXL198509-198808

BROWN,BROWN,TRIM4#

main58570-95739-04iKM30..SUC198509-198808

BLUE,BLUE,TRIM4#,8#

main58570-95739-06iKM30..SUC198509-198808

BROWN,BROWN,TRIM4#

main58570-95740-06iKM36..MRF..03S198509-198808

BROWN,BROWN,TRIM4#

main58570-95741-06iCM30,40,YM30,40..FXV198509-198808

BROWN,BROWN,TRIM4#

main58570-95763-04iKM30..SCA198608-198808

BLUE,BLUE,TRIM4#,8#

main58570-95763-06iKM30..SCA198608-198808

BROWN,BROWN,TRIM4#

58585BCOVER, REAR FLOOR SEAT LOCK

main58585-95705-04iCM30,40,KM30,YM40..XL7198509-198808

BLUE,BLUE,TRIM4#,8#

main58585-95706-04iCM30,40,KM30,YM30,40..GXL,SUC198509-198808

BLUE,BLUE,TRIM4#,8#

main58585-95706-06iCM30,40,KM30,YM30,40..GXL,SUC198509-198808

BROWN,BROWN,TRIM4#

main58585-95707-06iCM30,40,YM30,40..FXV198509-198808

BROWN,BROWN,TRIM4#

58621APLATE, MAT SET, NO.1 LH

main58621-95706iCM35,41,KM31,35,36..V5D198509-198808

67913PLATE, FRONT DOOR SCUFF, RH

main67913-95702-04iCM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

sub67913-27010

main67913-95702-06iCM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP198509-198808

BROWN,BROWN,TRIM4#

sub67913-27010

67914PLATE, FRONT DOOR SCUFF, LH

main67914-95702-04iCM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

sub67914-27010

main67914-95702-06iCM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP198509-198808

BROWN,BROWN,TRIM4#

sub67914-27010

67917APLATE, REAR DOOR SCUFF, RH

main67917-95705iCM35,36,41,KM31,35,36..V5D198509-198808

67918APLATE, REAR DOOR SCUFF, LH

main67907-95700-04iCM30,40,KM30,YM30,40..GXL,SUC,XL7198509-198608

BLUE,BLUE,TRIM4#,8#

sub67918-95704

sub58076-95701

main67907-95700-06iCM30,40,KM30,YM30,40..FXV,GXL,SUC198509-198608

BROWN,BROWN,TRIM4#

sub67918-95704

sub58076-95701

main67918-95700iCM3#,4#,KM3#,YM40..DLX,SUP,SW198509-198808

main67918-95704-04iCM30,40,KM30,YM30,40..GXL,SCA,SUC,XL7198608-198808

BLUE,BLUE,TRIM4#,8#

main67918-95704-06iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198608-198808

BROWN,BROWN,TRIM4#

67933PLATE, QUARTER SCUFF, INNER RH

main67933-95700-04iCM35,36,41,KM31,35,36..V5D198509-198808

BLUE,BLUE,TRIM4#,8#

main67933-95700-06iCM35,36,41,KM31,35,36..V5D198509-198808

BROWN,BROWN,TRIM4#

67934PLATE, QUARTER SCUFF, INSIDE LH

main67934-95700-04iCM35,KM35,36..VSG;CM30,36,4#,KM30,31,YM40..DLX,SUP,SW198509-198808

BLUE,BLUE,TRIM4#,8#

main67934-95700-06iCM35,36,41,KM31,35,36198509-198808

BROWN,BROWN,TRIM4#

67935PLATE, BACK DOOR SCUFF

main67935-95703iCM35,KM35,36..V1;CM30,36,4#,KM30,31,YM40..DLX,SUP,SW,XL7198509-198808

main67935-95704iCM35,KM35,36..MRF198509-198808

main67935-95705iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

9016750029

main90167-50029

9018905019

main90189-05019

9018905055

main90189-05055

9018905819

main90189-05819

9033904001

main90339-04001

9356055016

main93560-55016

26 parts on this diagram · 2 diagrams in section
