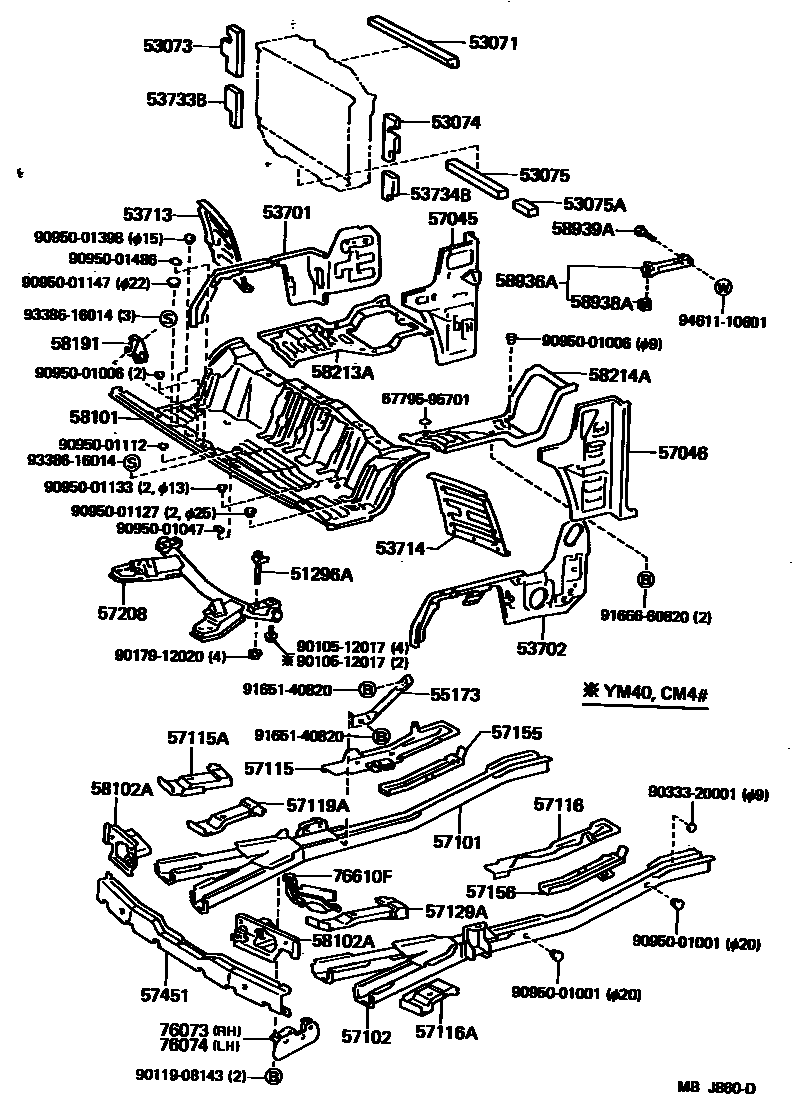

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

51296ABOLT, ENGINE FRONT SUPPORT MEMBER

main51296-95701×4iCM3#,4#,KM3#,YM30,40198509-198808

53071SHUTTER SUB-ASSY, HOT AIR, UPPER

main53735-95700iCM3#,KM3#,YM30198601-198808

main53735-95701iCM4#,YM40198601-198808

53073SHUTTER SUB-ASSY, HOT AIR SIDE, RH

main53727-95707iCM35..V5D198608-198808

main53727-95708iCM3#,YM30198509-198808

main53727-95709iCM4#,YM40198510-198808

53074SHUTTER SUB-ASSY, HOT AIR SIDE, LH

main53728-95704iCM3#,KM3#,YM30198509-198808

main53728-95705iCM4#,YM40198510-198808

53075SHUTTER SUB-ASSY, HOT AIR, LOWER

main53737-95701iCM3#,KM3#,YM30198509-198808

main53737-95702iCM4#,YM40198510-198808

53075ASHUTTER SUB-ASSY, HOT AIR SIDE, A RH

main53733-95701×2iCM3#,KM3#,YM30198509-198808

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-95711iYM30,40198509-198808

sub53701-95722

main53701-95712iCM3#,4#198509-198808

main53701-95713iKM3#198509-198808

sub53701-95721

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-95713iKM3#198509-198808

sub53702-95722

main53702-95714iCM3#,4#198509-198808

sub53702-95723

main53702-95715iYM30,40198509-198808

sub53702-95724

53713APRON, FENDER SIDE, RH

main53707-95701iCM3#,4#,KM3#,YM30,40198509-198808

53714APRON, FENDER SIDE, LH

main53708-95702iKM35198509-198808

sub90333-25001

main53708-95704iKM35198509-198808

COLD SPEC

53733BSHUTTER, HOT AIR SIDE, A RH

main53733-95700iYM40..FXV198601-198808

W/*ODAC

53734BSHUTTER, HOT AIR SIDE, A LH

main53734-95700iYM40..FXV198601-198808

W/*ODAC

55173STAY, PARKING BRAKE

main55173-95704iCM35,KM35,36..MRF198509-198808

57045PLATE SUB-ASSY, FLOOR SIDE RAIL, RH

main57045-95709iCM30,40,KM30,YM30,40;CM35,36,41,KM31,35,36..V4D198509-198808

sub57045-95705

main57045-95710iCM35,41,KM31,35,36..V5D198509-198808

sub57045-95707

57046PLATE SUB-ASSY, FLOOR SIDE RAIL, LH

main57046-95711iCM3#,4#,KM3#,YM30,40198509-198808

sub57046-95707

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-95707iCM40,YM40;CM41..V4D198510-198808

sub57101-95725

sub90948-02123

main57101-95708iCM41..V5D198510-198808

sub57101-95726

sub90948-02123

main57101-95709iCM30,KM30,YM30198509-198608

main57101-95710iCM35,KM31,35,36..V1..V5D198509-198608

main57101-95711iCM35,KM35,36..MRF198509-198608

main57101-95716iCM30,KM30,YM30198608-198808

sub57101-95722

sub90948-02123

main57101-95717iCM35,36,KM31,35,36..V1..V5D198608-198808

sub57101-95723

sub90948-02123

main57101-95718iCM35,KM35,36..MRF198608-198808

sub57101-95724

sub90948-02123

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-95703iYM40198510-198808

sub57102-95718

sub90948-02123

main57102-95704iCM4#198510-198808

sub57102-95719

sub90948-02123

main57102-95705iCM35,KM35,36..V1;CM30,36,KM30,31,YM30198509-198608

main57102-95707iCM35,KM35,36..MRF198509-198608

main57102-95711iCM35,KM35,36..V1;CM30,36,KM30,31,YM30198608-198808

sub57102-95716

sub90948-02123

main57102-95713iCM35,KM35,36..MRF198608-198808

sub57102-95717

sub90948-02123

57115PLATE SUB-ASSY, FRONT SIDE MEMBER, CENTER RH

main57105-95704iCM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40198509-198808

main57105-95705iCM35,KM35,36..MRF198509-198808

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-95703iCM3#,4#,KM3#,YM30,40198509-198808

57116PLATE SUB-ASSY, FRONT SIDE MEMBER, CENTER LH

main57106-95702iCM35,KM35,36..MRF198509-198808

main57148-95702iCM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40198509-198808

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-95703iCM3#,4#,KM3#,YM30,40198509-198808

57119APLATE, FRONT SIDE MEMBER, FRONT RH

main57119-95702iCM3#,4#,KM3#,YM30,40198509-198808

57129APLATE, FRONT SIDE MEMBER, FRONT LH

main57129-95702iCM3#,4#,KM3#,YM30,40198509-198808

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-95701iCM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40198509-198808

main57155-95702iCM35,KM35,36..MRF198509-198808

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57044-95702iCM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40198509-198808

sub57044-95703

main57044-95705iCM35,KM35,36..MRF198701-198808

main57156-95702iCM35,KM35,36..MRF198509-198701

57208MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

main51021-95700iCM3#198509-198708

main51021-95701iKM3#198509-198708

main51021-95702iYM30198509-198708

main51021-95704iYM40198510-198708

main51021-95705iCM4#198510-198708

main51021-95706iKM3#198708-198808

main51021-95707iYM30198708-198808

main51021-95708iCM3#198708-198808

main51021-95709iYM40198708-198808

main51021-95710iCM4#198708-198808

57451MEMBER, FRONT FLOOR CROSS

main57408-95705iCM3#,4#,KM3#,YM30,40198509-198808

58101PAN SUB-ASSY, FRONT FLOOR

main58101-95744iCM3#,KM30,31,36..(3FC,4F,4FC,5F)..(DLX,SCA,SUC,SUP,SW,XL7)198509-198808

sub58101-27250

main58101-95745iCM30,YM30..FXV,GXL198509-198808

sub58101-27260

main58101-95746iKM30,35,36..4H198509-198808

sub58101-27270

main58101-95754iCM4#,YM40..DLX,SW,XL7198510-198808

sub58101-27310

main58101-95755iCM40,YM40..FXV,GXL198510-198808

sub58101-27320

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-95700iCM3#,4#,KM3#,YM30,40198509-198808

RH

main58103-95704iCM3#,4#,KM3#,YM30,40198509-198808

LH

58191FOOTREST, FRONT FLOOR

main58191-87001iCM30,40,YM30,40..FXV,GXL198509-198808

58213APANEL, SEAT FLOOR, RH

main58201-95718iCM3#,4#,KM3#,YM30,40198509-198808

sub58201-27030

58214APANEL, SEAT FLOOR, LH

main58214-95708iCM3#,4#,KM3#,YM30,40198509-198808

sub58202-27020

58936ABAND, ENGINE SERVICE HOLE COVER SUPPORT

main58402-95714-04iCM30,40,KM30,YM30,40..DLX,GXL,SCA,SUC,SW,XL7198509-198808

BLUE,BLUE,TRIM4#,8#

main58402-95714-06iCM35,36,41,KM31..HRF,MRF198509-198808

BROWN,BROWN,TRIM4#

main58402-95715-04iCM35,36,41,KM31..VSG..SRF198509-198808

BLUE,BLUE,TRIM4#,8#

main58402-95715-06iCM35,36,41,KM31..SRF198509-198808

BROWN,BROWN,TRIM4#

58938ACUSHION, ENGINE SERVICE HOLE COVER BAND

main58938-87001iKM36..SUP198509-198608

58939ASCREW, ENGINE SERVICE HOLE COVER SUPPORT BAND

main58939-95J00iKM36..SUP198509-198808

76073PROTECTOR SUB-ASSY, STEERING MAIN SHAFT, RH

main76073-95700iCM4#,YM40198510-198808

76074PROTECTOR SUB-ASSY, STEERING MAIN SHAFT, LH

main76073-95700iCM4#,YM40198510-198808

76610FPROTECTOR ASSY, STEERING MAIN SHAFT, RH

main76610-95700iCM4#,YM40198510-198808

6779595701BUMPER, FRONT DOOR SWITCH

main67795-95701

9003320001

main90033-20001

9010512017

main90105-12017

9011908143

main90119-08143

9017912020

main90179-12020

9095001001

main90950-01001

9095001006

main90950-01006

9095001047

main90950-01047

9095001112

main90950-01112

9095001127

main90950-01127

9095001133

main90950-01133

9095001147

main90950-01147

9095001398

main90950-01398

9095001486

main90950-01486

9165140820

main91651-40820

9166660820

main91666-60820

9338616014

main93386-16014

9461110601

main94611-10601

56 parts on this diagram · 2 diagrams in section
