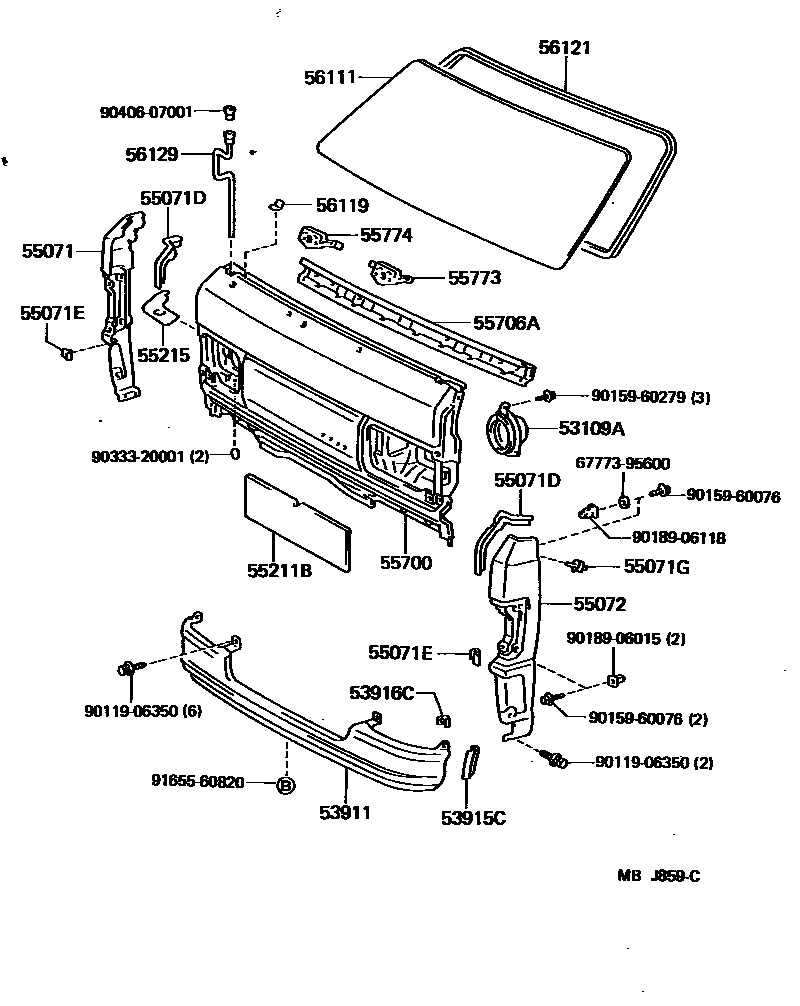

FRONT PANEL & WINDSHIELD GLASS

53109ACOVER SUB-ASSY, HEADLAMP SERVICE HOLE

main53109-95700iCM3#,4#,KM3#,YM30,40198509-198808

53911PANEL, FRONT VALANCE

main53901-95702iCM3#,4#,KM3#,YM30,40198509-198808

53915CPROTECTOR, LOWER SHROUD

main53915-95704iCM3#,4#,KM3#,YM30,40198509-198808

53916CPROTECTOR, LOWER SHROUD, NO.2

main53916-95702iCM3#,4#,KM3#,YM30,40198509-198808

55071PANEL SUB-ASSY, FRONT SIDE, RH

main53801-95706iCM3#,4#,KM3#,YM30,40198509-198808

55071DPROTECTOR, FRONT SIDE PANEL, NO.2

main53823-95702iCM3#,4#,KM3#,YM30,40198509-198701

RH

main53823-95703iCM3#,4#,KM3#,YM30,40198701-198808

RH

main53824-95702iCM3#,4#,KM3#,YM30,40198509-198701

LH

main53824-95703iCM3#,4#,KM3#,YM30,40198701-198808

LH

55071EPROTECTOR, FRONT SIDE PANEL, NO.3

main53828-95702iCM3#,4#,KM3#,YM30,40198509-198808

55071GRETAINER, FRONT SIDE PANEL SET

main53867-95700iCM3#,4#,KM3#,YM30,40198509-198808

55072PANEL SUB-ASSY, FRONT SIDE, LH

main53802-95708iCM3#,4#,KM3#,YM30,40198509-198808

sub53802-95713

main53802-95709iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

W/DOOR MIRROR

55211BSILENCER, FRONT PANEL

main55211-95701iCM3#,4#,KM3#,YM30,40198509-198808

55215PAD, HEADLAMP COVER SILENCER, RH

main55215-95700iCM3#,4#198509-198808

55700PANEL ASSY, FRONT

main55701-95729iCM3#,4#,KM3#,YM40..DLX,SUP,SW198509-198807

sub55701-95745

sub55701-95748

main55701-95731iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC,XL7198509-198808

sub55701-95754

main55701-95745iCM3#,4#,KM3#,YM40..DLX,SUP,SW198807-198808

sub55701-95754

55706AREINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER

main55706-95706iCM3#,4#,KM3#,YM30,40198509-198808

55773RETAINER, WIPER SHAFT, CENTER

main55773-95704iCM3#,4#,KM3#,YM30,40198509-198808

sub55773-95705

55774RETAINER, WIPER SHAFT SIDE

main55774-95704iCM3#,4#,KM3#,YM30,40198509-198808

sub55774-95706

56111GLASS, WINDSHIELD

main56111-95714iCM3#,4#,KM30,35,36,YM40..DLX,SW198509-198808

sub56111-95716

main56111-95715iCM30,40,YM30,40..GXL198509-198808

sub56111-27010

main56111-95716iCM30,40,KM30,31,36,YM30,40..GXL,SCA,SUC,SUP,XL7198509-198808

main56111-95718iCM30,40,YM30,40..FXV,GXL198509-198808

56119SEAL, WINDSHIELD GLASS

main56119-95700iCM3#,4#,KM3#,YM30,40198509-198808

56121WEATHERSTRIP, WINDSHIELD

main56121-95708iCM3#,4#,KM3#,YM40..DLX,SUP,SW,XL7198509-198808

sub56121-27010

main56121-95709iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

sub56121-27020

56129HOSE, WINDSHIELD DRAIN

main56129-95700iCM3#,4#,KM3#,YM30,40198509-198808

6777395600

main67773-95600

9011906350

main90119-06350

9015960076

main90159-60076

9015960279

main90159-60279

9018906015

main90189-06015

9018906118

main90189-06118

9033320001

main90333-20001

9040607001

main90406-07001

9165560820

main91655-60820

28 parts on this diagram · 1 diagram in section
