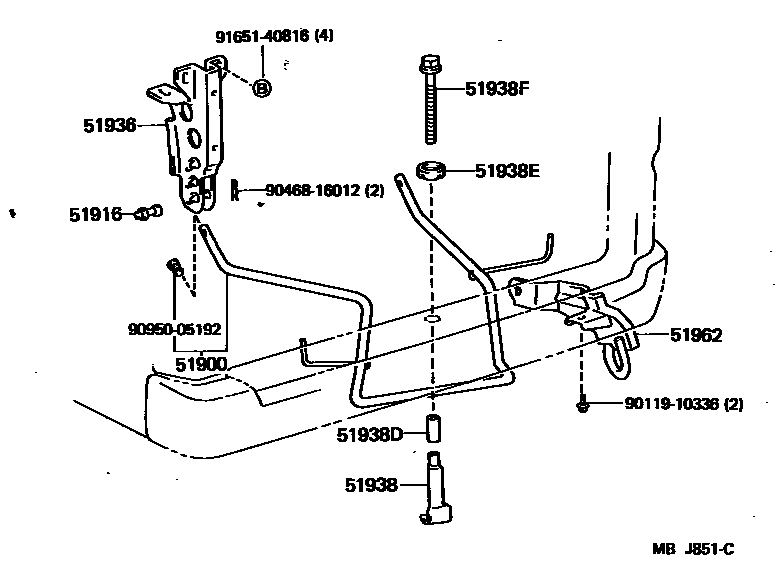

SPARE WHEEL CARRIER

0001 1 0002 1

51900CARRIER ASSY, SPARE WHEEL

main51900-27100iCM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40198509-198808

main51903-27030iCM35,KM35,36..MRF198509-198808

51916PIN, SPARE TIRE CARRIER

main51916-27011iCM35,KM35,36..MRF198509-198808

main51916-27020iCM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40198509-198808

51936BRACKET, SPARE WHEEL CARRIER

main51937-27050iCM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40198509-198803

sub51937-27051

main51937-27051iCM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40198803-198808

main51937-27060iCM35,KM35,36..MRF198509-198808

51938LOCK, SPARE WHEEL CARRIER

main51938-22020iCM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40198509-198511

sub51938-28030

main51938-27050iCM35,KM35,36..MRF198509-198808

main51938-28030iCM35,KM35,36..V1;CM30,36,4#,KM30,31,YM30,40198511-198808

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90387-12032iCM30,4#,KM30,YM30,40..DLX,FXV,GXL,SCA,SUC,XL7198509-198808

main90387-12037iCM30,KM30..SW198509-198808

main90387-14014iCM35,KM35,36..MRF198509-198808

51938EPLATE, SPARE WHEEL CARRIER LOCK

main51937-26010iCM3#,4#,KM3#,YM30,40198509-198808

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main90119-12091iCM35,KM35,36..MRF198509-198808

main90119-12093iCM30,4#,KM30,YM30,40..DLX,FXV,GXL,SCA,SUC,XL7198509-198808

main90119-12102iCM30,KM30..SW198509-198808

51962HOOK, NO.2

main51095-95700iCM30,4#,KM30,31,YM30,40198509-198808

9011910336

main90119-10336

9046816012

main90468-16012

9095005192

main90950-05192

9165140816

main91651-40816

12 parts on this diagram · 2 diagrams in section
