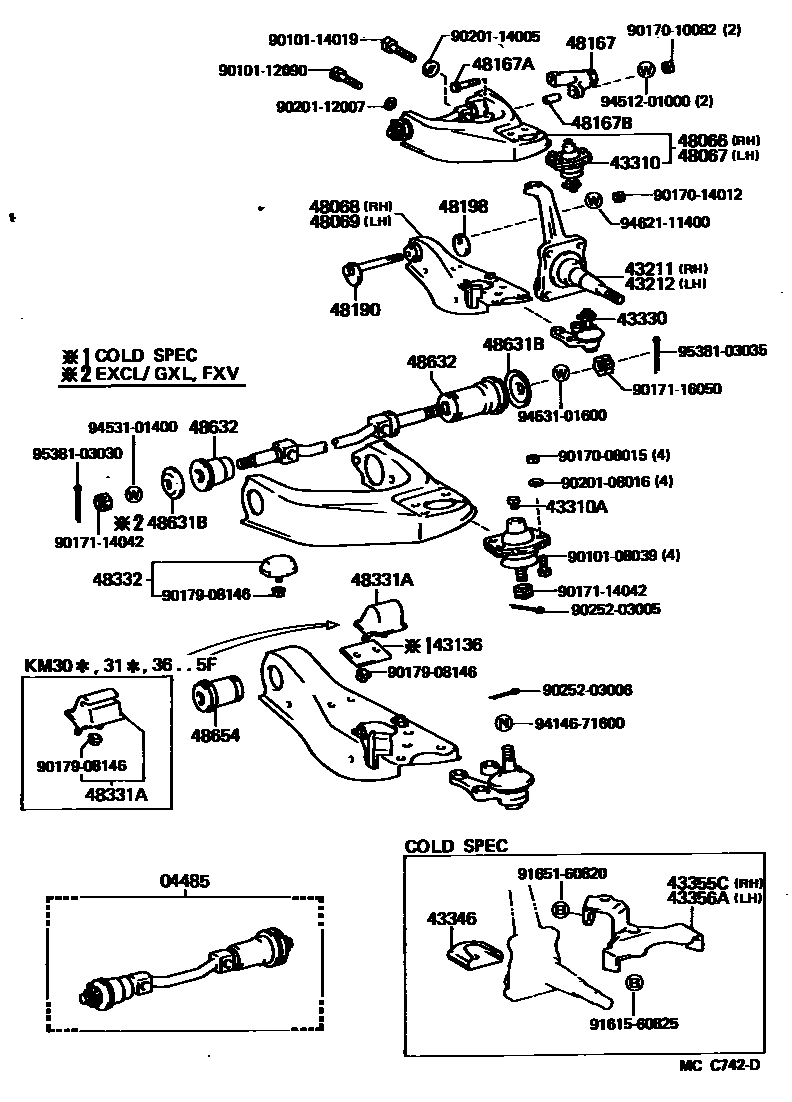

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-28020iCM35,36,KM31,35,36198509-198808

main04485-28021iCM30,YM30..FXV,GXL198509-198808

sub04485-28022

43136SPACER, FRONT SPRING

main43136-27010iCM30,36..4FC198509-198808

43211KNUCKLE, STEERING, RH

main43201-28010iCM4#,YM40198510-198808

main43211-28021iCM3#,KM3#,YM30198509-198808

43212KNUCKLE, STEERING, LH

main43202-28010iCM4#,YM40198510-198808

main43211-28021iCM3#,KM3#,YM30198509-198808

43310JOINT ASSY, UPPER BALL

main43350-29036iCM3#,KM3#,YM30198509-198808

RH

sub43350-29076

main43360-29056iCM3#,KM3#,YM30198509-198808

LH

sub43350-29076

43310APLUG (FOR BALL JOINT)

main90345-06014iCM3#,4#,KM3#,YM30,40198509-198808

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29165iCM4#,YM40198510-198808

RH

sub43330-29166

main43330-29175iCM3#,KM3#,YM30198509-198808

sub43330-29545

main43340-29115iCM4#,YM40198510-198808

LH

sub43340-29116

43346PROTECTOR, LOWER BALL JOINT DUST COVER

main43346-28011iCM3#,KM3#,YM30198509-198808

sub43346-28012

43355CDEFLECTOR, LOWER ARM ICE, RH NO.1

main43355-27030iCM3#,KM3#,YM30198509-198511

sub43355-27031

main43355-27031iCM3#,KM3#,YM30198511-198808

main43355-28060iCM4#,YM40198510-198808

43356ADEFLECTOR, LOWER ARM ICE, LH NO.1

main43355-28060iCM4#,YM40198510-198808

main43356-27020iCM3#,KM3#,YM30198509-198511

sub43356-27021

main43356-27021iCM3#,KM3#,YM30198511-198808

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-28030iCM4#,YM40198510-198808

sub48066-28050

main48610-27020iCM30,YM30..CBR,TD198509-198610

sub48610-27021

main48610-27021iCM30,YM30..FXV,GXL198610-198808

sub48610-28020

main48610-28011iCM3#,KM30,35,36..DLX,SCA,SUC,SW,XL7198509-198610

sub48610-28012

main48610-28012iCM35,36,KM31,35,36198610-198808

sub48610-28013

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-28030iCM4#,YM40198510-198808

sub48067-28050

main48630-27020iCM30,YM30..CBR,TD198509-198610

sub48630-27021

main48630-27021iCM30,YM30..FXV,GXL198610-198808

sub48630-28020

main48630-28011iCM35,36,KM31,35,36198509-198610

sub48630-28012

main48630-28012iCM3#,KM30,35,36..DLX,SCA,SUC,SW,XL7198610-198808

sub48630-28013

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-27050iCM3#,KM3#,YM30198509-198808

sub48068-28040

main48068-28030iCM4#,YM40198510-198801

main48068-28031iCM4#,YM40198801-198808

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-27050iCM3#,KM3#,YM30198509-198808

sub48069-28040

main48069-28030iCM4#,YM40198510-198801

main48069-28031iCM4#,YM40198801-198808

48167ARM, TORQUE

main48106-28010iCM3#,KM3#,YM30198509-198808

main48106-28020iCM4#,YM40198510-198808

48167ABOLT(FOR TORQUE ARM SETTING)

main91121-71085iCM3#,KM3#,YM30198509-198808

48167BTUBE(FOR TORQUE ARM SETTING BOLT)

main90440-17029iCM3#,KM3#,YM30198509-198808

48190CAM ASSY, CAMBER ADJUST

main48190-27010iCM3#,4#,KM3#,YM30,40198509-198808

sub48190-27020

sub90179-14046

48198CAM, CAMBER ADJUST, NO.2

main48198-27010iCM3#,4#,KM3#,YM30,40198509-198808

48331ABUMPER, FRONT SPRING, NO.1

main48331-27030iKM36..SUP198509-198808

main48331-27050iKM36..DLX198509-198808

sub48331-27051

main48331-27060iCM3#198509-198808

sub48331-29055

main48331-28020iCM4#,YM40198510-198808

48332BUMPER, FRONT SPRING, NO.2

main48305-30030iCM3#,4#,KM3#,YM30,40198608-198808

main48305-39015iCM3#,4#,KM3#,YM30,40198509-198608

sub48305-30030

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02048iCM35,36,KM31,35,36198509-198808

RR SIDE

main90948-02049iCM3#,KM30,35,36..DLX,SCA,SUC,SW,XL7198509-198808

FR SIDE

48632BUSH, UPPER ARM

main48632-27010iCM35,36,KM31,35,36198509-198808

FR SIDE

main48632-27020iCM30,YM30..FXV,GXL198509-198808

FR SIDE

sub48632-28030

sub90201-14024

main48635-27030iCM30,YM30..FXV,GXL198509-198808

RR SIDE

sub48635-28040

sub90201-16024

main48635-28010iCM35,36,KM31,35,36198509-198808

RR SIDE

48654BUSH, LOWER ARM

main48061-27010iCM3#,KM3#,YM30198509-198611

sub48061-27011

main48061-27011iCM3#,KM3#,YM30198611-198808

main48061-28020iCM4#,YM40198510-198611

sub48061-28021

main48061-28021iCM4#,YM40198611-198808

9010108039

main90101-08039

9010112090

main90101-12090

9010114019

main90101-14019

9017008015

main90170-08015

9017010082

main90170-10082

9017014012

main90170-14012

9017114042

main90171-14042

9017116050

main90171-16050

9017908146

main90179-08146

9020108016

main90201-08016

9020112007

main90201-12007

9020114005

main90201-14005

9025203005

main90252-03005

9025203006

main90252-03006

9161560825

main91615-60825

9165160820

main91651-60820

9414671600

main94146-71600

9451201000

main94512-01000

9453101400

main94531-01400

9453101600

main94531-01600

9462111400

main94621-11400

9538103030

main95381-03030

9538103035

main95381-03035

47 parts on this diagram · 2 diagrams in section
