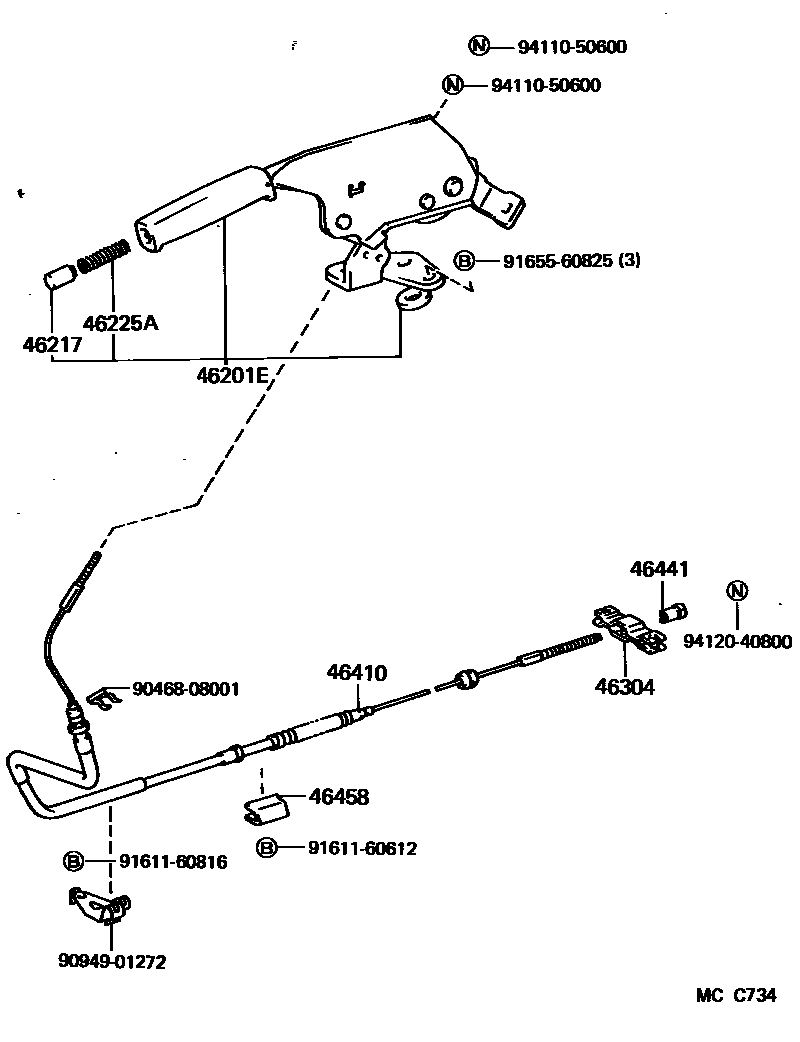

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-27020-04iCM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198509-198803

BLUE,BLUE,TRIM4#,8#

sub46201-27021

main46201-27020-06iCM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP198509-198803

BROWN,BROWN,TRIM4#

sub46201-27021

main46201-27021-04iCM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198803-198808

BLUE,BLUE,TRIM4#,8#

sub46201-27021

main46201-27021-06iCM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP198803-198808

BROWN,BROWN,TRIM4#

sub46201-27021

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-26iCM35,36,KM35,36;CM30,KM30,31,YM30..FXV,GXL,SUC,SUP198509-198510

BROWN,BROWN,TRIM4#

sub46217-10020

sub46217-20020

main46217-10020-34iCM3#,KM3#,YM30..DLX,GXL,SUC,SUP,SW,XL7198509-198510

BLUE,BLUE,TRIM4#,8#

sub46217-10020

sub46217-20020

main46217-12020-04iCM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198803-198808

BLUE,DEEP BLUE,TRIM4#,8#

sub46217-12020

sub46217-16030

main46217-12020-16iCM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP198803-198808

BROWN,BROWN,TRIM4#

sub46217-12020

sub46217-16030

main46217-20020-16iCM35,36,41,KM35,36;CM30,40,KM30,31,YM30,40..FXV,GXL,SCA,SUC,SUP198510-198803

BROWN,DARK BROWN,TRIM4#

sub46217-20020

main46217-20020-24iCM3#,4#,KM3#,YM30,40..DLX,GXL,SCA,SUC,SUP,SW,XL7198510-198803

BLUE,BLUE,TRIM4#,8#

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iCM3#,4#,KM3#,YM30,40198509-198808

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iCM3#,4#,KM3#,YM30,40198509-198808

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-27120iKM3#,YM30,40198509-198808

main46410-27140iCM3#,4#198509-198808

46441NUT, WIRE ADJUSTING, NO.1

main46441-35010iCM3#,4#,KM3#,YM30,40198509-198808

46458RETAINER, CABLE

main46458-28010iCM3#,4#,KM3#,YM30,40198509-198808

9046808001

main90468-08001

9094901272

main90949-01272

9161160612

main91611-60612

9161160816

main91611-60816

9165560825

main91655-60825

9411050600

main94110-50600

9412040800

main94120-40800

14 parts on this diagram · 2 diagrams in section
