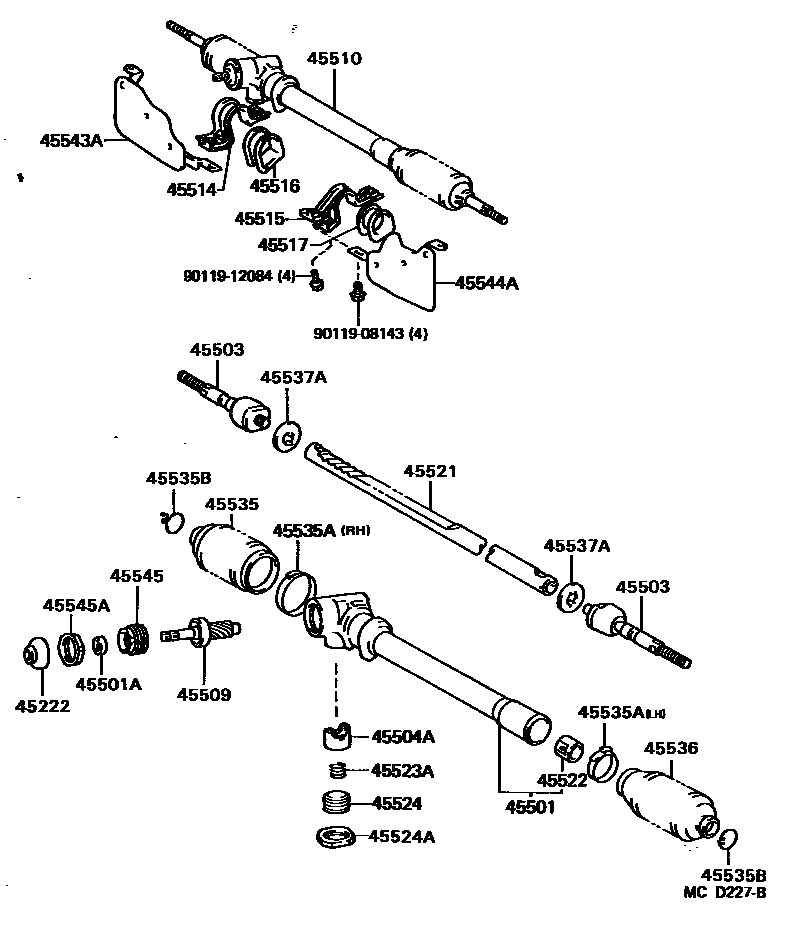

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1

45222COVER, STEERING GEAR DUST

main45222-27020iCM3#,KM3#..CBR,DSL198509-198808

45501HOUSING SUB-ASSY, STEERING RACK

main45501-27010iCM3#,KM3#..CBR,DSL198509-198808

sub45501-27011

45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

main90311-15001iCM3#,KM3#..CBR,DSL198509-198808

sub90311-15002

45503END SUB-ASSY, STEERING RACK

main45503-29095iCM3#,KM3#..CBR,DSL198509-198608

main45503-29135iCM3#,KM3#..DLX,SUP,SW,XL7198608-198808

45504AGUIDE SUB-ASSY, RACK

main45504-27010iCM3#,KM3#..DLX,SUP,SW,XL7198509-198808

45509PINION SUB-ASSY, STEERING

main45509-27010iCM3#,KM3#..DLX,SUP,SW,XL7198509-198808

45510GEAR ASSY, STEERING

main45510-27010iCM3#,KM3#..CBR,DSL198509-198608

sub45510-27011

main45510-27011iCM3#,KM3#..DLX,SUP,SW,XL7198608-198808

sub45510-27030

sub45046-29185

sub90170-14012

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-28010iCM4#,YM40198510-198808

main45514-28020iCM3#,KM3#,YM30198509-198808

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-28010iCM4#,YM40198510-198808

main45515-28020iCM3#,KM3#..DLX,SUC,SUP,SW,XL7198509-198808

main45515-28030iCM3#,KM30,31,36,YM30198509-198808

W/POWER STEERING

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-27010iCM3#,KM3#,YM30198509-198808

main45516-28010iCM4#,YM40198510-198808

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-27010iCM3#,KM3#..DLX,SUC,SUP,SW,XL7198509-198808

main45517-27020iCM3#,KM30,31,36,YM30198509-198808

W/POWER STEERING

main45517-28010iCM4#,YM40198510-198808

45521RACK, STEERING

main45521-27010iCM3#,KM3#..DLX,SUP,SW,XL7198509-198808

45522BUSH, STEERING RACK

main45522-27010iCM3#,KM3#..CBR,DSL198509-198808

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90501-23075iCM3#,KM3#..CBR,DSL198509-198808

45524CAP, STEERING RACK GUIDE SPRING

main45524-16030iCM3#,KM3#..CBR,DSL198509-198808

sub45524-33010

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90179-36002iCM3#,KM3#..DLX,SUP,SW,XL7198509-198808

45535BOOT, STEERING RACK, NO.1

main45535-27010iCM3#,KM3#..CBR,DSL198509-198808

45535ACLAMP(FOR STEERING RACK BOOT)

main90460-42001iCM3#,KM3#..CBR,DSL198509-198808

LH

main90460-56001iCM3#,KM3#..CBR,DSL198509-198808

RH

45535BCLIP(FOR STEERING RACK BOOT)

main90467-18003iCM3#,KM3#..DLX,SUP,SW,XL7198509-198808

45536BOOT, STEERING RACK, NO.2

main45536-27010iCM3#,KM3#..CBR,DSL198509-198808

45537AWASHER, CLAW(FOR STEERING RACK END LOCK)

main90214-14005iCM3#,KM3#..CBR,DSL198509-198808

45543APROTECTOR, STEERING RACK BOOT, RH

main45057-95700iCM3#,KM3#,YM30198509-198808

45544APROTECTOR, STEERING RACK BOOT, LH

main45058-95700iCM3#,KM3#,YM30198509-198808

45545SCREW, PINION BEARING ADJUSTING

main45545-27010iCM3#,KM3#..CBR,DSL198509-198808

45545ANUT(FOR PINION BEARING ADJUSTING SCREW)

main90179-38001iCM3#,KM3#..CBR,DSL198509-198808

9011908143

main90119-08143

9011912084

main90119-12084

27 parts on this diagram · 5 diagrams in section
