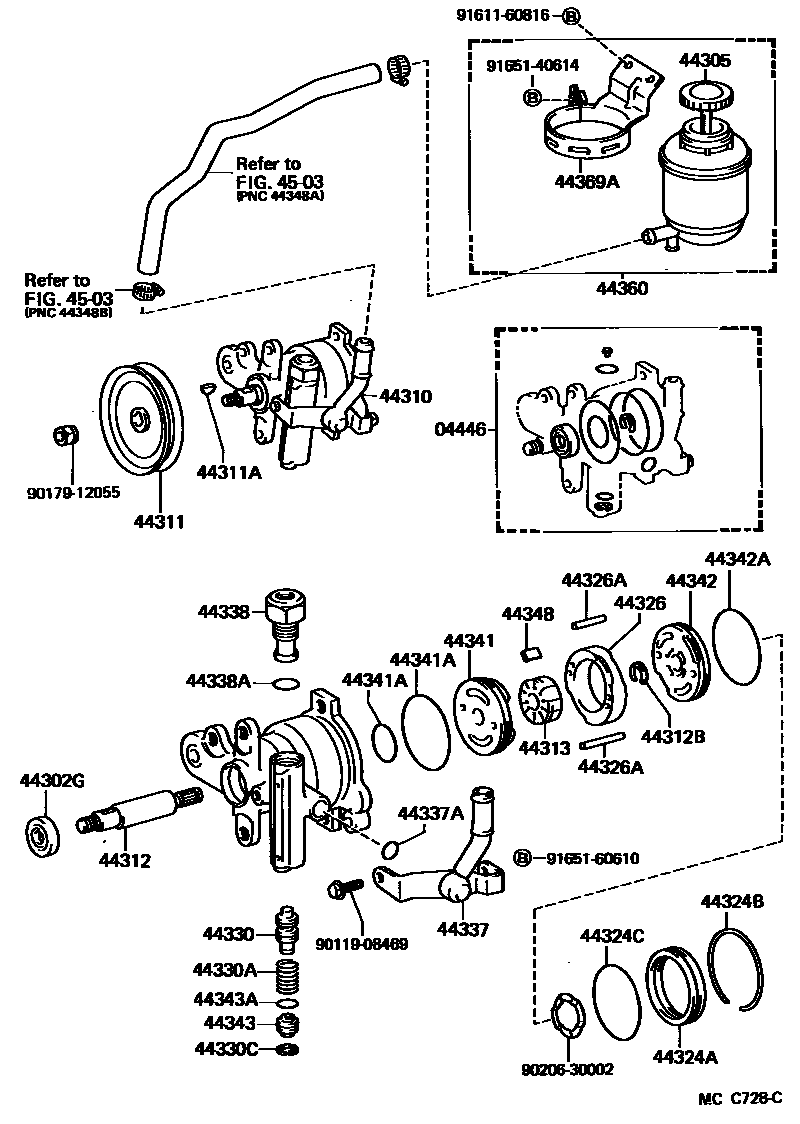

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

04446GASKET KIT, POWER STEERING PUMP

main04446-12020iKM30,31,36198509-198808

sub04446-27010

main04446-35020iCM3#,4#,YM30,40198509-198808

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-14010iCM3#,4#,YM30,40198509-198808

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18007iKM30,31,36198509-198808

main90311-24001iCM3#,4#,YM30,40198509-198808

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iCM4#198510-198808

sub44305-22040

main44305-32010iCM3#,KM30,31,36,YM30,40198509-198808

44310PUMP ASSY, VANE

main44320-27030iKM30,31,36198509-198510

sub44320-27031

main44320-27031iKM30,31,36198510-198808

sub44320-27032

main44320-27050iCM3#,4#198509-198808

sub44320-28090

sub44311-27011

sub90179-12022

main44320-28011iYM30,40198509-198808

44311PULLEY, VANE PUMP

main44311-12010iYM30,40198509-198808

main44311-12060iKM30,31,36198509-198808

main44311-27010iCM3#,4#198509-198808

44311AKEY, VANE PUMP PULLEY

main90280-05008iCM3#,4#,KM30,31,36,YM30,40198509-198808

44312SHAFT, VANE PUMP

main44312-12010iCM3#,4#,YM30,40198509-198808

main44312-12030iKM30,31,36198509-198808

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iKM30,31,36198509-198808

main90520-15001iCM3#,4#,YM30,40198509-198808

44313ROTOR, VANE PUMP

main44313-12010iCM3#,4#,KM30,31,36,YM30,40198509-198808

sub44313-22040

main44313-12020iCM3#,4#,KM30,31,36,YM30,40198509-198808

sub44313-22050

main44313-12030iCM3#,4#,KM30,31,36,YM30,40198509-198808

sub44313-22060

main44313-12040iCM3#,4#,KM30,31,36,YM30,40198509-198808

sub44313-22070

main44313-12050iCM3#,4#,KM30,31,36,YM30,40198509-198808

sub44313-22080

44324AHOUSING, PUMP, REAR

main44324-12031iKM30,31,36198509-198808

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90521-62002iKM30,31,36198509-198808

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-52001iKM30,31,36198509-198808

44326RING, CAM(FOR VANE PUMP)

main44325-12010iCM3#,4#,YM30,40198509-198808

main44325-12020iCM3#,4#,YM30,40198509-198808

main44325-12030iCM3#,4#,YM30,40198509-198808

main44325-12040iCM3#,4#,YM30,40198509-198808

main44325-12050iCM3#,4#,YM30,40198509-198808

main44325-12110iKM30,31,36198509-198808

main44325-12120iKM30,31,36198509-198808

main44325-12130iKM30,31,36198509-198808

main44325-12140iKM30,31,36198509-198808

main44325-12150iKM30,31,36198509-198808

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iKM30,31,36198509-198808

main90250-04049iKM30,31,36198509-198808

main90250-05008iCM3#,4#,YM30,40198509-198808

44330VALVE ASSY, FLOW CONTROL

main44330-12130iCM3#,4#,YM30,40198509-198808

sub44330-12131

main44330-12140iCM3#,4#,YM30,40198509-198808

sub44330-12141

main44330-12150iCM3#,4#,YM30,40198509-198808

sub44330-12151

main44330-12160iCM3#,4#,YM30,40198509-198808

sub44330-12161

main44330-12170iCM3#,4#,YM30,40198509-198808

sub44330-12171

main44330-12180iCM3#,4#,YM30,40198509-198808

sub44330-12181

main44330-14010iKM30,31,36198509-198808

sub44330-20010

main44330-14020iKM30,31,36198509-198808

sub44330-20020

main44330-14030iKM30,31,36198509-198808

sub44330-20030

main44330-14040iKM30,31,36198509-198808

sub44330-20040

main44330-14050iKM30,31,36198509-198808

sub44330-20050

main44330-14060iKM30,31,36198509-198808

sub44330-20060

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iKM30,31,36198509-198808

main90501-12447iCM3#,4#,YM30,40198509-198610

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iCM3#,4#,KM30,31,36,YM30,40198509-198808

44337UNION, POWER STEERING SUCTION PORT

main44337-27010iYM30,40198509-198808

main44337-27020iKM30,31,36198509-198510

sub44337-27021

main44337-27021iKM30,31,36198510-198808

main44337-27030iCM3#,4#198509-198808

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-12003iKM30,31,36198509-198808

sub90301-11016

main96711-19013iCM3#,4#,YM30,40198509-198808

44338UNION, PRESSURE PORT

main44308-12042iKM30,31,36198509-198808

main44308-14041iCM3#,4#,YM30,40198509-198808

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iKM30,31,36198509-198808

sub90301-19013

main90301-22001iCM3#,4#,YM30,40198509-198808

main96711-19014iCM3#,4#,YM30,40198509-198808

44341PLATE, VANE PUMP SIDE, FRONT

main44341-12030iKM30,31,36198509-198808

sub44341-32010

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-25001iKM30,31,36198509-198808

INNER

sub90301-25008

main90301-52001iKM30,31,36198509-198808

OUTER

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iCM3#,4#,YM30,40198509-198808

main44342-12021iKM30,31,36198509-198808

sub44342-32010

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-52001iKM30,31,36198509-198808

main90301-53002iCM3#,4#,YM30,40198509-198808

44343SEAT, FLOW CONTROL SPRING

main44343-12010iCM3#,4#,KM30,31,36,YM30,40198509-198610

main44343-12040iCM3#,4#,KM30,31,36,YM30,40198610-198808

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iCM3#,4#,KM30,31,36,YM30,40198509-198808

44348PLATE, VANE PUMP

main44345-12010iCM3#,4#,KM30,31,36,YM30,40198509-198808

main44345-12020iCM3#,4#,KM30,31,36,YM30,40198509-198808

main44345-12030iCM3#,4#,KM30,31,36,YM30,40198509-198808

main44345-12040iCM3#,4#,KM30,31,36,YM30,40198509-198808

main44345-12050iCM3#,4#,KM30,31,36,YM30,40198509-198808

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-27020iKM30,31,36,YM30,40198509-198808

main44360-27030iCM3#198509-198808

main44360-27040iCM4#198510-198808

44369ABRACKET, OIL RESERVOIR, NO.1

main44369-27010iKM30,31,36,YM30,40198509-198808

main44369-27020iCM3#198509-198808

main44369-27040iCM4#198510-198808

4503

9011908469

main90119-08469

9017912055

main90179-12055

9020630002

main90206-30002

9161160816

main91611-60816

9165140614

main91651-40614

9165160610

main91651-60610

38 parts on this diagram · 4 diagrams in section
