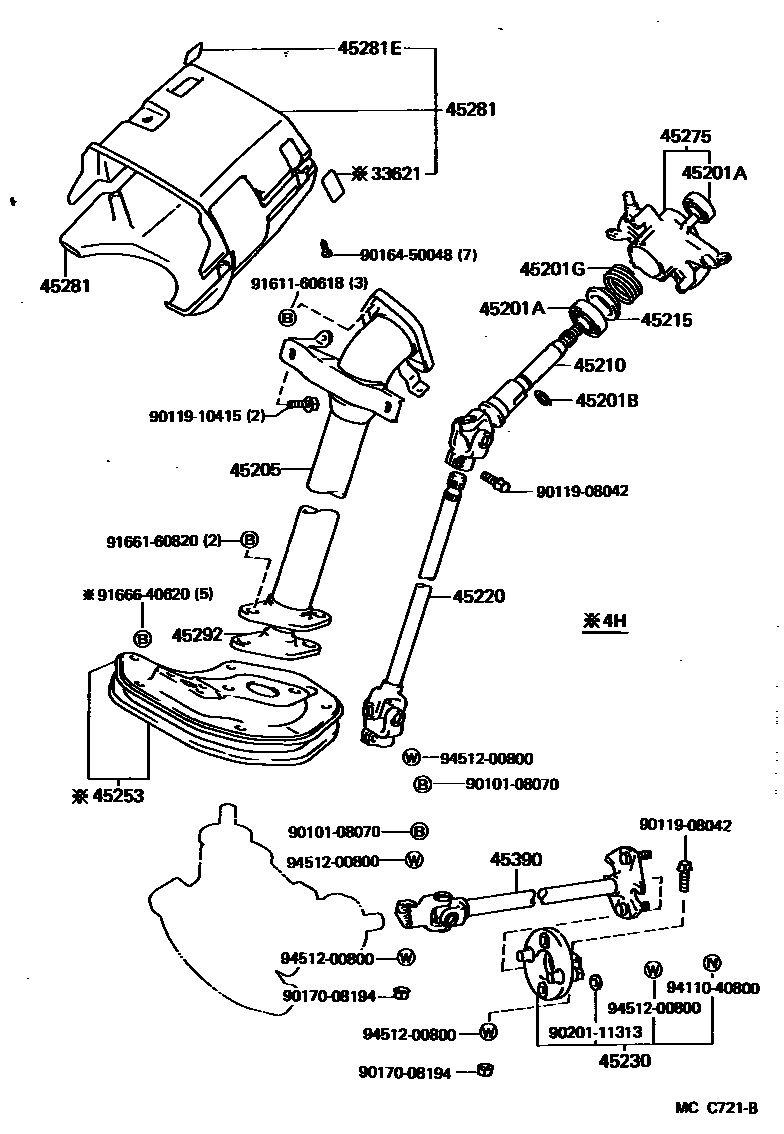

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36040iKM30,35,36..4H198509-198808

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iCM3#,4#,KM3#,YM30,40198509-198808

UPR

main90363-28001iCM3#,4#,KM3#,YM30,40198509-198808

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iCM3#,4#,KM3#,YM30,40198509-198808

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-45011iCM3#,4#,KM3#,YM30,40198509-198808

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-27090iCM3#,4#,KM30,35,36,YM40..DLX,SW,XL7198509-198808

main45205-27100iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

W/TILT STEERING

45210SHAFT ASSY, STEERING MAIN

main45210-22050iCM3#,4#,KM3#,YM30,40198509-198808

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-22011iCM3#,4#,KM3#,YM30,40198509-198808

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-27070iCM3#,4#,KM3#,YM30,40198509-198808

sub45220-27110

45230COUPLING ASSY, FLEXIBLE

main45230-27020iCM3#,KM3#..CBR,DSL198509-198808

main45230-27030iCM3#,KM30,31,36,YM30198509-198808

W/POWER STEERING

main45230-28010iCM4#,YM40198510-198808

45253COVER, STEERING COLUMN HOLE

main45253-27080iKM30,35,36..4H198509-198808

45275BRACKET, STEERING COLUMN, UPPER

main45280-27090iKM30,35,36..4H198509-198606

sub45280-27091

main45280-27091iKM30,35,36..4H198606-198709

main45280-27092iKM30,35,36..4H198709-198808

main45280-27100iCM35,36,KM30,31,36..3FC,4F,4FC,5F198509-198709

main45280-27101iCM35,36,KM30,31,36..(3FC,4F,4FC,5F)..(DLX,SUP,SW,XL7)198709-198808

main45280-27110iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198709

W/TILT STEERING

main45280-27111iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198709-198808

W/TILT STEERING

45281HOUSING, STEERING COLUMN

main45286-27130-04iKM30,35,36..4H198509-198708

UPR,BLUE,BLUE,TRIM4#,8#

sub45286-27130

main45286-27130-06iKM35,36..DLX198509-198708

UPR,BROWN,BROWN,TRIM4#

sub45286-27130

main45286-27140-04iCM30,4#,YM40..DLX,SW,XL7198509-198708

UPR,BLUE,BLUE,TRIM4#,8#

sub45286-27140

main45286-27140-06iKM30..SUC198509-198708

UPR,BROWN,BROWN,TRIM4#

sub45286-27140

main45286-27150-04iCM30,40,KM30,YM30,40..GXL,SCA,SUC198509-198708

UPR,W/TILT STEERING,BLUE,BLUE,TRIM4#,8#

sub45286-27150

main45286-27150-06iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198708

UPR,W/TILT STEERING,BROWN,BROWN,TRIM4#

sub45286-27150

main45286-27160-04iKM30,35,36..4H198708-198808

UPR,BLUE,BLUE,TRIM4#,8#

sub45286-27161

main45286-27160-06iKM35,36..DLX198708-198808

UPR,BROWN,BROWN,TRIM4#

sub45286-27161

main45286-27170-04iCM30,4#,YM40..DLX,SW,XL7198708-198808

UPR,BLUE,BLUE,TRIM4#,8#

sub45286-27171

main45286-27170-06iCM35,36,41,KM31,36..3FC,4FC,5F198708-198808

UPR,BROWN,BROWN,TRIM4#

sub45286-27171

main45286-27180-04iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198708-198808

UPR,W/TILT STEERING,BROWN,BROWN,TRIM4#

sub45286-27181

main45286-27180-06iCM30,40,KM30,YM30,40..GXL,SCA,SUC198708-198808

UPR,W/TILT STEERING,BLUE,BLUE,TRIM8#

sub45286-27181

main45287-27070-04iKM30,35,36..4H198509-198808

LWR,BLUE,BLUE,TRIM4#,8#

sub45287-27070

main45287-27070-06iKM35,36..DLX198509-198808

LWR,BROWN,BROWN,TRIM4#

sub45287-27070

main45287-27080-04iCM30,4#,YM40..DLX,SW,XL7198509-198808

LWR,BLUE,BLUE,TRIM4#,8#

sub45287-27080

main45287-27080-06iCM35,36,41,KM31,36..3FC,4FC,5F198509-198808

LWR,BROWN,BROWN,TRIM4#

sub45287-27080

main45287-27090-04iCM30,40,KM30,YM30,40..GXL,SCA,SUC198509-198808

LWR,W/TILT STEERING,BLUE,BLUE,TRIM8#

sub45287-27090

main45287-27090-06iCM30,40,KM30,YM30,40..FXV,GXL,SCA,SUC198509-198808

LWR,W/TILT STEERING,BROWN,BROWN,TRIM4#

sub45287-27090

45281EPLATE, SAFETY CAUTION

main45283-22010iCM3#,4#,KM3#,YM30,40198509-198808

45292SEAL, MAIN SHAFT LOWER DUST

main45292-27010iCM3#,4#,KM3#,YM30,40198509-198808

45390SHAFT ASSY, STEERING TORQUE

main45390-27010iCM3#,KM3#..CBR,DSL198509-198808

sub45390-27060

sub45230-27080

main45390-27020iCM3#,KM30,31,36,YM30198509-198808

W/POWER STEERING

sub45390-27070

sub45230-27090

main45390-27030iCM4#,YM40198510-198808

sub45390-27080

sub45230-27100

9010108070

main90101-08070

9011908042

main90119-08042

9011910415

main90119-10415

9016450048

main90164-50048

9017008194

main90170-08194

9020111313

main90201-11313

9161160618

main91611-60618

9166160820

main91661-60820

9166640620

main91666-40620

9411040800

main94110-40800

9451200800

main94512-00800

26 parts on this diagram · 5 diagrams in section
