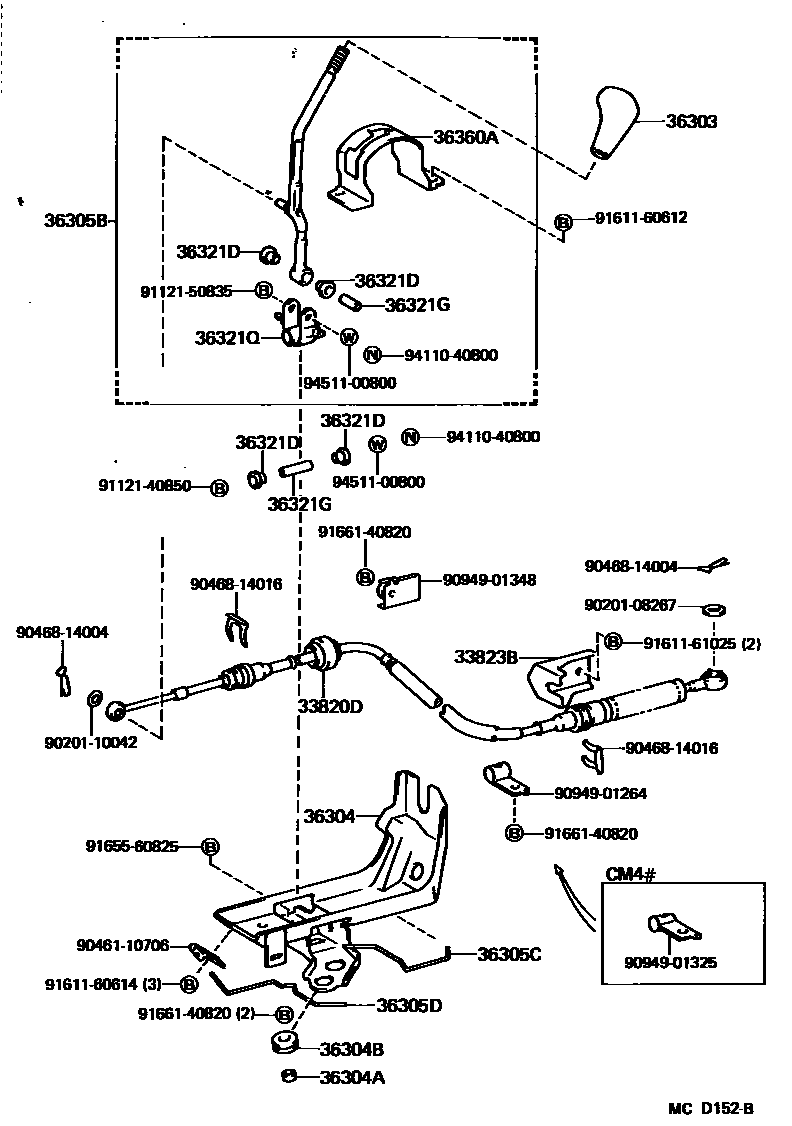

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

33820DCABLE ASSY, TRANSFER CONTROL

main33820-27041iCM4#,YM40..5F198510-198808

main33820-27051iYM40..4FC198510-198808

33823BBRACKET, TRANSFER CONTROL CABLE

main33823-28100iCM4#,YM40198510-198808

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-28010-04iCM4#,YM40..DLX,FXV,GXL,SW198510-198808

BLUE,BLUE,TRIM4#,8#

main36303-28010-16iCM4#,YM40..DLX,GXL,SW,XL7198510-198808

BROWN,BROWN,TRIM4#

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main33506-27030iCM4#,YM40198510-198808

36304ACOLLER (FOR TRANSFER CONTROL SHIFT LEVER RETAINER)

main90387-09011iCM4#,YM40198510-198808

36304BGROMMET (FOR TRANSFER CONTROL SHIFT LEVER RETAINER)

main90480-13012iCM4#,YM40198510-198808

36305BLEVER SUB-ASSY, TRANSFER SHIFT

main33503-27160iCM4#,YM40198510-198808

36305CSPRING, NO.1 (FOR TRANSFER SHIFT LEVER)

main33769-27010iCM4#,YM40198510-198808

36305DSPRING, NO.2 (FOR TRANSFER SHIFT LEVER)

main33769-27020iCM4#,YM40198510-198808

36321DBUSH (FOR TRANSFER SHIFT LEVER)

main90385-11006iCM4#,YM40198510-198808

36321GCOLLER (FOR TRANSFER SHIFT LEVER)

main90387-08067iCM4#,YM40198510-198808

L=34

main90387-08069iCM4#,YM40198510-198808

L=22

36321QLEVER, TRANSFER SHIFT

main33503-27130iCM4#,YM40198510-198808

36360APLATE, DETENT (FOR TRANSFER SHIFT LEVER)

main33633-27020iCM4#,YM40198510-198808

9020108267

main90201-08267

9020110042

main90201-10042

9046110706

main90461-10706

9046814004

main90468-14004

9046814016

main90468-14016

9094901264

main90949-01264

9094901325

main90949-01325

9094901348

main90949-01348

9112140850

main91121-40850

9112150835

main91121-50835

9161160612

main91611-60612

9161160614

main91611-60614

9161161025

main91611-61025

9165560825

main91655-60825

9166140820

main91661-40820

9411040800

main94110-40800

9451100800

main94511-00800

30 parts on this diagram · 2 diagrams in section
