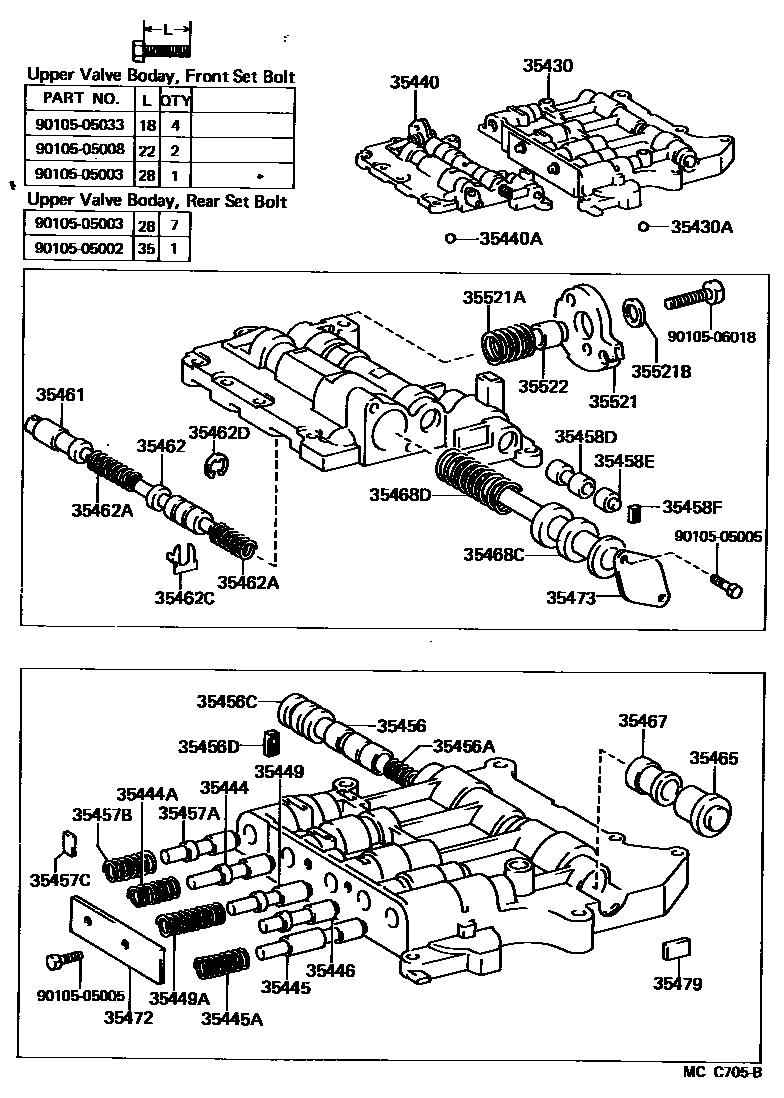

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

35430BODY ASSY, REAR UPPER VALVE

main35430-27020iKM30,31..3FC198509-198808

main35430-27030iYM30,40..4FC198509-198808

main35430-30110iCM30,36..4FC198509-198808

35430ABALL (FOR REAR UPPER VALVE BODY)

main35495-22010iCM30,36,KM30,31,YM30,40..ATM198509-198808

sub35495-22020

main35495-22020iKM30,31,YM30,40..ATM198804-198808

main90360-06023iCM30,36,KM30,31,YM30,40..ATM198509-198808

35440BODY ASSY, FRONT UPPER VALVE

main35440-20021iCM30,36..4FC198509-198808

main35440-22090iKM30,31..3FC198509-198808

main35440-28041iYM30,40..4FC198509-198808

35440ABALL (FOR FRONT UPPER VALVE BODY)

main35495-22010iCM30,36,KM30,31,YM30,40..ATM198509-198808

sub35495-22020

main35495-22020iKM30,31,YM30,40..ATM198804-198808

35444VALVE, INTERMEDIATE MODULATOR

main35444-22010iCM30,36,KM30,31..ATM198509-198808

35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)

main90501-11001iKM30,31..3FC198509-198511

sub90501-11009

main90501-11009iCM30,36..4FC198509-198808

35445VALVE, LOW MODULATOR

main35445-22010iCM30,36,KM30,31,YM30,40..ATM198509-198808

35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

main90501-08725iCM30,36,KM30,31,YM30,40..ATM198509-198808

35446VALVE, GOVERNOR MODULATOR

main35446-20010iCM30,36,KM30,31,YM30,40..ATM198509-198808

35449VALVE, SEQUENCE

main35447-22010iCM30,36,KM30,31,YM30,40..ATM198509-198808

UPR VALVE BODY

main35449-22010iKM30,31,YM30,40..ATM198509-198808

LWR VALVE BODY

35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)

main90501-12055iKM30,31..3FC198509-198808

UPR VALVE BODY

main90501-12726iCM30,36,KM30,31..ATM198509-198808

LWR VALVE BODY

35456VALVE, 2-3 SHIFT

main35456-22010iCM30,36,KM30,31..ATM198509-198808

main35456-30040iYM30,40..4FC198509-198808

35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

main90501-08013iYM30,40..4FC198509-198808

main90501-08724iCM30,36,KM30,31..ATM198509-198808

35456CPLUG (FOR 2-3 SHIFT VALVE)

main35452-22010iCM30,36,KM30,31..ATM198509-198808

main35452-30020iYM30,40..4FC198509-198808

35456DSEAT (FOR 2-3 SHIFT VALVE)

main35493-22020iCM30,36,KM30,31..ATM198509-198808

35457AVALVE, DETENT REGULATOR

main35457-22010iCM30,36,KM30,31,YM30,40..ATM198509-198808

35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

main90501-09022iKM30,31,YM30,40..ATM198509-198808

main90501-09025iCM30,36..4FC198509-198808

35457CSEAT (FOR DETENT REGULATOR VALVE)

main35438-22020iCM30,36,KM30,31,YM30,40..ATM198509-198808

35458DVALVE, CUT BACK

main35458-22010iCM30,36,KM30,31,YM30,40..ATM198509-198808

35458EPLUG (FOR CUT BACK VALVE)

main35459-22010iCM30,36,KM30,31,YM30,40..ATM198509-198808

35458FSEAT (FOR CUT BACK VALVE)

main35493-22010iCM30,36,KM30,31,YM30,40..ATM198509-198808

35461PLUG, DOWN SHIFT

main35408-22020iKM30,31..3FC198509-198808

main35408-30010iYM30,40..4FC198509-198808

main35408-30030iCM30,36..4FC198509-198808

35462VALVE, THROTTLE

main35462-22011iCM30,36,KM30,31,YM30,40..ATM198509-198808

35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)

main90501-07680iCM30,36,KM30,31,YM30,40..ATM198509-198808

main90501-12029iCM30,36..4FC198509-198808

PRIMARY

main90501-12077iKM30,31,YM30,40..ATM198509-198808

35462CSTOPPER, VALVE VIBRATING

main35422-22010iCM30,36,KM30,31,YM30,40..ATM198509-198808

35462DRING, E (FOR THROTTLE VALVE)

main90523-06023iCM30,36,KM30,31,YM30,40..ATM198509-198808

35465PLUG, INTERMEDIATE SHIFT VALVE

main35465-22010iCM30,36,KM30,31..ATM198509-198808

main35465-30010iYM30,40..4FC198509-198808

35467VALVE, INTERMEDIATE SHIFT

main35467-22010iCM30,36,KM30,31..ATM198509-198808

main35467-30020iYM30,40..4FC198509-198808

35468CVALVE, SECONDARY REGULATOR

main35468-22010iCM30,36,KM30,31,YM30,40..ATM198509-198808

35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

main90501-16683iKM30,31..3FC198509-198808

main90501-19001iCM30,36,YM30,40..4FC198509-198808

35472COVER, VALVE BODY, NO.2

main35472-22010iCM30,36,KM30,31,YM30,40..ATM198509-198808

35473COVER, TRANSMISSION VALVE BODY

main35473-22010iCM30,36,KM30,31,YM30,40..ATM198509-198808

35479SEAT, INTERMEDIATE SHIFT VALVE

main35479-22010iCM30,36,KM30,31..ATM198509-198808

35521CAM, THROTTLE VALVE

main35521-20010iCM30,36..4FC198509-198808

main35521-22030iKM30,31,YM30,40..ATM198509-198808

35521ASPRING (FOR THROTTLE VALVE CAM RETURN)

main90508-12331iCM30,36,KM30,31,YM30,40..ATM198509-198808

35521BWASHER (FOR THROTTLE VALVE CAM SET)

main90201-06472iCM30,36,KM30,31,YM30,40..ATM198509-198808

35522PIN, THROTTLE VALVE CAM

main35522-22010iCM30,36,KM30,31,YM30,40..ATM198509-198808

9010505002

main90105-05002

9010505003

main90105-05003

9010505005

main90105-05005

9010505008

main90105-05008

9010505033

main90105-05033

9010506018

main90105-06018

43 parts on this diagram · 9 diagrams in section
