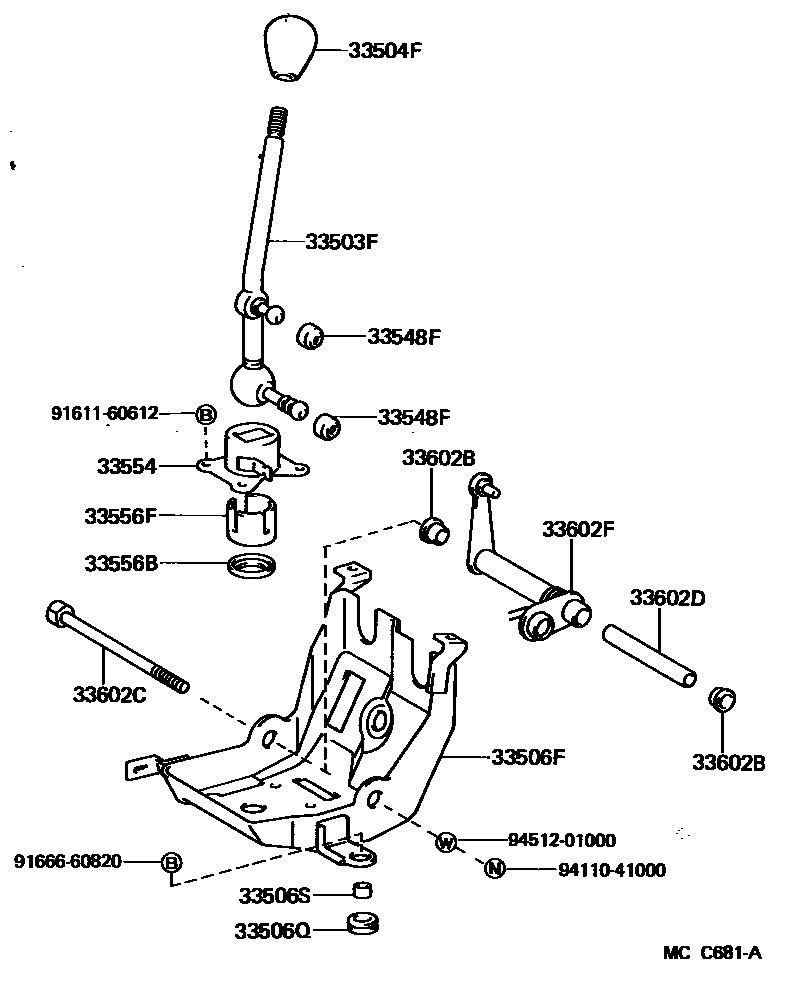

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-27050iCM30,YM30,40..4FC198509-198808

main33503-27070iCM30,36..4FC..(DLX,SW)198509-198808

main33503-27080iKM30,31..3FC198509-198808

main33503-27090iKM30..XL7198509-198808

main33503-27110iCM30,35,4#,KM30,31,36,YM30,40..5F198509-198808

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12150-06iCM30,40,YM30,40..FXV198804-198805

sub33504-12150

sub33504-22140

main33504-12150-06iCM30,40,YM30,40..5F..FXV198509-198808

LEATHER,BROWN,BROWN,TRIM4#

sub33504-12150

sub33504-22140

main33504-14070-14iCM4#,YM40..5F..(DLX,SW,XL7)198510-198808

BLUE,BLUE,TRIM4#,8#

sub33504-14070

sub33504-14050

main33504-22101-24iKM30..XL7198509-198808

BLUE,BLUE,TRIM4#,8#

sub33504-22101

main33504-22111-34iCM30,35,KM31,36..5F..(DLX,SUP,SW,XL7)198509-198808

BLUE,BLUE,TRIM4#,8#

sub33504-14050

sub33504-22111

main33504-22111-36iCM35,41,KM31,36..5F198509-198808

BROWN,BROWN,TRIM4#

sub33504-14050

sub33504-22111

main33504-24010-06iCM30,40,KM30,YM30,40..5F..(FXV,GXL,SCA,SUC)198509-198808

BROWN,BROWN,TRIM4#

sub33504-24010

main33504-24010-44iCM30,40,KM30,YM30,40..5F..(GXL,SCA,SUC)198509-198808

BLUE,BLUE,TRIM4#,8#

sub33504-24010

main33542-10020-16iKM30..3FC..SUC198509-198808

BROWN,BROWN,TRIM4#

sub33542-10020

main33542-10020-24iKM30..3FC..SUC198509-198808

BLUE,BLUE,TRIM4#,8#

sub33542-10020

main33542-12110-14iKM30,31..3FC..(SUP,SW)198509-198808

BLUE,BLUE,TRIM4#,8#

sub33542-12110

main33542-12110-16iKM31..3FC198509-198808

BROWN,BROWN,TRIM4#

sub33542-12110

main33542-32010-24iCM30,36..4FC..(DLX,SW)198509-198808

BLUE,BLUE,TRIM4#,8#

sub33542-32010

main33542-32040-14iCM30,YM30,40..4FC..(GXL,SUC,SW)198509-198808

BLUE,BLUE,TRIM4#,8#

sub33542-32040

main33542-32040-16iCM30,YM30,40..4FC198509-198808

BROWN,BROWN,TRIM4#

sub33542-32040

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-27020iCM30,35,4#,KM30,31,36,YM30,40..4F,5F198509-198808

33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90480-13012iCM30,35,4#,KM30,31,36,YM30,40..4F,5F198509-198808

33506SCOLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90387-09011iCM30,35,4#,KM30,31,36,YM30,40..4F,5F198509-198808

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021iCM30,35,4#,KM30,31,36,YM30,40..4F,5F198509-198808

33554CAP, SHIFT LEVER

main33554-27020iKM30..XL7198509-198808

main33554-27030iCM30,35,4#,KM30,31,36,YM30,40..5F198509-198808

33556BBUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90385-24001iCM30,35,4#,KM30,31,36,YM30,40..4F,5F198509-198808

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-27020iCM30,35,4#,KM30,31,36,YM30,40..4F,5F198509-198808

33602BBUSHING (FOR SELECT LEVER)

main90386-13007iCM30,35,4#,KM30,31,36,YM30,40..4F,5F198509-198808

33602CBOLT (FOR SELECT LEVER)

main90101-10191iCM30,35,4#,KM30,31,36,YM30,40..4F,5F198509-198808

33602DCOLLAR (FOR SELECT LEVER)

main90387-10083iCM30,35,4#,KM30,31,36,YM30,40..4F,5F198509-198808

33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)

main33602-27040iKM30..XL7198509-198808

main33602-27050iCM30,35,4#,KM30,31,36,YM30,40..5F198509-198808

9161160612

main91611-60612

9166660820

main91666-60820

9411041000

main94110-41000

9451201000

main94512-01000

17 parts on this diagram · 7 diagrams in section
