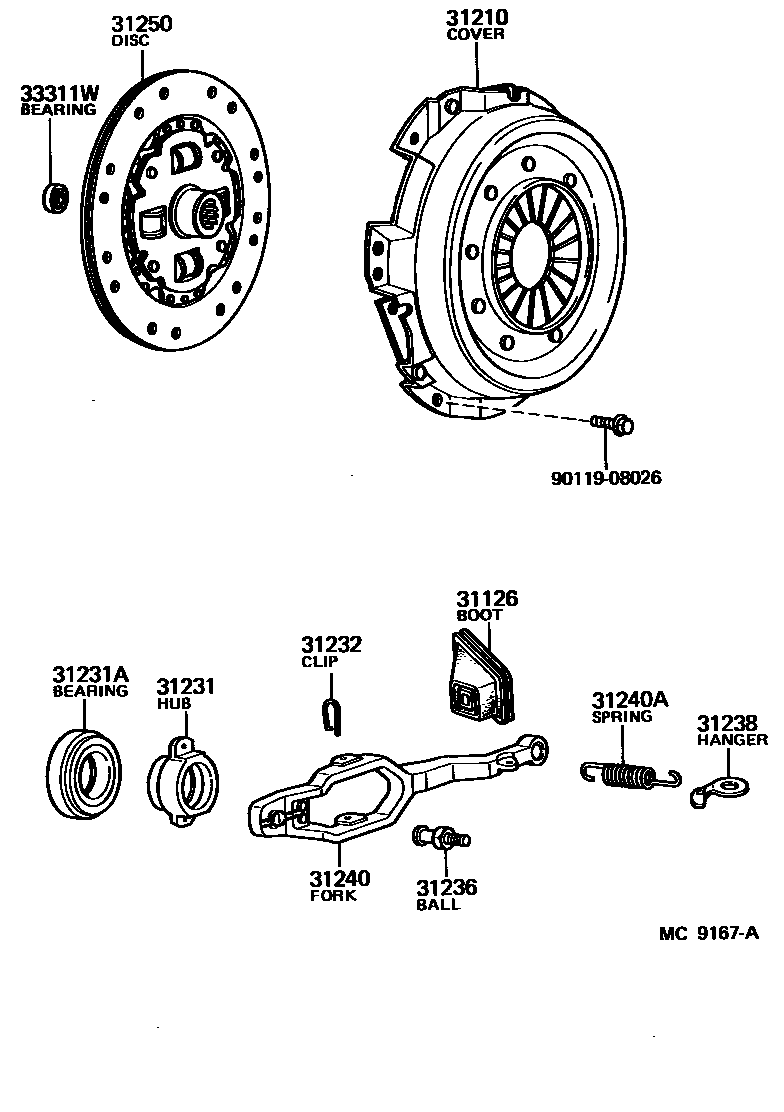

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iCM30,35,4#,YM30,40..5F198509-198808

main31126-20070iKM30,31,36..5F198509-198808

main31126-27020iKM30,35,36..4F,4H198509-198808

31210COVER ASSY, CLUTCH

main31210-12100iKM30,31,36..MTM198509-198610

sub31210-12180

main31210-26030iCM30..5F..DSL198509-198702

sub31210-26070

main31210-26070iYM30,40198702-198808

sub31210-22121

main31210-27010iKM3#..MTM198610-198808

sub31210-27011

main31210-27030iCM30,40..5F..TD198803-198808

sub31210-35090

main31210-28010iKM35198509-198610

sub31210-12180

main31210-36029iCM30,40..5F..TD198509-198803

sub31210-36200

31231HUB, CLUTCH RELEASE BEARING

main31231-27030iKM30,35,36..4F,4H198509-198808

main31231-36070iCM30,35,4#,KM30,31,36,YM30,40..5F198509-198808

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main31230-35090iCM30,35,4#,KM3#,YM30,40..MTM198807-198808

sub31230-35091

main90363-40022iCM30,35,4#,KM3#,YM30,40..MTM198509-198807

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iCM30,35,4#,KM30,31,36,YM30,40..5F198509-198808

main31232-30020iKM30,35,36..4F,4H198509-198808

31236BALL, RELEASE FORK

main31236-30060iCM30,35,4#,KM3#,YM30,40..MTM198509-198808

31238HANGER, RELEASE FORK RETRACTING SPRING

main31238-27010iKM30,35,36..4F,4H198509-198808

31240FORK ASSY, CLUTCH RELEASE

main31204-20071iCM30,35,4#,YM30,40..5F198509-198808

main31204-20080iKM30,31,36..5F198509-198808

main31204-27011iKM30,35,36..4F,4H198509-198808

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-18311iKM30,35,36..4F,4H198509-198808

31250DISC ASSY, CLUTCH

main31250-20113iCM30,35..5F..DSL198509-198808

sub31250-20114

main31250-20120iYM40..5F198510-198609

sub31250-20121

main31250-20121iYM40..5F198609-198808

sub31250-25122

main31250-27025iKM30,35..MTM198509-198808

sub31250-27060

main31250-27060iKM31,36..MTM198509-198808

sub31250-27061

main31250-28020iCM4#198510-198808

sub31250-28021

main31250-28040iCM40198609-198808

sub31250-28041

main31250-30340iCM30..5F..TD198509-198803

sub31250-30360

main31250-30341iCM30..5F..TD198803-198808

sub31250-60151

main31250-35062iYM30..5F198509-198808

sub31250-35063

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iYM30,40..5F198509-198808

sub90363-12024

main90363-12003iKM3#..MTM198509-198808

main90363-12004iCM30,35,4#..5F198509-198808

9011908026

main90119-08026

12 parts on this diagram · 3 diagrams in section
