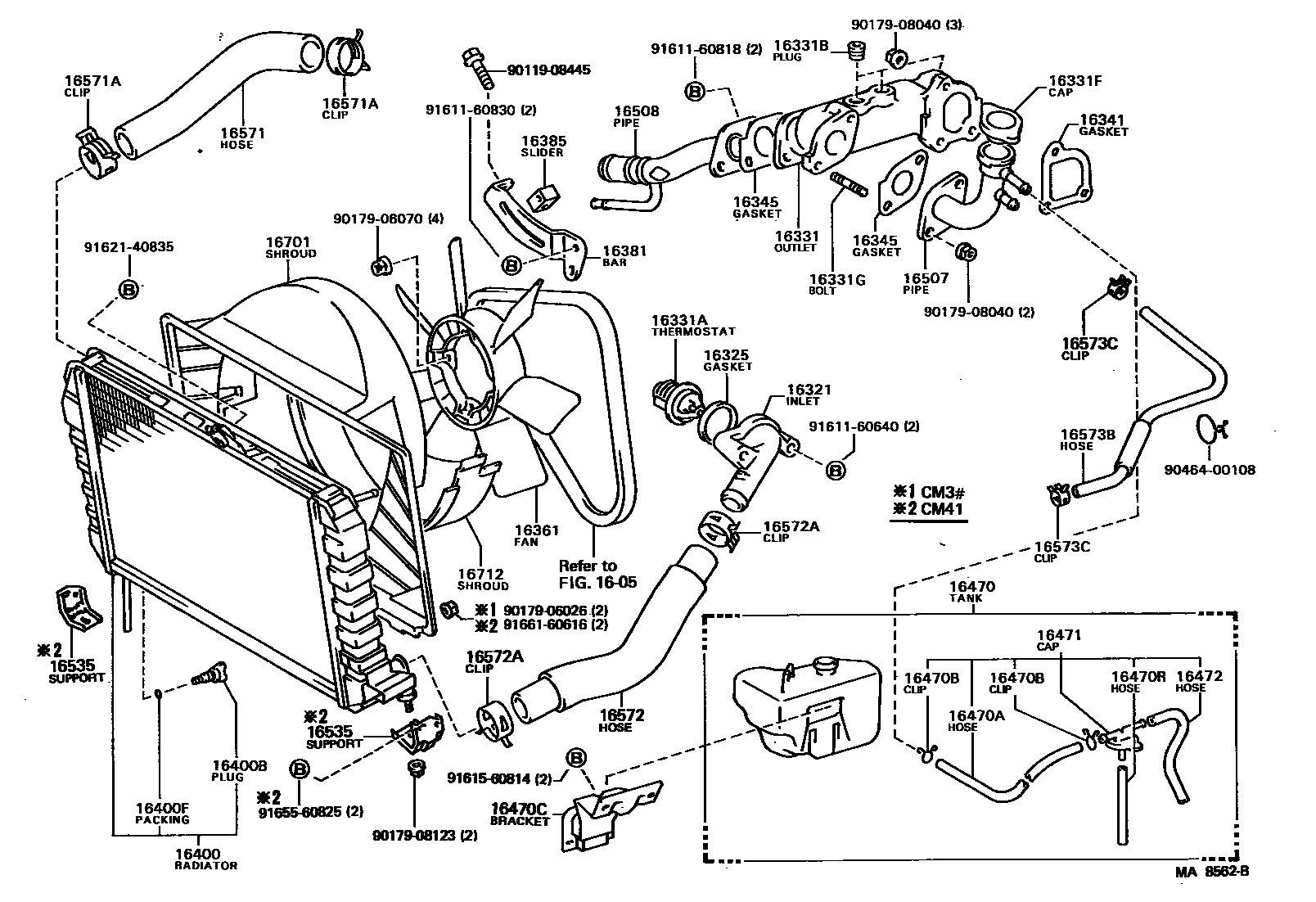

RADIATOR & WATER OUTLET
1605
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
sub16325-63011
16331BPLUG(FOR WATER OUTLET)
16331GBOLT, STUD(FOR WATER INLET)
16345GASKET, WATER OUTLET PIPE
sub16345-64030
16361FAN
16381BAR, FAN BELT ADJUSTING
W/PS
16385SLIDER, FAN BELT ADJUSTING
16400RADIATOR ASSY
sub16400-13400
sub16400-64530
sub16400-64530
sub16400-64331
sub16400-64341
sub16400-64600
sub16400-64250
sub16400-64390
sub16400-72171
sub16400-73190
sub16400-73190
sub16400-73240
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
NO,1
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
16472HOSE, BREATHER
16507PIPE SUB-ASSY, RADIATOR
16508PIPE SUB-ASSY, RADIATOR, NO.2
16535SUPPORT, RADIATOR, LOWER
RH
LH
16571HOSE, RADIATOR, INLET
16572HOSE, RADIATOR, OUTLET
W/PS,ENGINE SIDE
ENGINE SIDE
RADIATOR SIDE
W/PS,RADIATOR SIDE
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
sub96135-51300
16712SHROUD, FAN, NO.2
9011908445
main90119-08445
9017906026
main90179-06026
9017906070
main90179-06070
9017908040
main90179-08040
9017908123
main90179-08123
9046400108
main90464-00108
9161160640
main91611-60640
9161160818
main91611-60818
9161160830
main91611-60830
9161560814
main91615-60814
9162140835
main91621-40835
9165560825
main91655-60825
9166160616
main91661-60616
47 parts on this diagram · 5 diagrams in section
