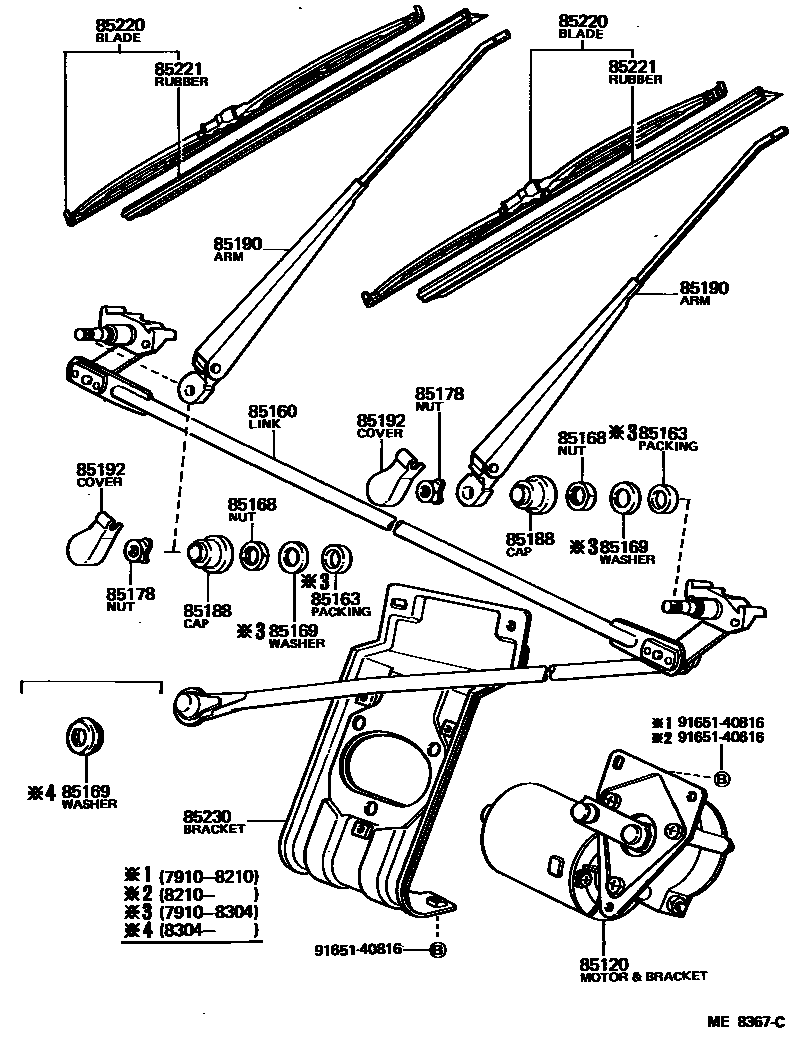

WINDSHIELD WIPER

85120MOTOR AND BRACKET ASSY, WINDSHIELD WIPER

main85120-95700iKM20,TM20197910-198007

main85120-95705iKM20,TM20197910-198210

COLD SPEC

main85120-95707iKM20,TM20198007-198210

main85120-95714iCM2#,KM21,YM2#..CS7,DLX,MTP,S,STD,SUP,SW,XL198210

main85120-95716iCM20..V4D;CM2#..(TR,WG)..(DLX,SW,XL)198210

COLD SPEC

main85120-95718iCM20,YM21..FXV,GXL198210-198508

85160LINK ASSY, WINDSHIELD WIPER

main85160-95702iKM20,TM20197910-198210

main85160-95704iCM2#,KM21,YM2#198210-198311

main85160-95706iCM2#,KM21,YM2#198311

85163PACKING, WINDSHIELD WIPER PIVOT

main85185-95010×2iKM20,TM20197910-198210

main85185-95700×2iCM2#,KM21,YM2#198210-198304

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95010×2iKM20,TM20197910-198210

main85168-95700×2iCM2#,KM21,YM2#198210

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85169-95010×2iKM20,TM20197910-198210

main85169-95700×2iCM2#,KM21,YM2#198210-198304

main85179-95700×2iCM2#,KM21,YM2#198304

85178NUT (FOR FRONT WIPER ARM SETTING)

main90099-05129×2iKM20,TM20197910-198210

main90179-08026×2iCM2#,KM21,YM2#198210

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85135-95010×2iKM20,TM20197910-198210

main85135-95700×2iCM2#,KM21,YM2#198210

85190ARM ASSY, WINDSHIELD WIPER

main85190-95703×2iKM20,TM20197910-198103

main85190-95706iKM20,TM20198103-198210

RH

main85190-95710iCM2#,KM21,YM2#198210

RH

main85210-95700iKM20,TM20198103-198210

LH

main85210-95702iCM2#,KM21,YM2#198210

LH

85192COVER, WINDSHIELD WIPER ARM

main85195-95401×2iCM2#,KM2#,TM20,YM2#197910

85220BLADE ASSY, WINDSHIELD WIPER

main85220-95702×2iKM20,TM20197910-198103

main85220-95709×2iCM2#,KM21,YM2#198210

main85220-95A05×2iKM20,TM20198103-198210

85221BLADE, WINDSHIELD WIPER

main85221-95700×2iKM20,TM20197910-198103

sub85221-14H90

main85221-95A01×2iCM2#,KM2#,TM20,YM2#198103

sub85221-14H90

85230BRACKET ASSY, WINDSHIELD WIPER

main85109-95700iKM20,TM20197910-198210

main85109-95702iCM2#,KM21,YM2#198210

9165140616

main91651-40616

9165140816

main91651-40816

14 parts on this diagram · 1 diagram in section
