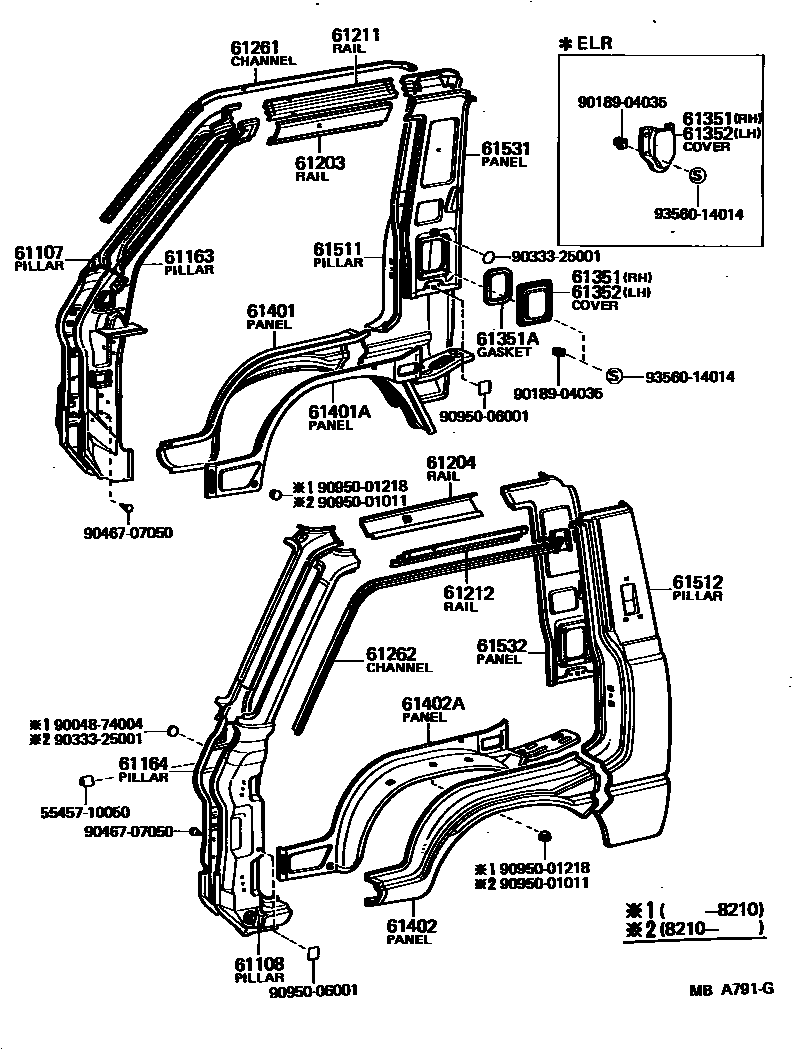

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1

61107PILLAR SUB-ASSY, FRONT BODY OUTER, RH

main61103-95706iKM20,TM20197910-198101

sub84231-14020

sub90201-10039

main61103-95710iKM20,TM20198101-198106

sub61103-95H00

main61103-95713iKM20..TR198106-198210

main61103-95717iTM20..MRF198204-198210

61108PILLAR SUB-ASSY, FRONT BODY OUTER, LH

main61104-87402iKM20..TR198101-198106

sub61104-87H00

main61104-87403iKM20..TR198106-198210

sub61104-95H03

main61104-95705iKM20,TM20197910-198101

sub61104-95712

sub84231-14020

sub90201-10039

main61104-95708iKM20,TM20..HRF,SRF198101-198106

sub61104-95H00

main61104-95711iTM20198101-198106

W/LARGE MIRROR

sub61104-95H02

main61104-95713iCM2#,KM21,YM25..TR198210-198609

main61104-95716iTM20..HRF,SRF198106-198210

W/LARGE MIRROR

main61104-95721iCM20,YM21..(HRF,MRF)..(GXL,S)198210-198508

W/SUN ROOF

main61104-95722iCM20,YM21..HRF,MRF198210-198508

W/LARGE MIRROR,SUN ROOF

61163PILLAR, FRONT BODY, INNER RH

main61105-95702iKM20,TM20..DLX,STD,SUP,XL197910-198201

main61105-95703iKM20,TM20197910-198201

W/SIDE DEFROSTOR

main61105-95706iTM20198201-198210

W/SIDE DEFROSTER

main61105-95707iTM20..DLX,STD,XL198201-198210

main61105-95709iCM2#,KM21,YM2#198210-198609

61164PILLAR, FRONT BODY, INNER LH

main61106-95702iKM20,TM20..DLX,STD,SUP,XL197910-198210

main61106-95704iKM20,TM20197910-198210

W/SIDE DEFROSTOR

main61106-95708iCM2#,KM21,YM2#198210-198609

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61205-95703iTM20..MRF198204-198210

main61205-95704iCM20,YM21..HRF,MRF198210-198609

W/SUN ROOF

main61231-87403iKM20..TR197910-198210

main61231-95701iKM20,TM20..HRF,SRF197910-198210

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61206-95702iKM20,TM20..HRF,SRF197910-198210

main61206-95704iTM20..MRF198204-198210

main61206-95705iCM20,YM21..HRF,MRF198210-198508

W/SUN ROOF

main61232-87401iKM20..TR197910-198210

main61232-95702iCM2#,KM21,YM25..TR198210-198609

61211RAIL, ROOF SIDE, OUTER RH

main61211-87402iCM2#,KM2#,YM25..TR197910-198609

main61211-95703iCM20,TM20,YM21..WG;CM20,KM2#,YM20..V4D197910-198508

main61211-95704iCM20,KM2#,YM20..V5D197910-198508

61212RAIL, ROOF SIDE, OUTER LH

main61212-87402iCM2#,KM2#,YM25..TR197910-198609

main61212-95703iCM20,KM2#,TM20,YM20,21..V,WG197910-198508

61261CHANNEL, ROOF DRIP, RH

main61223-87401iCM2#,KM2#,YM25..TR197910-198609

main61263-95700iCM20,KM2#,TM20,YM20,21..V,WG197910-198508

FR

main61267-95700iCM20,KM2#,TM20,YM20,21..V,WG197910-198508

RR

61262CHANNEL, ROOF DRIP, LH

main61224-87401iCM2#,KM2#,YM25..TR197910-198609

main61264-95700iCM20,KM2#,TM20,YM20,21..V,WG197910-198508

FR

main61268-95700iCM20,KM2#,TM20,YM20,21..V,WG197910-198508

RR

61351COVER, CENTER BODY, INNER RH

main61306-95701iCM20,KM21,YM20..V5D198210-198508

main61306-95702iKM20..V4D198101-198210

W/*ELR

main61306-95703iCM20,KM2#,YM20..V5D198101-198508

W/*ELR

main61306-95707iCM20,KM21,YM20..V4D198210-198508

W/*ELR

main61306-95708iCM20,KM21,YM20..V4D198210-198508

main61347-95701iTM20197910-198101

main61347-95702iTM20..DLX,STD197910-198210

W/*ELR

main61347-95704iTM20..FXV,GXL,XL197910-198210

W/*ELR

main61347-95709iCM20,YM21..SW198308-198508

main61509-87401iCM2#,KM2#,YM25..TR197910-198508

main61539-87402iCM2#,KM2#,YM25..TR198101-198609

W/*ELR

61351AGASKET(FOR CENTER BODY INNER COVER)

main61519-87403×2iCM2#,KM2#,YM25..TR197910-198609

61352COVER, CENTER BODY, INNER, LH

main61347-95701iKM20,TM20..HRF,SRF197910-198101

main61347-95702iTM20..DLX,STD197910-198101

W/*ELR

main61347-95704iTM20..GXL,XL197910-198101

W/*ELR

main61347-95708iYM21..DLX,STD198210-198508

main61509-87401iCM2#,KM2#,YM25..TR197910-198508

main61539-87402iCM2#,KM2#,YM25..TR198101-198609

W/*ELR

61401PANEL SUB-ASSY, FENDER, RH

main61411-95701iCM2#,KM2#,TM20,YM2#197910-198609

61401APANEL SUB-ASSY, FENDER, INNER RH

main61403-87401iKM20..TR197910-198210

main61403-95700iCM2#,KM21,YM25..TR198210-198609

main61421-95701iCM20,KM2#,TM20,YM20,21..V,WG197910-198508

61402PANEL SUB-ASSY, FENDER, LH

main61412-95701iCM2#,KM2#,TM20,YM2#197910-198609

61402APANEL SUB-ASSY, FENDER, INNER LH

main61404-87401iKM20..TR197910-198210

main61404-95700iKM20,TM20..V,WG198101-198210

main61404-95701iCM2#,KM21,YM25..TR198210-198609

main61422-95701iKM20,TM20..HRF,SRF197910-198101

61511PILLAR, QUARTER LOCK, RH

main61501-87401iKM20..TR197910-198210

main61501-87402iCM2#,KM21,YM25..TR198210-198609

61512PILLAR, QUARTER LOCK, LH

main61502-87401iKM20..TR197910-198210

main61502-95700iCM2#,KM21,YM25..TR198210-198609

61531PANEL, BACK CORNER, INNER RH

main61023-87401iKM20..TR197910-198210

main61023-87402iKM20..TR198101-198210

W/*ELR

main61023-95700iCM2#,KM21,YM25..TR198210-198609

W/*ELR

main61023-95701iCM2#,KM21,YM25..TR198210-198508

61532PANEL, BACK CORNER, INNER LH

main61024-87401iKM20..TR197910-198210

main61024-87403iKM20..TR198101-198210

W/*ELR

main61024-95700iCM2#,KM21,YM25..TR198210-198609

W/*ELR

main61024-95701iCM2#,KM21,YM25..TR198210-198508

5545710050GARNISH, IDENTIFICATION NUMBER PLATE

main55457-10050

9004874004

main90048-74004

9018904035

main90189-04035

9033325001

main90333-25001

9046707050

main90467-07050

9095001011

main90950-01011

9095001218

main90950-01218

9095006001

main90950-06001

9356014014

main93560-14014

30 parts on this diagram · 5 diagrams in section
