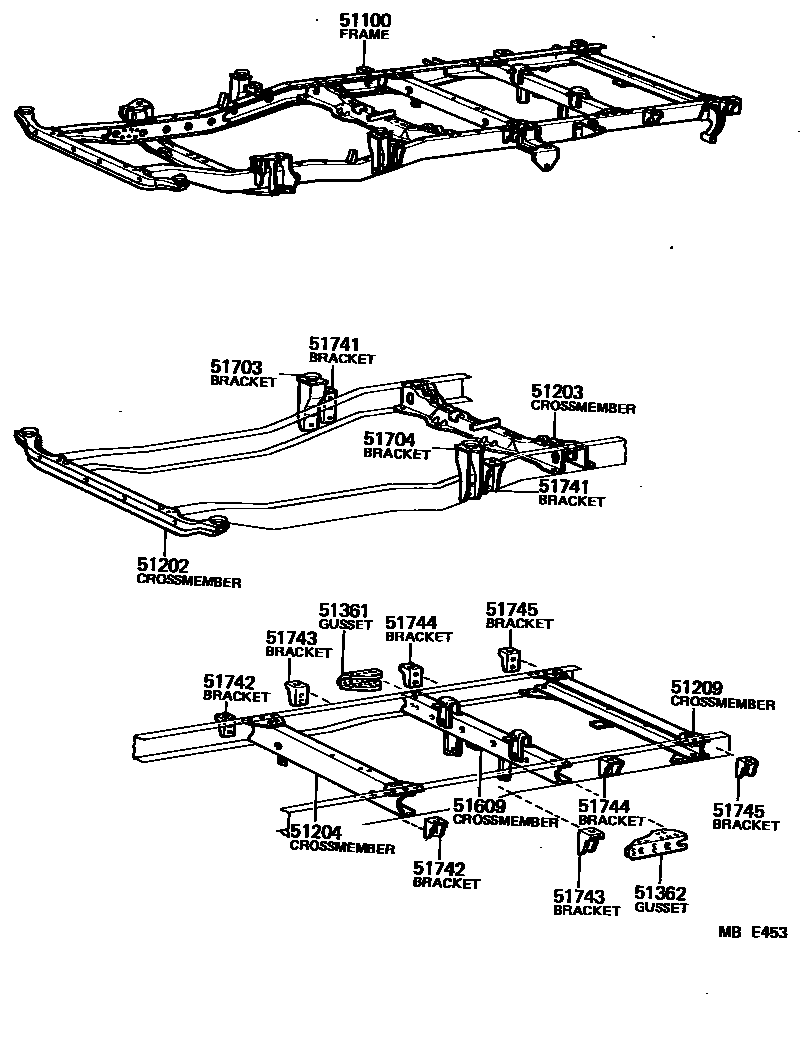

FRAME

51100FRAME ASSY

main51001-27070iKM20..TR..ST197910-198210

main51001-27071iKM21..TS..ST198210-198609

main51001-27080iKM20..T2197910-198210

main51001-27081iKM21..T2198210-198609

main51001-27160iCM20..TS..ST198210-198609

main51001-27170iCM20..03S..WT198210-198609

main51001-27180iCM25,YM25198210-198411

main51001-27181iCM25,26,YM25198411-198609

main51001-27190iKM21..ST..IV198210-198609

SINGLE JUSTLOW

main51001-27200iCM20..IV198210-198609

SINGLE JUSTLOW

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-27040iKM20..TR197910-198210

sub51201-27041

sub86591-87401

main51201-27041iCM2#,KM21,YM25..TR198210-198609

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51204-27040iKM20..TR197910-198210

sub51204-27041

main51204-27041iCM2#,KM21,YM25..TR198210-198609

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51205-27040iKM20..TR197910-198210

sub51205-27041

main51205-27041iCM20,KM21..TR198210-198609

main51205-27070iCM25,YM25198210-198411

main51205-27071iCM25,26,YM25198411-198609

51209CROSSMEMBER SUB-ASSY, FRAME, NO.8

main51209-27020iKM20..TR..ST197910-198210

main51209-27021iCM20,KM21..TS..ST198210-198609

main51209-27030iKM20..T2197910-198210

main51209-27031iCM2#,KM21,YM25..T2198210-198609

51361GUSSET, CROSSMEMBER, NO.6 RH

main51361-27020iCM20,KM2#..TR..ST197910-198609

51362GUSSET, CROSSMEMBER, NO.6 LH

main51361-27020iCM20,KM2#..TR..ST197910-198609

51609CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT

main51206-27030iKM20..TR..ST197910-198210

main51206-27031iCM20,KM21..TS..ST198210-198609

main51206-27040iKM20..T2197910-198210

main51206-27041iCM20,KM21..T2198210-198609

main51206-27060iCM25,26,YM25198210-198609

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51705-27020iKM20..TR197910-198210

sub51705-27021

main51705-27021iKM21..TR198210-198609

main51705-27040iCM2#,YM25..TR198210-198609

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51706-27020iKM20..TR197910-198210

sub51706-27021

main51706-27021iKM21..TR198210-198609

main51706-27040iCM2#,YM25..TR198210-198609

51741BRACKET, REAR BODY MOUNTING, NO.1

main51741-27030iKM2#..TR197910-198609

main51741-27040iCM2#,YM25..TR198210-198609

51742BRACKET, BODY MOUNTING, NO.2

main51742-27020iCM2#,KM2#,YM25..TR197910-198609

51743BRACKET, BODY MOUNTING, NO.3

main51742-27020iCM2#,KM2#,YM25..TR197910-198609

51744BRACKET, BODY MOUNTING, NO.4

main51742-27020iCM2#,KM2#,YM25..TR197910-198609

51745BRACKET, BODY MOUNTING, NO.5

main51742-27020iCM25,26,YM25198210-198609

15 parts on this diagram · 1 diagram in section
