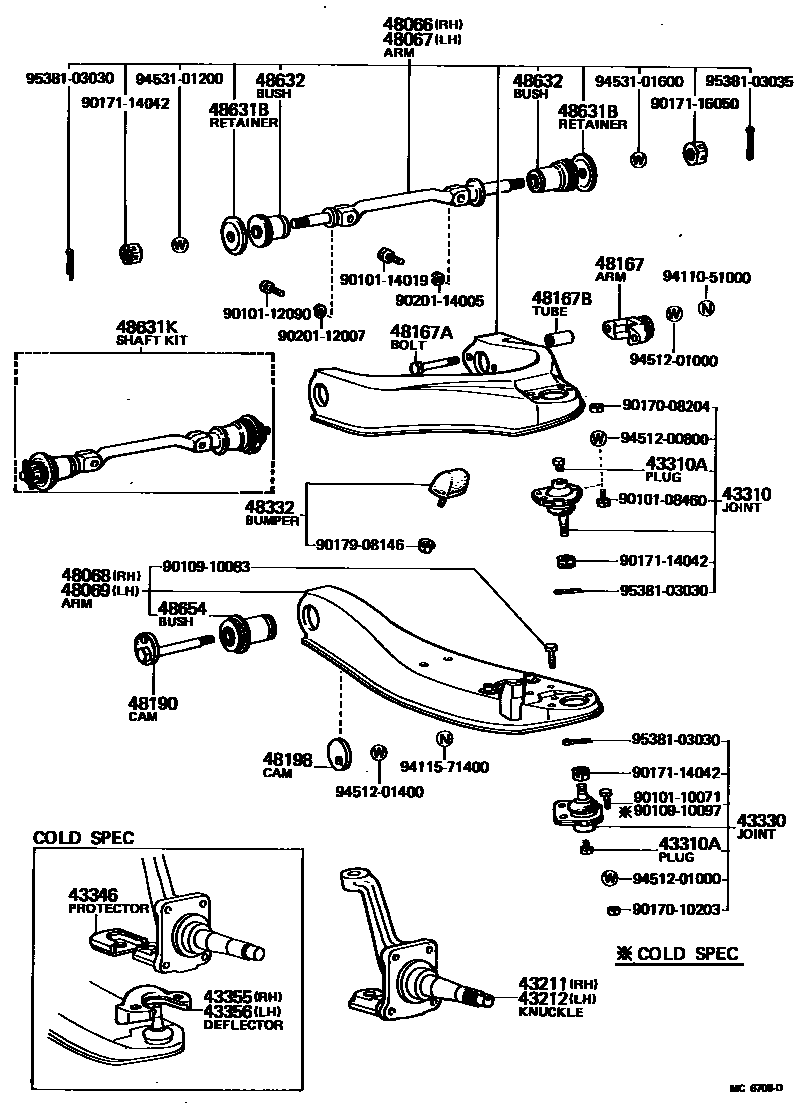

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-27010iKM20,TM20197910-198210

main43211-28020iCM2#,KM21,YM2#198210-198507

main43211-28021iCM20,26,KM21,YM2#198507-198609

43212KNUCKLE, STEERING, LH

main43211-27010iKM20,TM20197910-198210

main43211-28020iCM2#,KM21,YM2#198210-198507

main43211-28021iCM20,26,KM21,YM2#198507-198609

43310JOINT ASSY, UPPER BALL

main43350-29035iKM20,TM20197910-198210

RH

main43350-29036iCM2#,KM21,YM2#198210-198609

RH

sub43350-29076

main43360-29055iKM20,TM20197910-198210

LH

main43360-29056iCM2#,KM21,YM2#198210-198609

LH

sub43350-29076

43310APLUG (FOR BALL JOINT)

main90345-06014×4iCM2#,KM2#,TM20,YM2#197910-198609

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29095iKM20,TM20197910-198210

RH

main43330-29115iCM2#,KM21,YM2#198210-198609

RH

sub43330-29175

main43340-29075iKM20,TM20197910-198210

LH

main43340-29095iCM2#,KM21,YM2#198210-198609

LH

sub43330-29175

43346PROTECTOR, LOWER BALL JOINT DUST COVER

main43346-20021×2iKM20,TM20197910-198210

main43346-28010×2iKM21,YM2#198210-198508

main43346-28011×2iCM2#198508-198609

sub43346-28012

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-27010iKM20,TM20197910-198210

main43355-28010iCM20,YM21..WG198210-198301

sub91615-60825

main43355-28011iCM20,YM21..07S,08S,09S198301-198508

main43355-28020iCM2#,KM21,YM20,25..TR,V198210-198301

sub91615-60825

main43355-28021iCM20,YM21..SW198308-198508

43356DEFLECTOR, LOWER ARM ICE, LH

main43355-27010iKM20,TM20197910-198210

main43355-28020iCM2#,KM21,YM20,25..TR,V198210-198301

sub91615-60825

main43355-28021iCM2#..TR;CM20..V4D198301-198609

main43356-28010iCM20,YM21..WG198210-198301

sub91615-60825

main43356-28011iCM20,YM21..07S,08S,09S198301-198508

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-27020iKM20,TM20197910-198210

sub48610-28011

main48601-28010iCM2#,KM21,YM2#198210-198508

main48601-28011iCM2#,KM21,YM25198508-198609

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-27020iKM20,TM20197910-198210

sub48630-28011

main48602-28010iCM2#,KM21,YM2#198210-198508

main48602-28011iCM2#,KM21,YM25198508-198609

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-27030iKM20,TM20197910-198101

main48068-27040iTM20198101-198210

main48068-28020iCM2#,KM21,YM2#198210-198609

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-27030iKM20,TM20197910-198101

main48069-27040iTM20198101-198210

main48069-28020iCM2#,KM21,YM2#198210-198609

48167ARM, TORQUE

main48106-27010×2iKM20,TM20197910-198210

main48106-28010×2iCM2#,KM21,YM2#198210-198609

48167ABOLT(FOR TORQUE ARM SETTING)

main91121-71085×4iCM2#,KM2#,TM20,YM2#197910-198609

48167BTUBE(FOR TORQUE ARM SETTING BOLT)

main90440-17029×2iCM2#,KM2#,TM20,YM2#197910-198609

48190CAM ASSY, CAMBER ADJUST

main48190-20010×2iCM2#,KM2#,TM20,YM2#197910-198509

main48190-27010×2iCM2#,KM21,YM25198509-198609

sub48190-27020

sub90179-14046

48198CAM, CAMBER ADJUST, NO.2

main48198-20010×2iCM2#,KM2#,TM20,YM2#197910-198509

main48198-27010×2iCM2#,KM21,YM25198509-198609

48332BUMPER, FRONT SPRING, NO.2

main48305-39015×2iCM2#,KM2#,TM20,YM2#197910-198609

sub48305-30030

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02048×2iCM2#,KM2#,TM20,YM2#197910-198609

RR SIDE

main90948-02049×2iCM2#,KM2#,TM20,YM2#197910-198609

FR SIDE

48631KSHAFT KIT, UPPER SUSPENSION ARM

main04485-27010×2iKM20,TM20197910-198210

main04485-28020×2iCM2#,KM21,YM2#198210-198609

48632BUSH, UPPER ARM

main48632-27010×2iCM2#,KM21,YM2#198506-198609

FR SIDE

main48632-30040×2iCM2#,KM2#,TM20,YM2#197910-198506

FR SIDE

main48635-27010×2iKM20,TM20197910-198210

RR SIDE

main48635-28010×2iCM2#,KM21,YM2#198210-198609

RR SIDE

48654BUSH, LOWER ARM

main48061-20020×2iKM20,TM20197910-198210

main48061-27010×2iCM2#,KM21,YM25198509-198609

sub48061-27011

main48061-28010×2iCM2#,KM21,YM2#198210-198509

sub48061-28020

9010108460

main90101-08460

9010110071

main90101-10071

9010112090

main90101-12090

9010114019

main90101-14019

9010910083

main90109-10083

9010910097

main90109-10097

9017008204

main90170-08204

9017010203

main90170-10203

9017114042

main90171-14042

9017116050

main90171-16050

9017908146

main90179-08146

9020112007

main90201-12007

9020114005

main90201-14005

9411051000

main94110-51000

9411571400

main94115-71400

9451200800

main94512-00800

9451201000

main94512-01000

9451201400

main94512-01400

9453101200

main94531-01200

9453101600

main94531-01600

9538103030

main95381-03030

9538103035

main95381-03035

44 parts on this diagram · 2 diagrams in section
