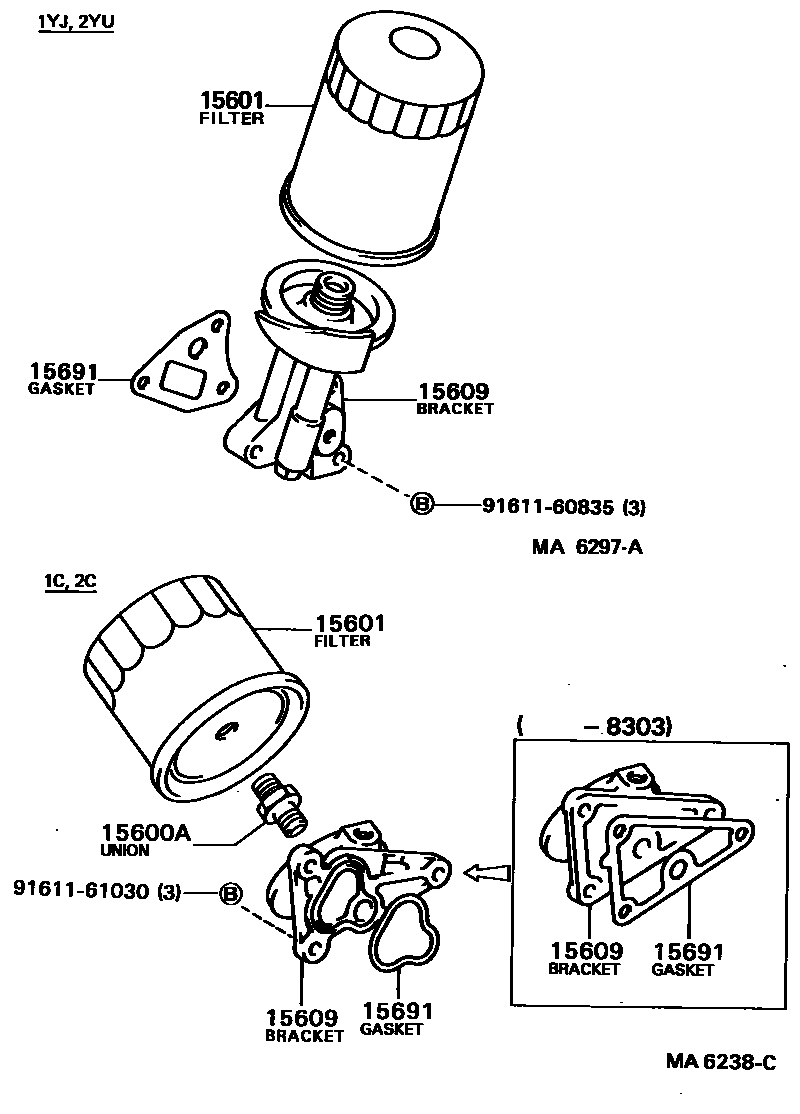

OIL FILTER

0001 1 MA6297A,MA6238C 0002 1 MA3884C,MA4481B

15600AUNION(FOR OIL FILTER)

main90404-19003i1C..CM2#198210-198303

main90404-19004i1C,2C..CM2#198303-198609

main90404-20173i13TU..TM20197910-198210

15601FILTER SUB-ASSY, OIL

main15600-25010i13TU..TM20197910-198609

sub90915-20003

main15601-13010i4KJ..KM2#197910-198305

main15601-13011i4KJ..KM21198305-198609

sub90915-03001

main15601-33020i1YJ,2YU..YM2#198210-198306

main15601-33021i1YJ,2YU..YM2#198306-198609

15609BRACKET SUB-ASSY, OIL FILTER

main15609-71010i1YJ,2YU..YM2#198210-198609

main15671-13040i4KJ..KM2#197910-198609

main15677-64010i1C..CM2#198210-198303

main15677-64030i1C,2C..CM2#198303-198608

main15677-64031i1C,2C..CM2#198608-198609

15691GASKET, OIL FILTER

main15691-22010i4KJ..KM20197910-198203

sub15691-22011

main15691-22011i4KJ..KM2#198203-198609

sub15691-13020

main15691-64011i1C..CM2#198210-198303

sub15691-64012

main15691-64020i1C,2C..CM2#198303-198608

main15691-64030i1C,2C..CM2#198608-198609

sub15691-64040

main15691-71010i1YJ,2YU..YM2#198210-198609

sub15691-71011

9161160835

main91611-60835

9161161030

main91611-61030

6 parts on this diagram · 2 diagrams in section
