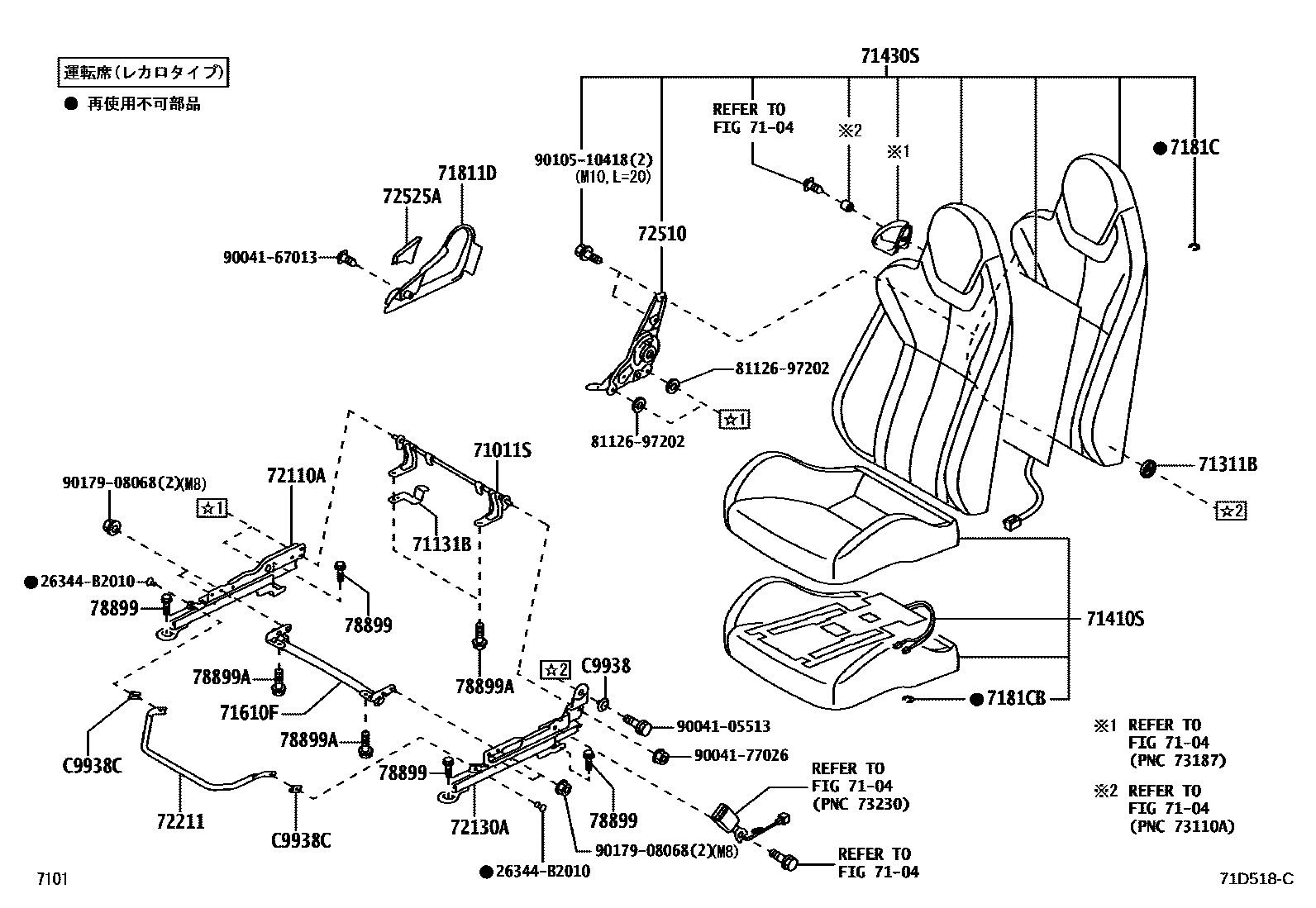

FRONT SEAT & SEAT TRACK

0001 1������(���) 0002 1�������(���)

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71066-B2020iLA400201910

7104

71131BPLATE, FRONT SEAT CUSHION, NO.1

main71131-B2030iLA400201910

71311BBUSH (FOR FRONT SEAT HINGE PIN)

main38892-97201iLA400201910

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-B2130-C1iLA400201910

-,TRIM2#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-B2240-C0iLA400201910

-,TRIM2#

71610FFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71075-B2G80iLA400201910

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-97214-C1iLA400201910

BLACK,TRIM2#

7181CRING, HOG, SMALL (FOR FRONT SEATBACK)

main71812-87201iLA400201910

7181CBRING, HOG, SMALL (FOR FRONT SEAT CUSHION)

main71812-87201iLA400201910

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-B2040iLA400201910

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-B2040iLA400201910

72211HANDLE, SEAT TRACK ADJUSTING

main72211-97209iLA400201910

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-B2020iLA400201910

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-97201-C1iLA400201910

BLACK,TRIM2#

sub72525-97201

78899BOLT, FRONT SEAT

main90041-05495iLA400201910

78899ABOLT, FRONT SEAT

main91511-80820iLA400201910

C9938BUSH

main21552-B2010iLA400201910

C9938CBUSH

main21552-B2020iLA400201910

26344B2010RIVET

main26344-B2010

8112697202PLATE, HEADLAMP

main81126-97202

9004105513

main90041-05513

9004167013

main90041-67013

9004177026

main90041-77026

9010510418

main90105-10418

9017908068

main90179-08068

26 parts on this diagram · 2 diagrams in section
