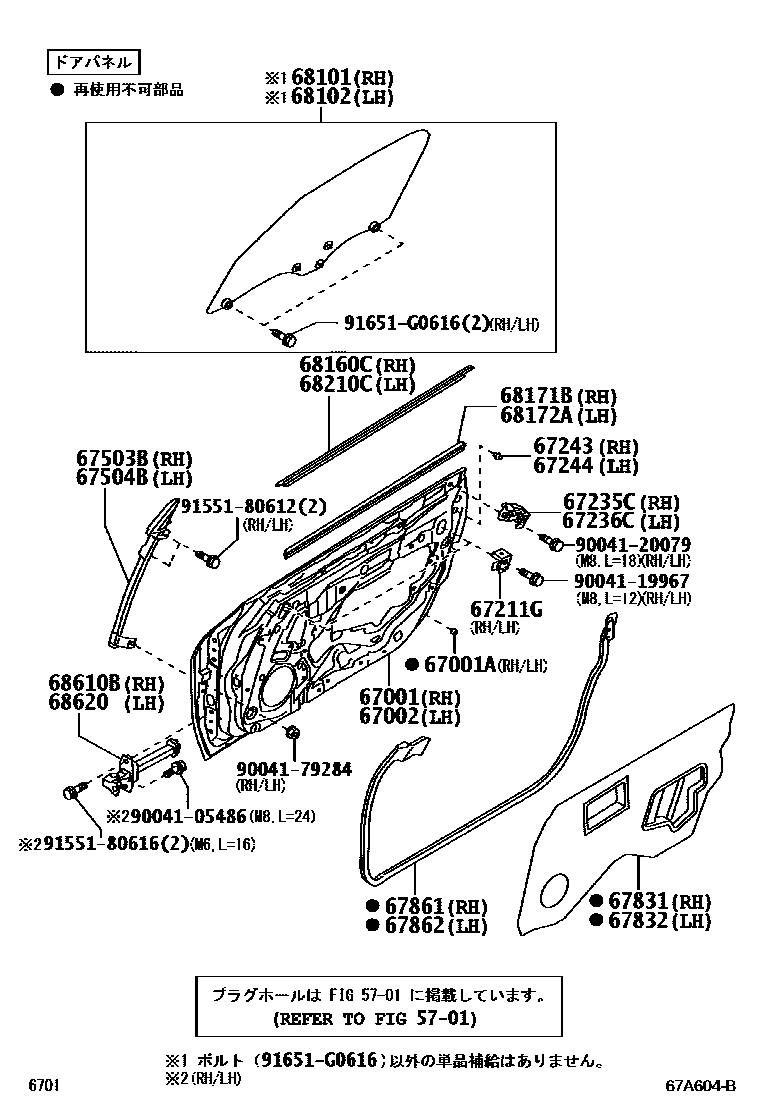

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-B2330iLA400201910

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×2iLA400201910

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-B2330iLA400201910

67211GSTOP, FRONT DOOR WINDOW, UPPER

main67211-97201×4iLA400201910

67235CSTABILIZER, DOOR GLASS FEMALE, RH

main67235-B2011iLA400201910

67236CSTABILIZER, DOOR GLASS FEMALE, LH

main67236-B2011iLA400201910

67243CUSHION, FRONT DOOR, UPPER RH

main90541-09128iLA400201910

67244CUSHION, FRONT DOOR, UPPER LH

main90541-09128iLA400201910

67503BBRACKET SUB-ASSY, FRONT DOOR MIRROR, RH

main67503-B2010iLA400201910

67504BBRACKET SUB-ASSY, FRONT DOOR MIRROR, LH

main67504-B2010iLA400201910

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-B2300iLA400201910

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-B2150iLA400201910

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-B2200iLA400201910

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-B2220iLA400201910

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-B2351iLA400201910

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-B2351iLA400201910

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-B2010iLA400201910

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-B2210iLA400201910

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-B2190iLA400201910

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-B2010iLA400201910

68610BCHECK ASSY, FRONT DOOR, RH

main68610-B2160iLA400201910

68620CHECK ASSY, FRONT DOOR, LH

main68610-B2160iLA400201910

9004105486

main90041-05486

9004119967

main90041-19967

9004120079

main90041-20079

9004179284

main90041-79284

9155180612

main91551-80612

9155180616

main91551-80616

91651G0616

main91651-G0616

30 parts on this diagram · 2 diagrams in section
