MAT & CARPET

58450CCLIP

main90044-68213-C0iLA400201910

BLACK

58471BSILENCER, FRONT FLOOR, REAR NO.1

main67731-B2010iLA400201910

58472BSILENCER, FRONT FLOOR, REAR NO.2

main67731-B2020iLA400201910

58510DCARPET ASSY, FLOOR, FRONT

main58510-B2S20-C0iLA400..CVT201910

CN22 ONAJI,TRIM2#

main58510-B2S30-C0iLA400..5FC201910

CN22 ONAJI,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90044-67397iLA400201910

58540FCLIP(FOR REAR FLOOR CARPET)

main90044-68049-N1×2iLA400201910

BLACK

58570CCARPET ASSY, REAR FLOOR

main58570-B2520-B0iLA400201910

-,TRIM2#

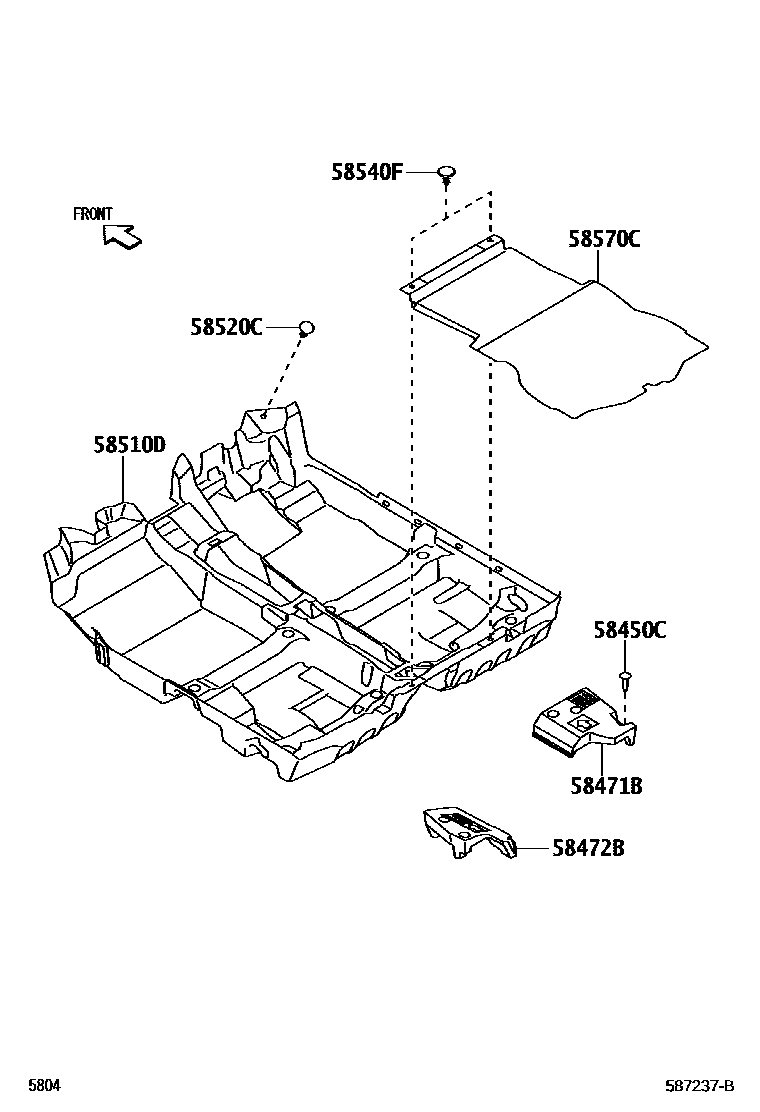

7 parts on this diagram · 1 diagram in section
