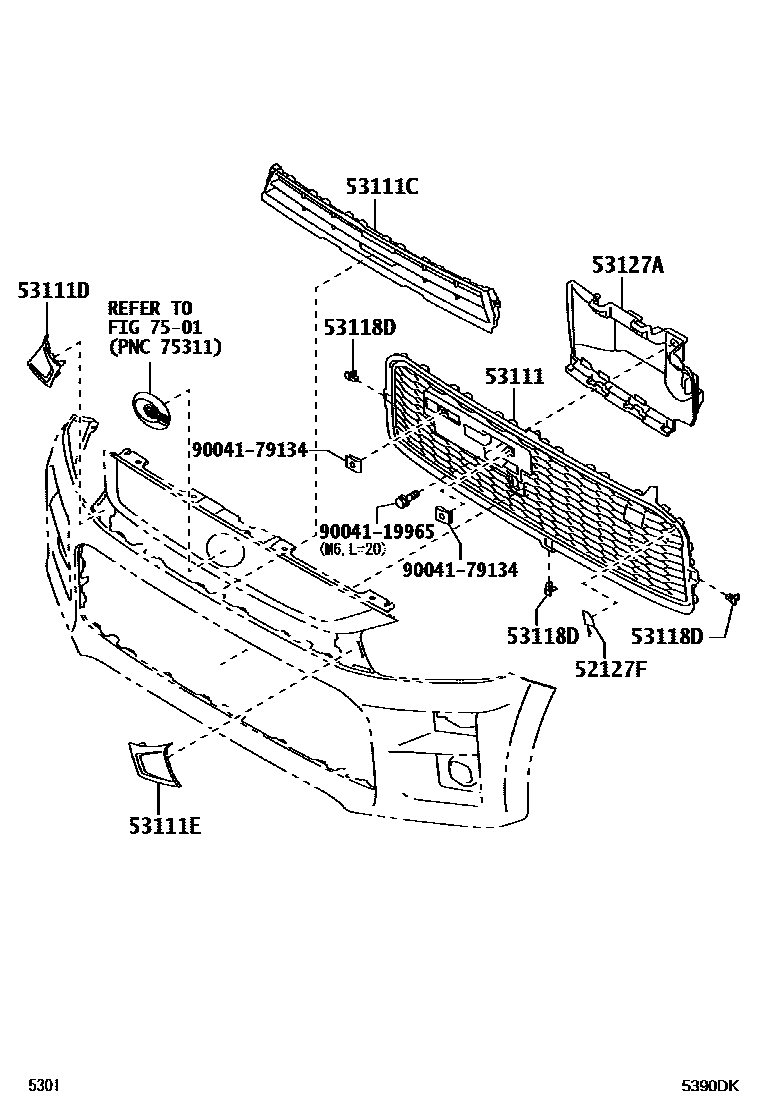

RADIATOR GRILLE

52127FCOVER, FRONT BUMPER HOLE

main52127-B2670iLA400201910

53111GRILLE, RADIATOR

main53111-B2D70iLA400201910

53111CMOULDING, RADIATOR GRILLE, UPPER

main53121-B2240iLA400201910

53111DMOULDING, RADIATOR GRILLE, RH

main53123-B2070iLA400201910

53111EMOULDING, RADIATOR GRILLE, LH

main53124-B2070iLA400201910

53118DRETAINER, RADIATOR GRILLE, NO.2

main76854-87401×3iLA400201910

53127AGRILLE, RADIATOR, LOWER RH

main53127-B2050iLA400201910

7501

9004119965

main90041-19965

9004179134

main90041-79134

10 parts on this diagram · 1 diagram in section
