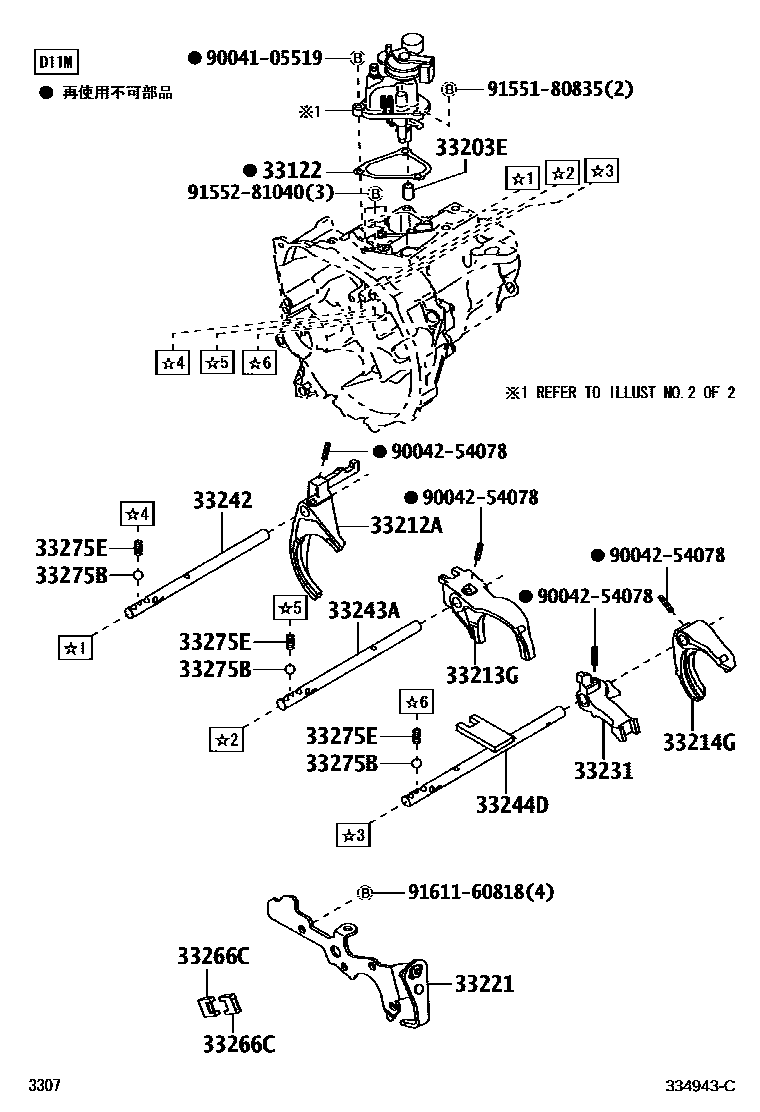

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1��� ��� ���� 0002 1������ ��������

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-B2010iLA400..5FC201910

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33203-B2010iLA400..5FC201910

33203EBUSH(FOR SHIFT LEVER SHAFT)

main33572-B2010iLA400..5FC201910

33212AFORK, GEAR SHIFT, NO.1

main33212-B2010iLA400..5FC201910

33213GFORK, GEAR SHIFT, NO.2

main33213-B2010iLA400..5FC201910

33214GFORK, GEAR SHIFT, NO.3

main33214-B2010iLA400..5FC201910

33221ARM, REVERSE SHIFT

main33201-B2020iLA400..5FC201910

33231HEAD, REVERSE SHIFT

main33231-B2010iLA400..5FC201910

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-B2010iLA400..5FC201910-202404

main33242-B2011iLA400..5FC202404

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-B2010iLA400..5FC201910-202404

main33243-B2011iLA400..5FC202404

33244DSHAFT, GEAR SHIFT FORK, NO.3

main33244-B2010iLA400..5FC201910-202404

main33244-B2011iLA400..5FC202404

33266CPLATE, SHIFT INTERLOCK

main33266-B2010iLA400..5FC201910

33275BBALL, SHAFT DETENT

main90043-60003iLA400..5FC201910

33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90045-01953iLA400..5FC201910

9004105519

main90041-05519

9004254078

main90042-54078

9155180835

main91551-80835

9155281040

main91552-81040

9161160818

main91611-60818

19 parts on this diagram · 2 diagrams in section
