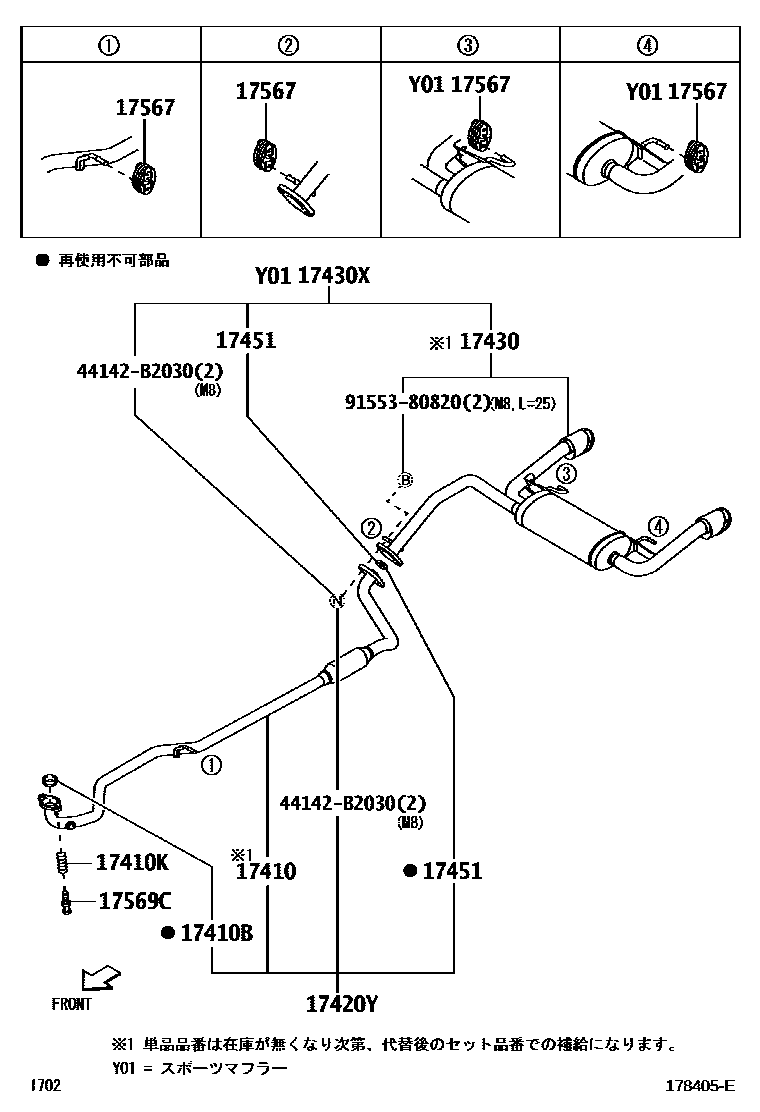

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-B2450iKFVET..LA400201910

17410BGASKET, EXHAUST PIPE

main17451-B1020iKFVET..LA400201910

17410KSPRING, EXHAUST PIPE

main17152-97201×2iKFVET..LA400201910

17420YPIPE SET, EXHAUST, FRONT

main17420-B9330iKFVET..LA400201910

17430PIPE ASSY, EXHAUST, TAIL

main17430-B2450iKFVET..LA400201910

17430XPIPE SET, EXHAUST TAIL

main17430-B9260iKFVET..LA400201910

17451GASKET, EXHAUST PIPE

main90917-06039iKFVET..LA400201910

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-87703×4iKFVET..LA400201910

17569CBOLT, EXHAUST PIPE SUPPORT

main17569-97201×2iKFVET..LA400201910

44142B2030NUT, LOCK

main44142-B2030

9155380820

main91553-80820

11 parts on this diagram · 1 diagram in section
