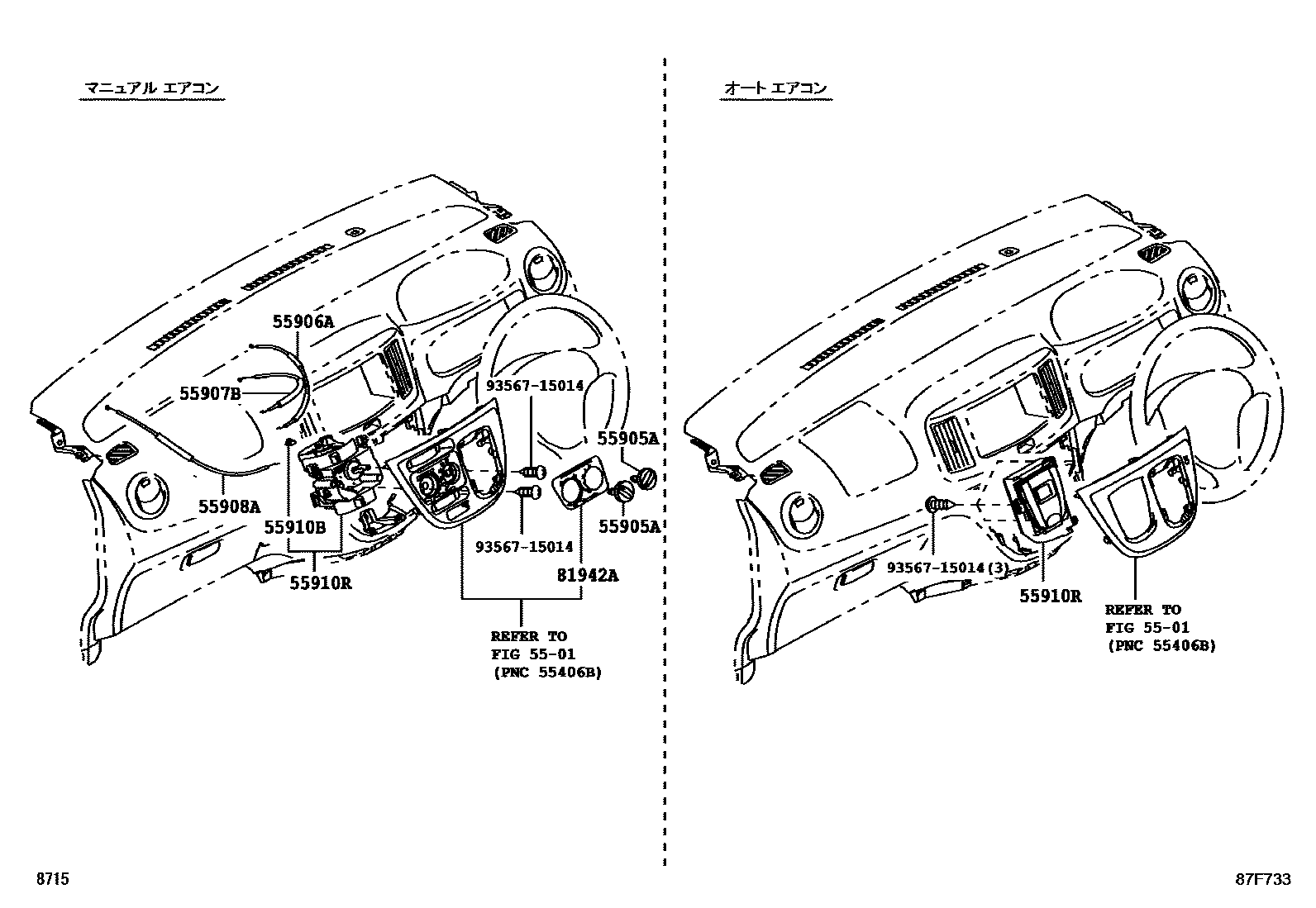

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1

5501

55905AKNOB, HEATER CONTROL

main55905-B2190iLA300,310..D,L,LF,X,XF201204-201307

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-B2210iLA300,310..D,L,LF,X,XF201204-201704

55907BCABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL

main55907-B2200iLA300,310..D,L,LF,X,XF201204-201704

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-B2210iLA300,310..D,L,LF,X,XF201204-201704

55910BBULB, HEATER CONTROL

main81936-B2040iLA300,310..D,L,LF,X,XF201204-201307

55910RCONTROL ASSY, HEATER

main55910-B1160iLA300,310..D,L,LF,X,XF201603

main55910-B2320iLA300,310..D,L,LF,X,XF201204-201602

sub55910-B1160

main55910-B2530-B0iLA300,310..G,GF201204-201211

MD.GRAY,TRIM1#

sub55910-B2533

main55910-B2531-B0iLA300,310..G,GF201211-201212

MD.GRAY,TRIM1#

sub55910-B2551

main55910-B2551-B0iLA300,310..G,GF201301-201603

MD.GRAY,TRIM1#

sub55910-B2552

main55910-B2552-B0iLA300,310..G,GF201604

MD.GRAY,TRIM1#

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-B2460iLA300,310..D,L,LF,X,XF201204-201307

9356715014

main93567-15014

9 parts on this diagram · 3 diagrams in section
