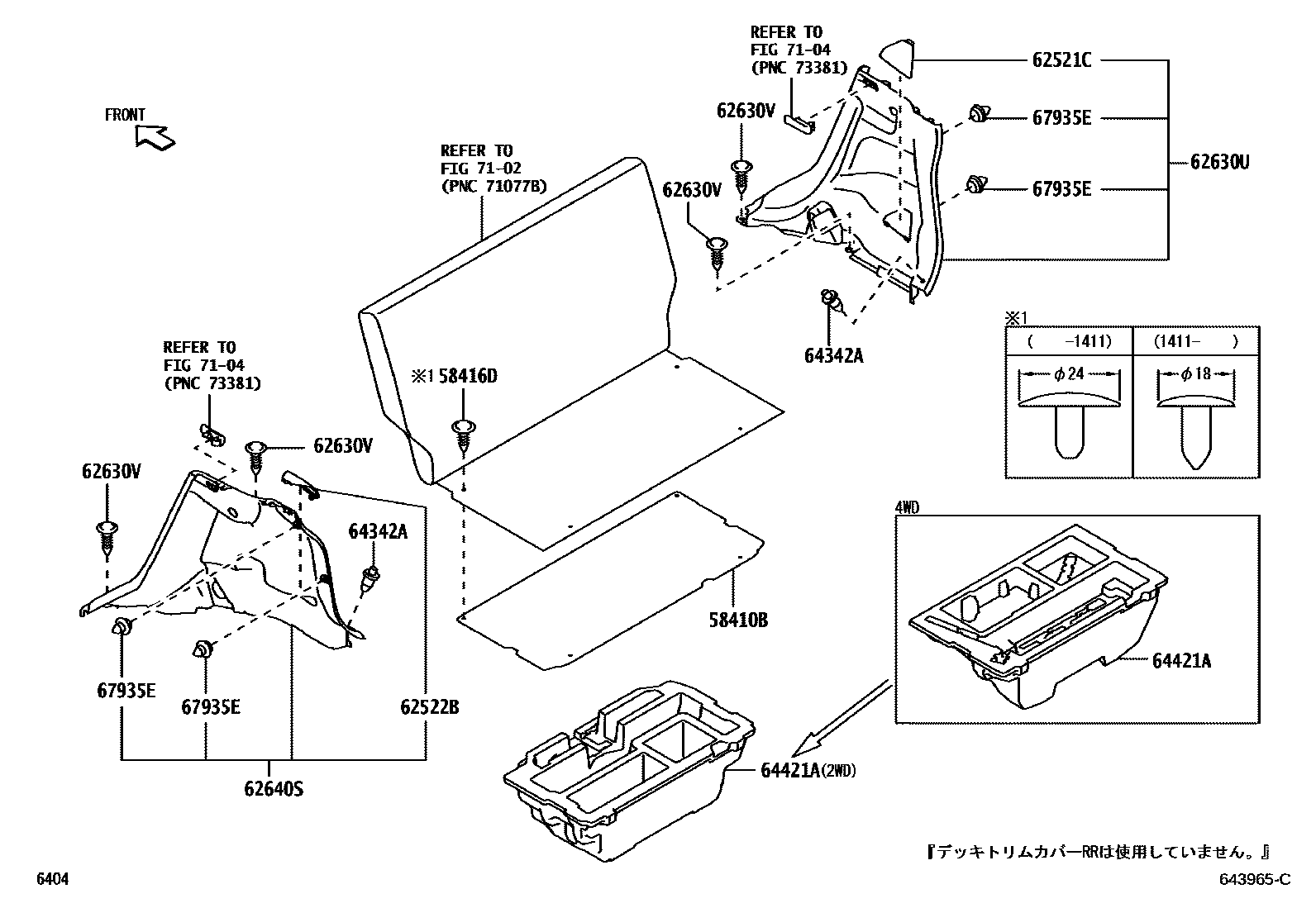

DECK BOARD & DECK TRIM COVER

58410BBOARD ASSY, DECK

main58410-B2320iLA300,310201204-201307

58416DCLIP, REAR FLOOR BOARD

main64726-B2020-B0iLA300,310201411-201611

DK.GRAY,TRIM1#

sub71334-B2030

main64726-B2020-C1iLA300,310201611-201704

BLACK,TRIM1#

sub71334-B2030

main90044-68028-B0iLA300,310201204-201411

DK.GRAY,TRIM1#

sub90044-68028

62521CCOVER, QUARTER TRIM RH

main62521-B2060-B0iLA300,310201204-201307

WARM GRAY,TRIM1#

62522BCOVER, QUARTER TRIM LH

main62521-B2060-B0iLA300,310201204-201307

WARM GRAY,TRIM1#

62630UPANEL ASSY, QUARTER TRIM, REAR RH

main62630-B2390-B0iLA300,310201204-201307

WARM GRAY,TRIM1#

62630VCLIP (FOR QUARTER REAR TRIM)

main90044-68046-B2iLA300,310201204-201611

DK.GRAY,TRIM1#

sub90044-68046

main90044-68046-C2iLA300,310201611

BLACK,TRIM1#

sub90044-68046

62640SPANEL ASSY, QUARTER TRIM, REAR LH

main62640-B2470-B0iLA300,310201204-201307

WARM GRAY,TRIM1#

64342ACLIP

main90044-67579-B0iLA300,310201204-201611

DK.GRAY,TRIM1#

main90044-67579-C2iLA300,310201611

BLACK,TRIM1#

64421ATRAY, LUGGAGE COMPARTMENT

main64421-B2110iLA300201204-201307

main64421-B2120iLA310201204-201307

67935ERETAINER, DOOR TRIM

main67771-B2010iLA300,310201204-201307

7102

7104

12 parts on this diagram · 1 diagram in section
