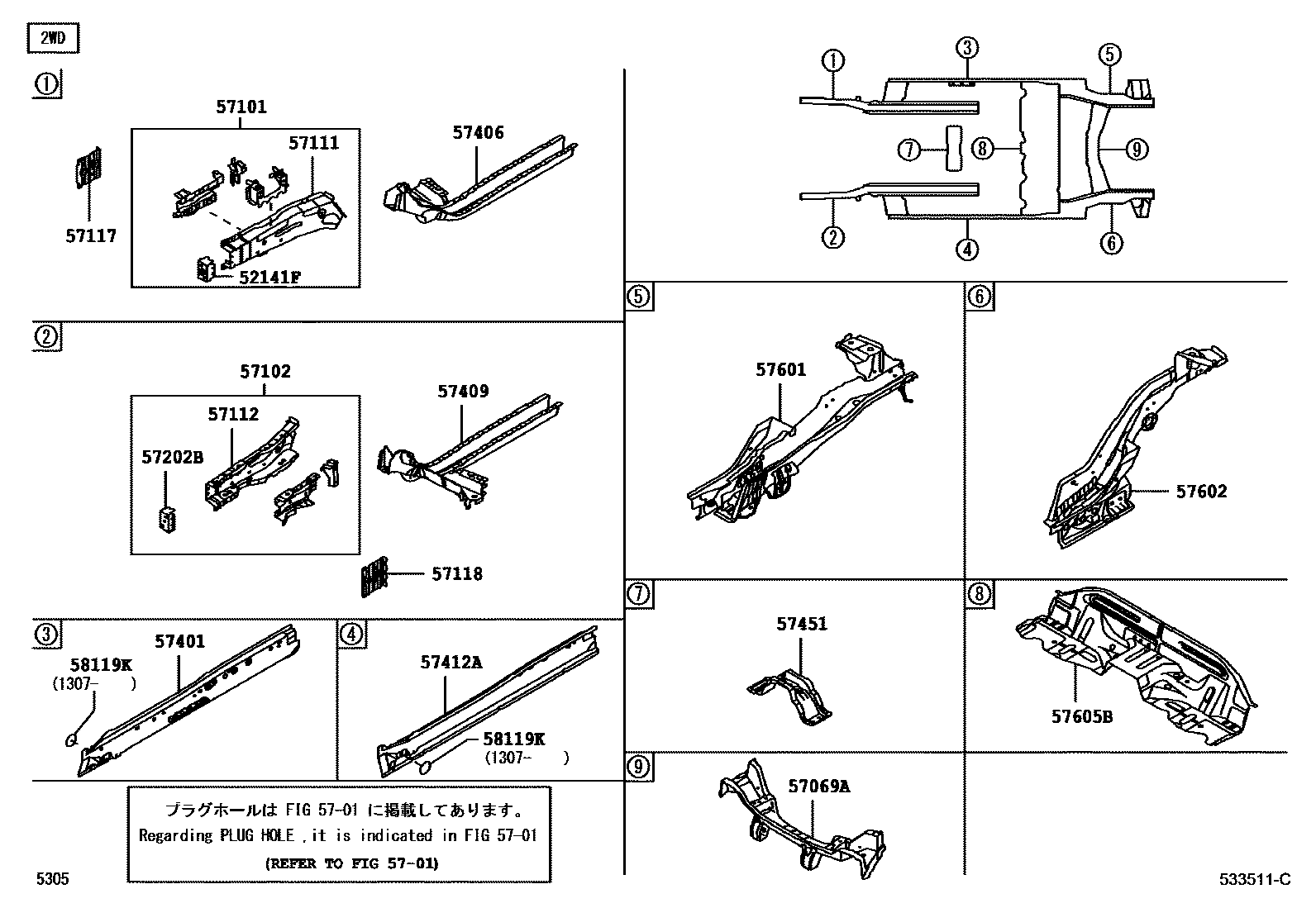

FLOOR SIDE MEMBER

0001 12WD 0002 14WD

52141FARM, FRONT BUMPER, RH

main52141-B2030iLA300,310201204-201307

5701

57069AMEMBER, REAR FLOOR, CENTER

main57069-B2290iLA300201307

main57069-B2310iLA310201307

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-B2130iLA300,310201204-201307

sub57101-B2230

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-B2210iLA300,310201204-201307

57111MEMBER, FRONT SIDE, RH

main57111-B2040iLA300,310201204-201307

57112MEMBER, FRONT SIDE, LH

main57112-B2050iLA300,310201204-201307

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-B2020iLA300,310201307

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57117-B2020iLA300,310201307

57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main53078-B2070iLA300,310201204-201307

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-B2140iLA300201307

main57401-B2160iLA300,310201204-201207

main57401-B2161iLA300,310201208-201307

57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-B2080iLA300,310201305-201307

main57406-B2170iLA300,310201204-201304

57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-B2090iLA300,310201305-201307

main57409-B2190iLA300,310201204-201304

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-B2140iLA300201307

main57412-B2060iLA310201307-201505

main57412-B2110iLA310201505

57451MEMBER, FRONT FLOOR CROSS

main57451-B2090iLA300201204-201307

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-B2270iLA300201204-201206

main57601-B2271iLA300201307

main57601-B2300iLA310201204-201206

main57601-B2301iLA310201307

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-B2270iLA300201204-201206

main57602-B2271iLA300201207-201307

main57602-B2300iLA310201204-201206

main57602-B2301iLA310201207-201307

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-B2190iLA300201204-201307

main57605-B2200iLA310201307

58119KCOVER, FRONT FLOOR SIDE, FRONT

main58119-B2050iLA300,310201307

19 parts on this diagram · 2 diagrams in section
