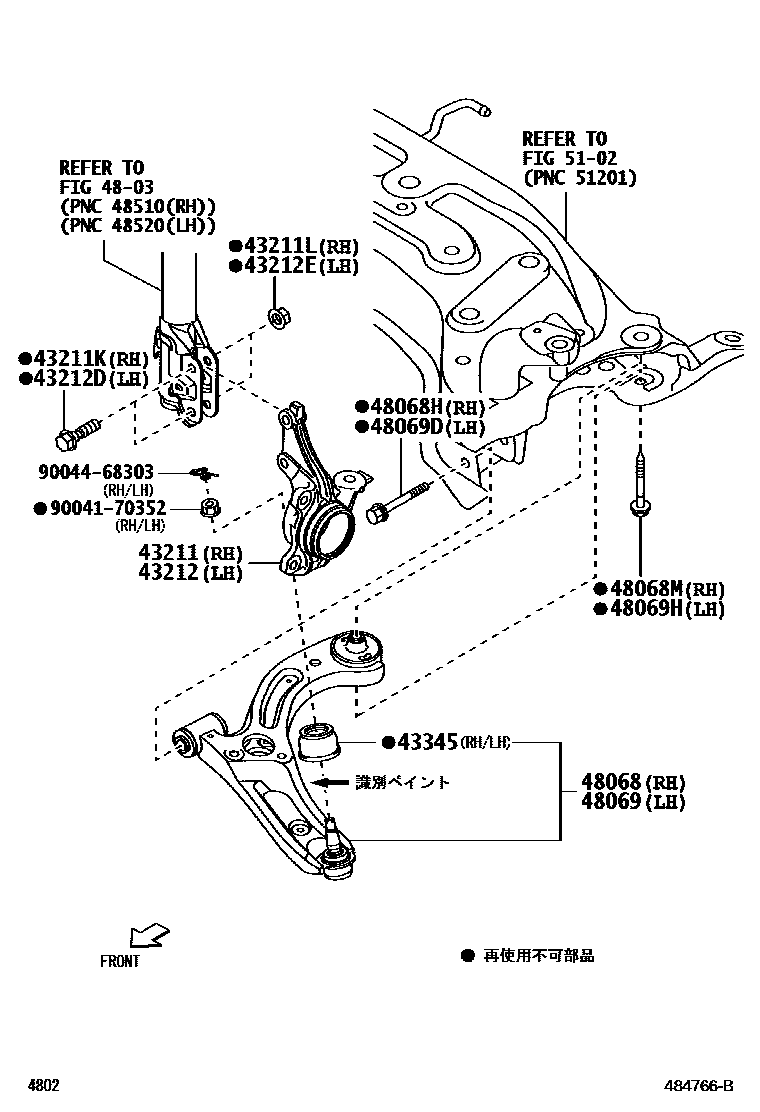

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-B2090iLA300,310201204-201205

sub43211-B2091

main43211-B2091iLA300,310201205-201704

43211KBOLT (FOR STEERING KNUCKLE RH)

main90041-01652iLA300,310201204-201704

43211LNUT (FOR STEERING KNUCKLE RH)

main90041-70393iLA300,310201204-201307

43212KNUCKLE, STEERING, LH

main43212-B2090iLA300,310201204-201205

sub43212-B2091

main43212-B2091iLA300,310201205-201307

43212DBOLT (FOR STEERING KNUCKLE LH)

main90041-01652iLA300,310201204-201307

43212ENUT (FOR STEERING KNUCKLE LH)

main90041-70393iLA300,310201204-201307

43345COVER, LOWER BALL JOINT DUST

main43345-B2010iLA300,310201204-201601

sub43345-B2011

main43345-B2011iLA300,310201602

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-B2130iLA300,310201307

main48068-B2130iLA300,310201306-201307

main48068-B2160iLA300,310201204-201208

sub48068-B2161

main48068-B2161iLA300,310201209-201306

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90041-20192iLA300,310201204-201307

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90041-05388iLA300,310201204-201205

sub90041-05475

main90041-05475iLA300,310201205-201704

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-B2160iLA300,310201204-201208

sub48069-B2161

main48069-B2161iLA300,310201209-201306

main48069-B2190iLA300,310201306-201307

main48069-B2190iLA300,310201307

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90041-20192iLA300,310201204-201307

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90041-05388iLA300,310201204-201205

sub90041-05475

main90041-05475iLA300,310201205-201704

5102

9004170352

main90041-70352

9004468303

main90044-68303

17 parts on this diagram · 1 diagram in section
