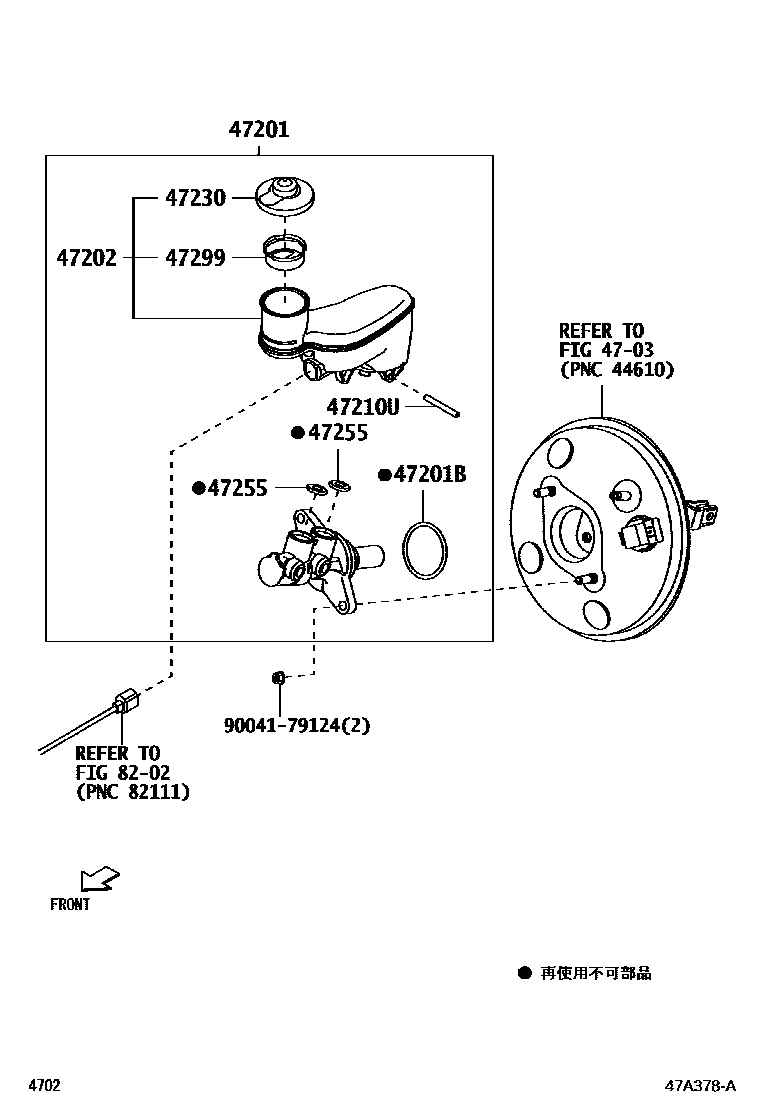

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-B2190iLA300,310¥17,000201204-201708

sub47201-B2191¥21,700

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90043-01352iLA300,310¥110201204-201307

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-B2110iLA300,310¥3,820201204-201307

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90042-43029iLA300,310¥150201204-201307

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-B4010iLA300,310¥1,000201204-201307

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-B2050iLA300,310¥260201204-201307

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-B2030iLA300,310¥620201204-201307

8202

9004179124

main90041-79124¥170

10 parts on this diagram · 1 diagram in section
