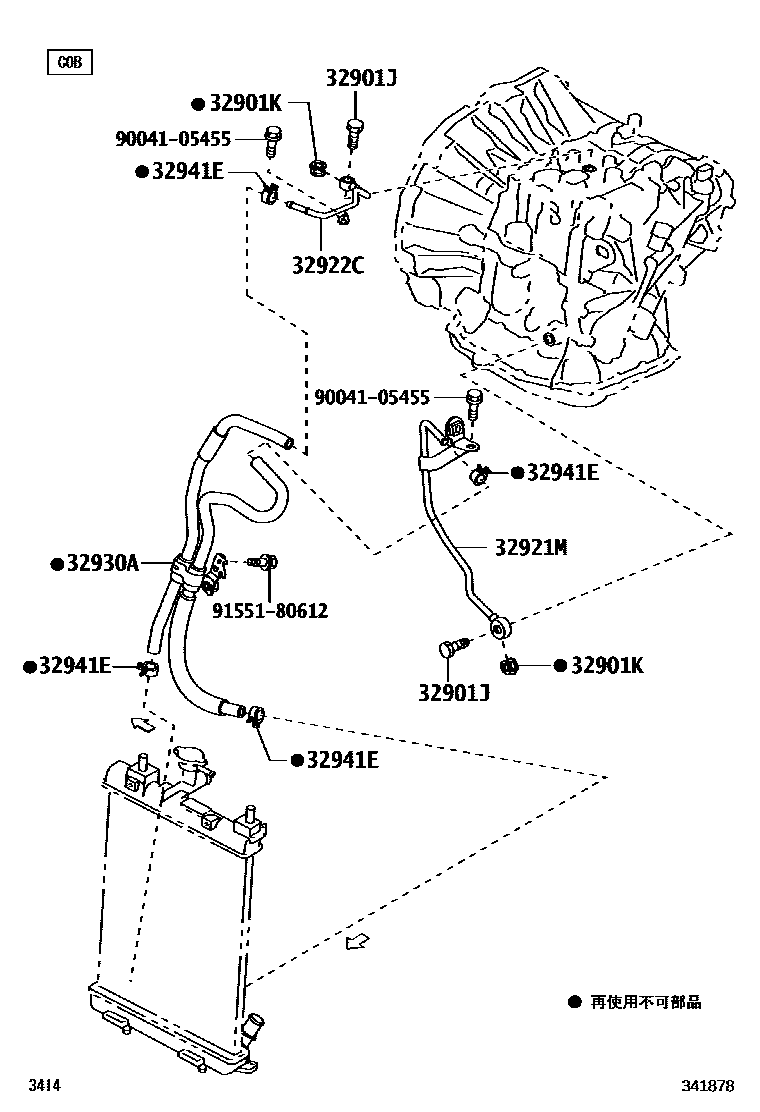

OIL COOLER & TUBE(CVT)

0001 1C0B 0002 1C0B

32901JBOLT, UNION(FOR OIL COOLER)

main90044-01081iLA300,310201204-201307

32901KGASKET(FOR OIL COOLER UNION)

main90044-30329iLA300,310201204-201307

32921MTUBE, OIL COOLER INLET, NO.1

main32904-B2040iLA300,310201204-201307

main32904-B2070iLA300,310201307

32922CTUBE, OIL COOLER OUTLET, NO.1

main32905-B2070iLA300,310201204-201307

main32905-B2080iLA300,310201307

32930AHOSE ASSY, TRANSMISSION OIL COOLER

main32940-B2080iLA300,310201204-201307

32941ECLIP(FOR OIL COOLER TUBE)

main90044-67576iLA300,310201204-201307

9004105455

main90041-05455

9155180612

main91551-80612

8 parts on this diagram · 2 diagrams in section
