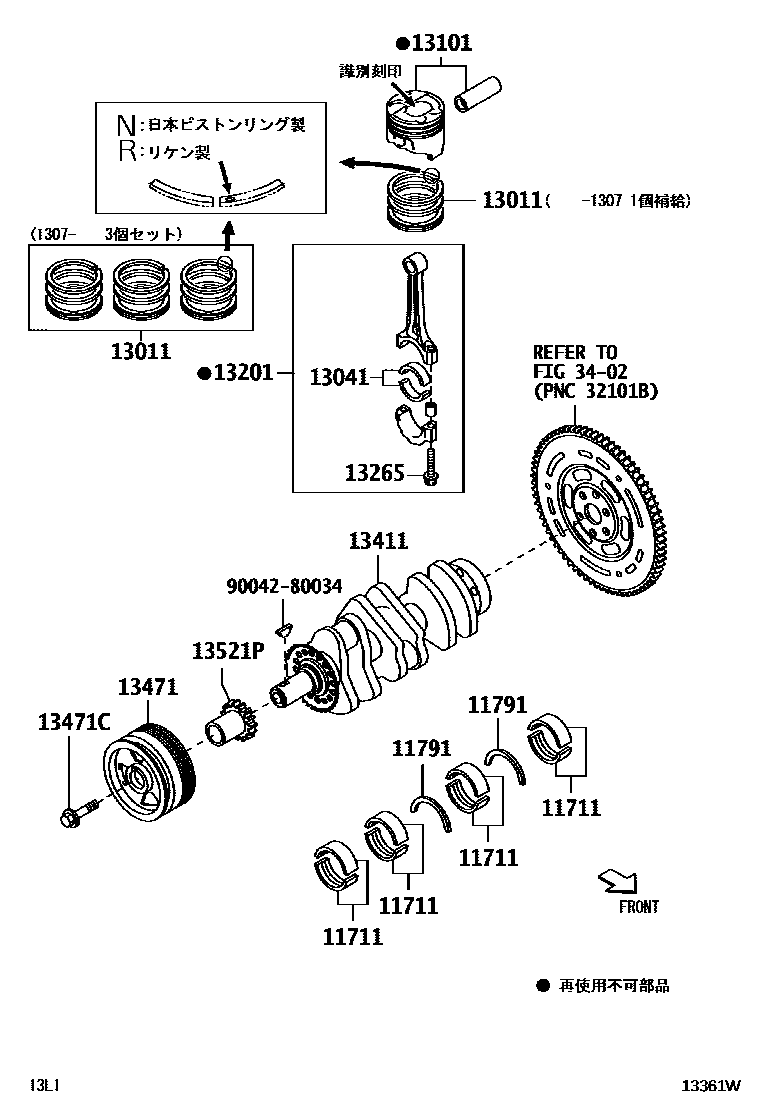

CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-B2011-02iKFVE..LA300,310201204-201704

main11701-B2011-03iKFVE..LA300,310201204-201704

main11701-B2011-04iKFVE..LA300,310201204-201704

main11701-B2011-05iKFVE..LA300,310201204-201704

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-B2010iKFVE..LA300,310201204-201610

main11791-B2020iKFVE..LA300,310201611

13011RING SET, PISTON

main13011-B2043iKFVE..LA300,310201307

sub13011-B2170

main13011-B2091iKFVE..LA300,310201204-201307

sub13011-B2023

sub13101-B2160

13041BEARING, CONNECTING ROD

main13041-B2010-01iKFVE..LA300,310201204-201704

main13041-B2010-02iKFVE..LA300,310201204-201704

main13041-B2010-03iKFVE..LA300,310201204-201704

13101PISTON SUB-ASSY, W/PIN

main13101-B2190iKFVE..LA300,310201407-201509

sub13101-B2191

main13101-B2191iKFVE..LA300,310201510-201703

sub13101-B2210

main13101-B2210iKFVE..LA300,310201703

main13101-B2230iKFVE..LA300,310201204-201307

sub13101-B2160

sub13011-B2023

main13101-B2231iKFVE..LA300,310201307-201407

sub13101-B2232

13201ROD SUB-ASSY, CONNECTING

main13201-B9060iKFVE..LA300,310201204-201307

13265BOLT, CONNECTING ROD

main13265-B9020iKFVE..LA300,310201204-201307

13411CRANKSHAFT

main13401-B2010iKFVE..LA300,310201204-201307

sub13401-B2050

13471PULLEY, CRANKSHAFT

main13470-B2011iKFVE..LA300,310201204-201307

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90041-05369iKFVE..LA300,310201204-201307

sub90041-05587

13521PPULLEY, CRANKSHAFT TIMING

main13521-B2020iKFVE..LA300,310201204-201307

3402

9004280034

main90042-80034

13 parts on this diagram · 1 diagram in section
