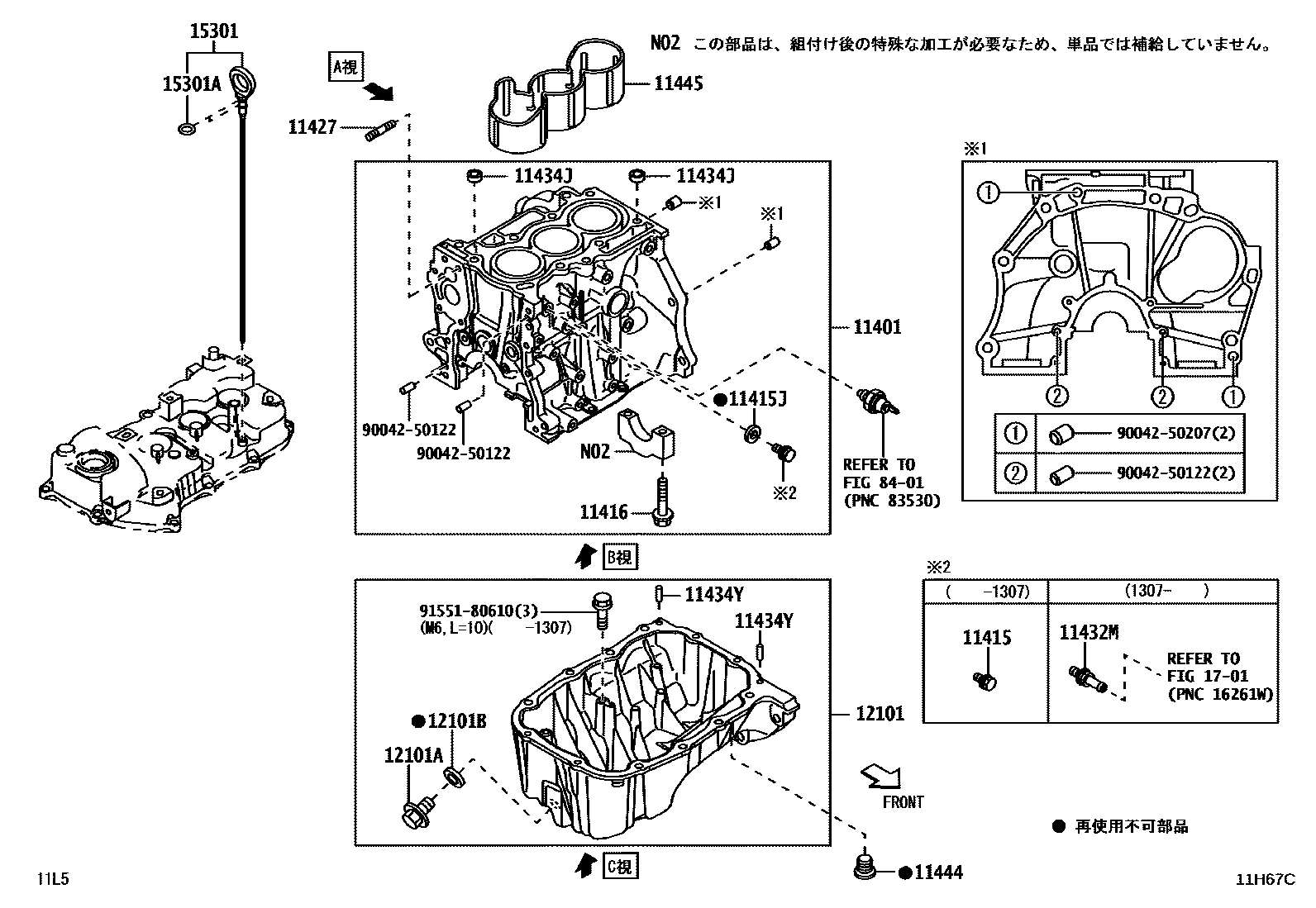

CYLINDER BLOCK

0001 1 0002 1 0003 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-B2190iKFVE..LA300,310201307

main11401-B2231iKFVE..LA300,310201204-201307

sub11401-B2232

sub11495-B9010

sub89439-B2071

sub91671-80614

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90043-41088iKFVE..LA300,310201204-201307

11415JGASKET(FOR DRAIN COCK)

main90044-30279iKFVE..LA300,310201204-201307

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90041-05368iKFVE..LA300,310201204-201307

11427BOLT, STUD(FOR TIMING CHAIN COVER SET)

main90041-16498iKFVE..LA300,310201204-201307

11432MUNION(FOR CYLINDER BLOCK)

main90044-04155iKFVE..LA300,310201307-201608

sub90044-04158

main90044-04158iKFVE..LA300,310201609

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90042-53013iKFVE..LA300,310201204-201307

11434YPIN, STRAIGHT(FOR OIL PAN)

main90042-50122iKFVE..LA300,310201307

main90250-06003iKFVE..LA300,310201204-201307

11444PLUG, HOLE

main11444-B2010iKFVE..LA300,310201204-201307

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-B2030iKFVE..LA300,310201204-201307

12101PAN SUB-ASSY, OIL

main12101-B2024iKFVE..LA300,310201204-201307

sub12101-B2025

sub90041-26005

sub90041-26006

sub90041-79338

sub91671-80828

main12101-B2025iKFVE..LA300,310201307-201704

12101APLUG(FOR OIL PAN DRAIN)

main90043-41087iKFVE..LA300,310201204-201307

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90044-30281iKFVE..LA300,310201204-201307

15301GAGE SUB-ASSY, OIL LEVEL

main15301-B2060iKFVE..LA300,310201204-201307

sub15301-B2061

main15301-B2061iKFVE..LA300,310201307

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005iKFVE..LA300,310201204-201704

1701

8401

9004250122

main90042-50122

9004250207

main90042-50207

9155180610

main91551-80610

20 parts on this diagram · 3 diagrams in section
