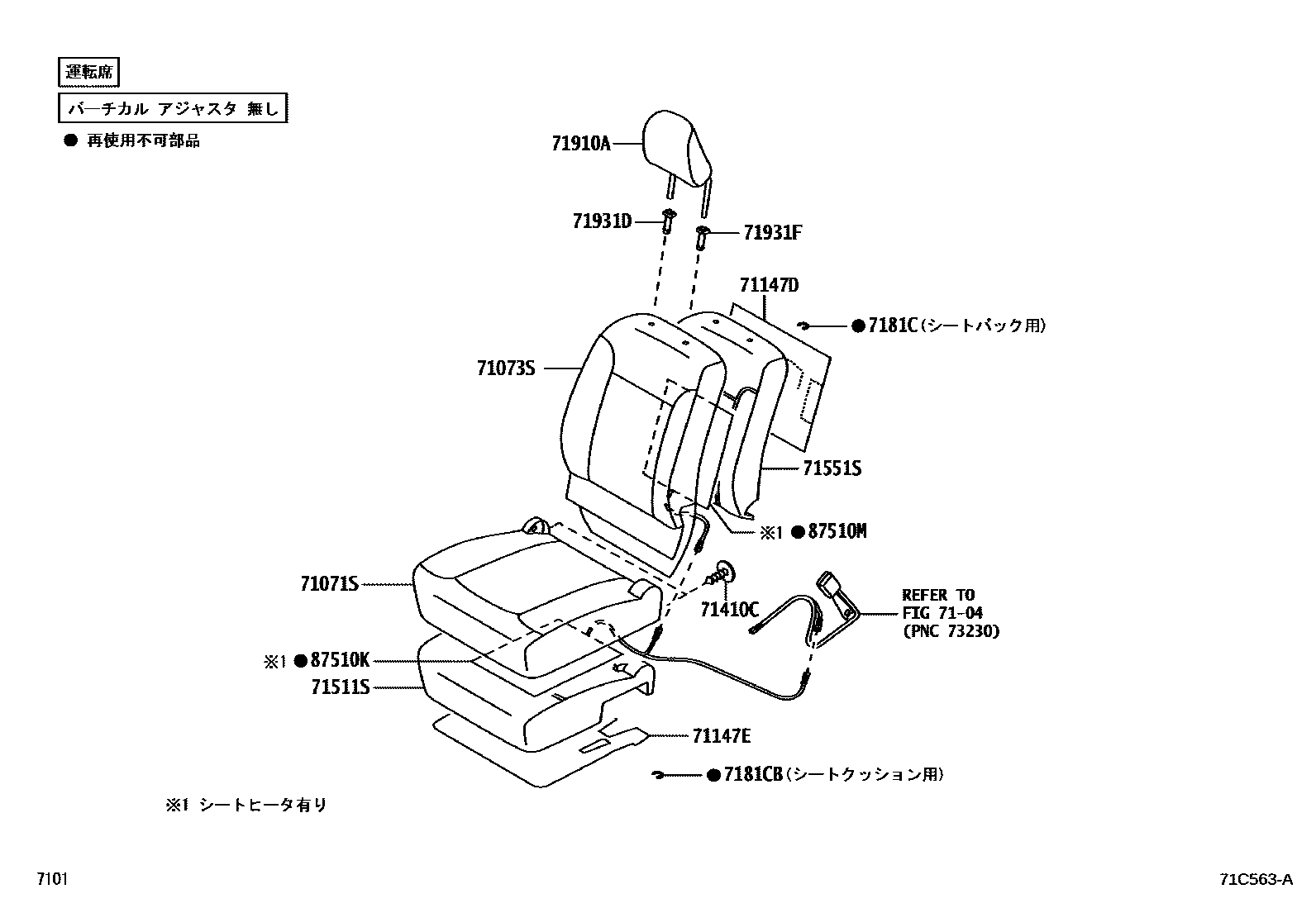

FRONT SEAT & SEAT TRACK

0001 1������(������ ������ ��) 0002 1������(������������ ��) 0003 1������(������ ������ ��) 0004 1������(������ ������ ��) 0005 1������� 0006 1�������

7104

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-B2J70-C0iLA250,260..CX201609-201706

-,TRIM1#,2#

sub71071-B2J71

main71071-B2J70-C0iLA250,260..CX201609-201706

sub71071-B2J71

main71071-B2J71-C0iLA250,260..FX201707-201710

main71071-B2J71-C0iLA250,260..FX201707-201710

BLACK,TRIM1#,2#

main71071-B2M90-C0iLA250,260..FX201609-201706

sub71071-B2M91

main71071-B2M90-C0iLA250,260..FX201609-201706

sub71071-B2M91

main71071-B2M90-C0iLA250,260..CG,CGT201609-201706

-,TRIM1#,2#

sub71071-B2M91

main71071-B2M90-C0iLA250,260..CG,CGT201609-201706

sub71071-B2M91

main71071-B2M91-C0iLA260..CG,CGT;LA260..CX..PS2;LA250..(CG,CGT)..PS1;LA250..(CG,CGT,CX)..PS2201707-202001

BLACK,TRIM1#,2#

main71071-B2N00-E0iLA250,260..FX201609-201710

-,TRIM4#

main71071-B2N10-E0iLA250..FG,FGT;LA250..FX..PS2;LA260..(FG,FGT)..PS1;LA260..(FG,FGT,FX)..PS2201609

-,TRIM4#

main71071-B2N21-C3iLA250,260..S201609-201709

BLACK,TRIM1#

main71071-B2N21-C3iLA250,260..CG,CGT201609-201709

main71071-B2N21-C3iLA250,260..CG,CGT201609-201709

main71071-B2R60-C1iLA250,260..CG,CGT201709-202001

BLACK,TRIM1#

main71071-B2R60-C1iLA250,260..CG,CGT201709-202001

main71071-B2R60-C1iLA250,260..CG,CGT201709-201710

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71027-B2C40-C0iLA250,260..FX201609-201706

sub71027-B2C41

main71027-B2C40-C0iLA250,260..FG,FGT201609-201706

sub71027-B2C41

main71027-B2C40-C0iLA250,260..FG,FGT201609-201706

sub71027-B2C41

main71027-B2C40-C0iLA250,260..FG,FGT201609-201706

-,TRIM1#,2#

sub71027-B2C41

main71027-B2C41-C0iLA250,260..CG,CGT,CX201707-202001

BLACK,TRIM1#,2#

main71027-B2C60-E0iLA250,260..FG,FGT,FX201609

-,TRIM4#

main71027-B2C80-C2iLA250,260..CG,CGT201609-201709

main71027-B2C80-C2iLA250,260..CG,CGT201609-201709

main71027-B2C80-C2iLA250,260..CG,CGT201609-201709

-,TRIM1#

main71027-B2F10-C1iLA250,260..CG,CGT201709-202001

main71027-B2F10-C1iLA250,260..CG,CGT201709-201710

main71027-B2F10-C1iLA250,260..CG,CGT201709-202001

BLACK,TRIM1#

71147DSILENCER, SEAT SPRING, RH(FOR SEATBACK)

main71147-B2100iLA250,260201609-201905

main71147-B2140iLA250,260..FG,FGT,FX201906-202001

71147ESILENCER, SEAT SPRING, RH(FOR SEAT CUSHION)

main71147-B1020iLA250,260..CG,CGT,CX,S201609-202001

71410CCLIP(FOR FRONT SEAT CUSHION)

main90044-68185-B1iLA250,260..CX201609-201705

main90044-68185-B1iLA250,260..FX201609-201705

DK.GRAY,TRIM1#,2#

main90044-68185-B1iLA250,260..FX201609-201705

DK.GRAY,TRIM1#,4#

main90044-68185-B1iLA250,260..FX201609-201705

DK.GRAY,TRIM1#

main90044-68185-B1iLA250,260..FX201609-201705

main90044-68185-B1iLA250,260..FX201609-201705

main90044-68185-B1iLA250,260..FX201609-201705

main90044-68185-B1iLA250,260..FX201609-201705

main90044-68185-C1iLA250,260..FG,FGT201705-201710

BLACK,TRIM1#,4#

main90044-68185-C1iLA250,260..CX201705-201710

main90044-68185-C1iLA250,260..CX201705-201710

main90044-68185-C1iLA250,260..CX201705-201710

main90044-68185-C1iLA250,260..CX201705-201710

main90044-68185-C1iLA250,260..CX201705-201710

main90044-68185-C1iLA250,260..FX201705-202001

BLACK,TRIM1#,2#

main90044-68185-C1iLA250,260..S201705-202001

BLACK,TRIM1#

main90044-68185-C1iLA250,260..FG,FGT,FX201710

BLACK,TRIM3#,4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-B2A30iLA250,260..FG,FGT,FX201609-202001

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-B2C20iLA250,260..FG,FGT,FX201609-202001

main71505-B2C30iLA250,260..S201609-202001

7181CRING, HOG, SMALL (FOR FRONT SEATBACK)

main71812-87201iLA250,260..CG,CGT,CX,S201609-202001

7181CBRING, HOG, SMALL (FOR FRONT SEAT CUSHION)

main71812-87201iLA250,260..CG,CGT,CX,S201609-202001

71910AHEADREST ASSY, FRONT SEAT

main71910-B2E70-C3iLA250,260..CG,CGT,CX201609-202001

BLACK,TRIM1#,2#

main71910-B2E80-E0iLA250,260..FG,FGT,FX201609

GREGE,TRIM4#

main71910-B2E90-C1iLA250,260..S201609-201709

main71910-B2E90-C1iLA250,260..CG,CGT201609-201709

BLACK,TRIM1#

main71910-B2E90-C1iLA250,260..CG,CGT201609-201709

main71910-B2G10-C1iLA250,260..S201709-201812

BLACK,TRIM1#

main71910-B2G10-C1iLA250,260..CG,CGT201709-201812

main71910-B2G10-C1iLA250,260..CG,CGT201709-201710

main71910-B2G10-C1iLA250,260..S201710-201812

main71910-B2G10-C2iLA250,260..S201812-202001

main71910-B2G10-C2iLA250,260..CG,CGT201812-202001

BLACK,TRIM1#

71931DSUPPORT, FRONT SEAT HEADREST, RH

main71931-B2010-A0iLA250,260..S201609-201710

sub71931-B2010

main71931-B2010-A0iLA250,260..S201609-201710

WHITE,TRIM17

sub71931-B2010

main71931-B2010-A0iLA250,260..S201609-201710

sub71931-B2010

main71931-B2010-B0iLA250,260..S201609-201611

DK.GRAY,TRIM14

sub71931-B2010

main71931-B2010-B0iLA250,260..S201609-201611

DK.GRAY,TRIM1#,2#

sub71931-B2010

main71931-B2010-B0iLA250,260..S201609-201611

DK.GRAY,TRIM1#

sub71931-B2010

main71931-B2010-C1iLA250,260..S201611-201710

BLACK,TRIM14

sub71931-B2010

main71931-B2010-C1iLA250,260..CG,CGT,CX201611-202001

BLACK,TRIM1#,2#

sub71931-B2010

main71931-B2010-C1iLA250,260..CG,CGT,CX201611-202001

BLACK,TRIM1#

sub71931-B2010

main71931-B2010-E1iLA250,260..FG,FGT,FX201609

LINEN BEIGE,TRIM4#

sub71931-B2010

71931FSUPPORT, FRONT SEAT HEADREST, LH

main71930-B2010-A0iLA250,260..S201609-201710

sub71930-B2010

main71930-B2010-A0iLA250,260..S201609-201710

WHITE,TRIM17

sub71930-B2010

main71930-B2010-A0iLA250,260..S201609-201710

sub71930-B2010

main71930-B2010-B0iLA250,260..S201609-201611

DK.GRAY,TRIM1#,2#

sub71930-B2010

main71930-B2010-B0iLA250,260..S201609-201611

DK.GRAY,TRIM1#

sub71930-B2010

main71930-B2010-B0iLA250,260..CG,CGT,CX201609-201611

DK.GRAY,TRIM14

sub71930-B2010

main71930-B2010-C1iLA250,260..S..PS2;LA250,260..(FG,FGT,FX)..PS1201611-202001

BLACK,TRIM1#,2#

sub71930-B2010

main71930-B2010-C1iLA250,260..CG,CGT,CX201611-202001

BLACK,TRIM1#

sub71930-B2010

main71930-B2010-C1iLA250,260..S201611-201710

BLACK,TRIM14

sub71930-B2010

main71930-B2010-E1iLA250,260..FG,FGT,FX201609

LINEN BEIGE,TRIM4#

sub71930-B2010

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-B2110iLA250,260..S201609-202001

87510MHEATER ASSY, FRONT SEATBACK, RH

main87530-B2110iLA250,260..S201609-202001

main87530-B2110iLA250,260..S201609-202001

15 parts on this diagram · 6 diagrams in section
