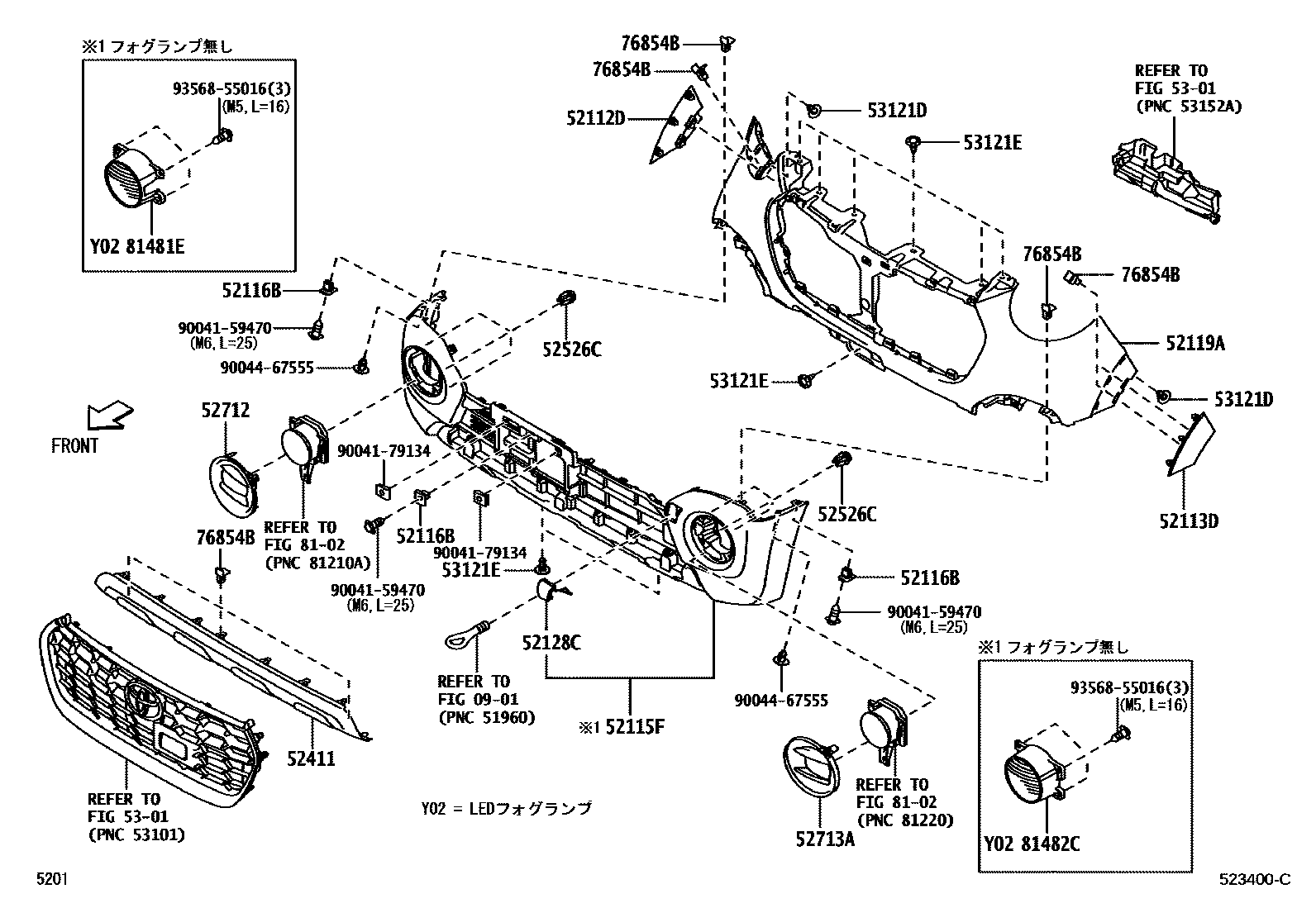

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

0901

52112DEXTENSION, FRONT BUMPER, RH

main52112-B2020-B0iLA250,260..CG,CGT,CX201609-201710

main52112-B2020-B0iLA250,260..CG,CGT,CX201710-202001

52113DEXTENSION, FRONT BUMPER, LH

main52113-B2010-B0iLA250,260..CG,CGT,CX201609-201710

main52113-B2010-B0iLA250,260..CG,CGT,CX201710-202001

52115FINSERT, FRONT BUMPER COVER

main52104-B2020-B0iLA250,260..CG,CGT,CX201609-201710

main52104-B2020-B0iLA250,260..CG,CGT,CX201710-202001

52116BRETAINER, FRONT BUMPER

main52116-B2480iLA250,260..CG,CGT,CX201609-202001

52119ACOVER, FRONT BUMPER

main52101-B2A60-A0iLA250,260..FG,FGT,FX,S201609-202009

WHITE PEARL MC.CS,W24

main52101-B2A60-A1iLA250,260202008-202306

WHITE PEARL SE.,W25

main52101-B2A60-B0iLA250,260..S..PS2;LA250,260..(FG,FGT,FX)..PS1201609-202001

SILVER ME.,S28

main52101-B2A60-C0iLA250,260..FG,FGT,FX,S201609-202306

BLACK M.M.,X07

main52101-B2A60-D0iLA250,260..FG,FGT,FX,S201609-201710

RED,R40

main52101-B2A60-D1iLA250,260..FG,FGT,FX201609-202306

BROWN MC.CS,R59

main52101-B2A60-D2iLA250,260..FG,FGT,FX201609-202306

RED ME.,R67

main52101-B2A60-E0iLA250,260..FG,FGT,FX201609-202306

LT.ROSE M.M.,T22

main52101-B2A60-G1iLA250,260..FG,FGT,FX201710-202306

DARK GREEN MC.,G58

main52101-B2A60-J0iLA250,260..S..PS1;LA250,260..FG,FGT,FX201609-202001

DARK BLUE SE.,B79

main52119-B2E70-A0iLA250,260..CG,CGT,CX201609-202001

WHITE PEARL MC.CS,W24

main52119-B2E70-B0iLA250,260..CG,CGT,CX201609-201710

SILVER ME.,S28

main52119-B2E70-C0iLA250,260..CG,CGT,CX201609-202001

BLACK M.M.,X07

main52119-B2E70-D1iLA250,260..CG,CGT,CX201609-202001

RED ME.,R67

main52119-B2E70-D2iLA250,260..CG,CGT,CX201609-201710

ORANGE ME.,R71

main52119-B2E70-F0iLA250,260..CG,CGT,CX201710-202001

YELLOW SE.,Y13

main52119-B2E70-G0iLA250,260..CG,CGT,CX201609-201710

GREEN,G57

main52119-B2E70-G1iLA250,260..CG,CGT,CX201710-202001

KHAKI ME.,G55

main52119-B2E70-J0iLA250,260..CG,CGT,CX201609-202001

DARK BLUE SE.,B79

main52119-B2E70-J1iLA250,260..CG,CGT,CX201609-202001

BLUE,B80

52128CCOVER, FRONT BUMPER HOLE, LH

main52128-B2250-B0iLA250,260..CG,CGT,CX201609-201710

GRAY ME.,B79 ,B80 ,G57 ,R67 ,R71 ,S28 ,W24 ,X07

main52128-B2250-B0iLA250,260..CG,CGT,CX201710-202001

GRAY ME.,B79 ,B80 ,G55 ,R67 ,W24 ,X07 ,Y13

main52128-B2260-A0iLA250,260..FG,FGT,FX,S201609-202009

WHITE PEARL MC.CS,W24

main52128-B2260-A1iLA250,260202008-202306

WHITE PEARL SE.,W25

main52128-B2260-B0iLA250,260..S..PS2;LA250,260..(FG,FGT,FX)..PS1201609-202001

SILVER ME.,S28

main52128-B2260-C0iLA250,260..FG,FGT,FX,S201609-202306

BLACK M.M.,X07

main52128-B2260-D0iLA250,260..FG,FGT,FX,S201609-201710

RED,R40

main52128-B2260-D1iLA250,260..FG,FGT,FX201609-202306

BROWN MC.CS,R59

main52128-B2260-D2iLA250,260..FG,FGT,FX201609-202306

RED ME.,R67

main52128-B2260-E0iLA250,260..FG,FGT,FX201609-202306

LT.ROSE M.M.,T22

main52128-B2260-G1iLA250,260..FG,FGT,FX201710-202306

DARK GREEN MC.,G58

main52128-B2260-J0iLA250,260..S..PS1;LA250,260..FG,FGT,FX201609-202001

DARK BLUE SE.,B79

52411GUARD, FRONT BUMPER

main52411-B2010-B1iLA250,260..CG,CGT,CX201609-201710

main52411-B2010-B1iLA250,260..CG,CGT,CX201710-202001

52526CRETAINER, FRONT BUMPER, LOWER

main52526-B2030iLA250,260..CG,CGT,CX201609-202001

52712MOULDING, FRONT BUMPER SIDE, RH

main52712-B2310iLA250,260..CX201609-202001

main52712-B2320iLA250,260..CG,CGT201609-202001

main52712-B2340iLA250,260..FG,FGT,FX,S201609-202306

52713AMOULDING, FRONT BUMPER SIDE, LH

main52713-B2310iLA250,260..CX201609-202001

main52713-B2320iLA250,260..CG,CGT201609-202001

main52713-B2340iLA250,260..FG,FGT,FX,S201609-202306

5301

53121DCLIP(FOR FRONT BUMPER), NO.2

main90044-67555iLA250,260201901

main90044-67585iLA250,260..FG,FGT,FX,S;LA250,260..(CG,CGT,CX)..PS1201609-201812

53121ECLIP(FOR FRONT BUMPER), NO.1

main90044-68320iLA250,260201609-201906

sub90044-68378

main90044-68378iLA250,260201907

76854BRETAINER, FRONT SPOILER,NO.2

main76854-87401iLA250,260..S201609-202001

8102

81481ECOVER, FOG LAMP, RH

main81481-B2030iLA250,260..CX,FX201609

81482CCOVER, FOG LAMP, LH

main81482-B2030iLA250,260..CX,FX201609

9004159470

main90041-59470

9004179134

main90041-79134

9004467555

main90044-67555

9356855016

main93568-55016

22 parts on this diagram · 3 diagrams in section
