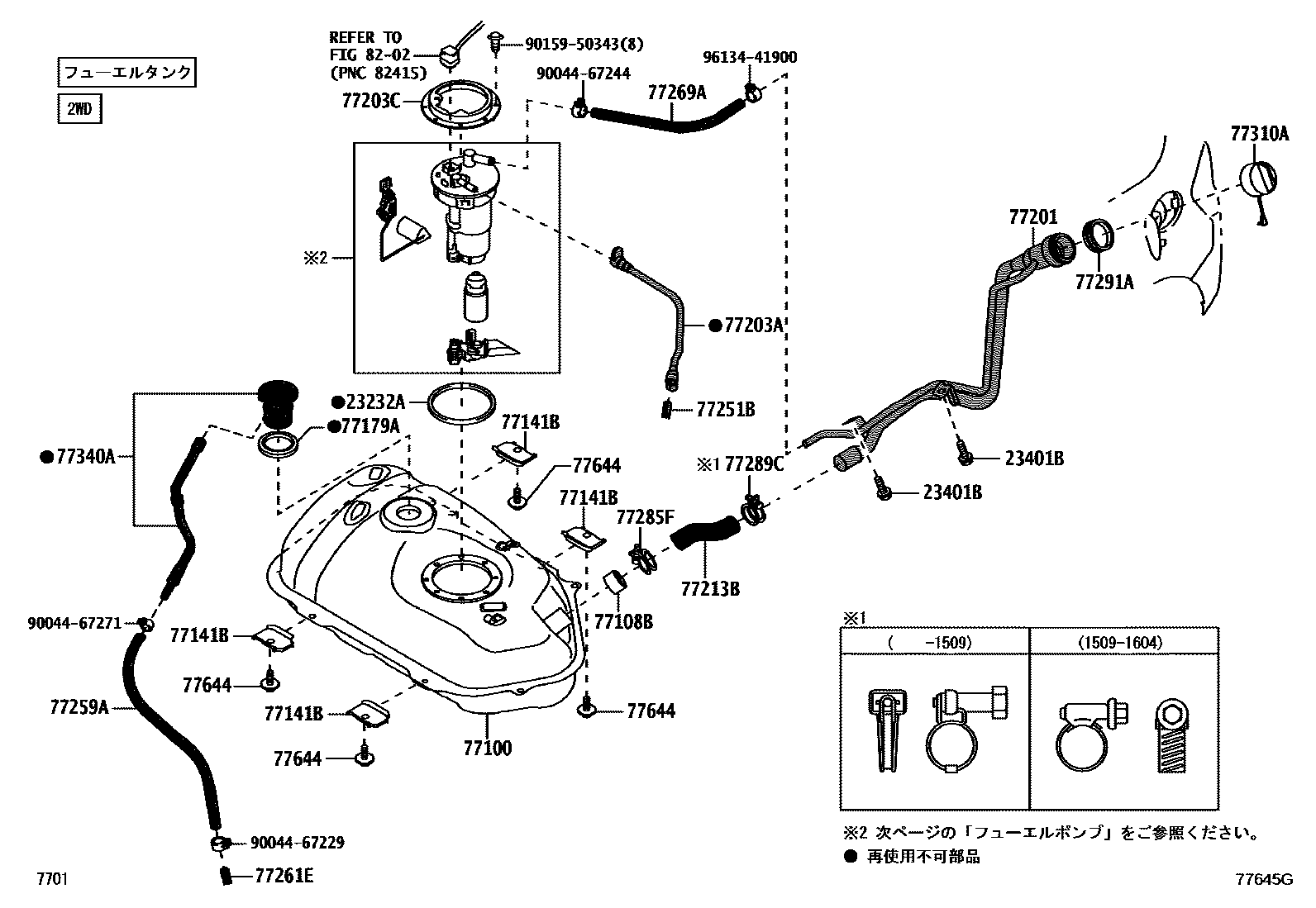

FUEL TANK & TUBE

0001 1 0002 1 0003 1���������� 0004 1���������� 0005 1 0006 1 0007 1

23232AGASKET, FUEL PUMP

main23232-87401iKFV#..LA700,710201605

23401BBOLT

main90041-20137iKFV#..LA700201909

main91551-A0816iKFV#..LA700201507-201605

77100TANK ASSY, FUEL

main77001-B2120iLA710201605

main77001-B2270iLA700201507-201605

77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK

main77108-B2010iLA700,710201507-201605

77141BREINFORCEMENT, FUEL TANK FLANGE, NO.1

main77141-B1020×4iLA700201605

main77141-B2010×3iLA710201605

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-33010iLA700,710201605

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-B2330iLA710201605

main77201-B2350iLA700201605

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-B2020iLA710201605

main77203-B2040iLA700201605

77203CBRACKET, FUEL PUMP

main23265-B2010iLA700,710201605

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-B2030iLA710201605

main77213-B2060iLA700201507-201509

main77213-B2120iLA700201605

77251BTUBE, FUEL MAIN

main77251-B2230iLA700,710201507-201605

main77251-B2300iLA700,710201605

77259AHOSE, FUEL(FOR BREATHER TUBE)

main77259-B2050iLA710201605

main77259-B2070iLA700201605

77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

main95333-04095iLA700,710201605

77269AHOSE, FUEL TANK BREATHER

main77269-97201iLA700201605

main77269-B2020iLA710201605

77285FCLAMP, FUEL TUBE, NO.1

main96111-30440iLA700,710201605

77289CCLAMP, FUEL TUBE, NO.4

main90044-60129iLA700201605

main90460-37003iLA710201509-201605

main96111-30360iLA710201507-201509

main96111-30440iLA700201507-201509

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-B2060iLA700,710201605

77310ACAP ASSY, FUEL TANK

main77300-52030iLA700,710201605

77340AVALVE ASSY, FUEL CUT OFF W/TUBE

main77340-B2020iLA710201605

main77340-B2030iLA700201605

77644BOLT, FUEL TANK

main90041-20155×4iLA700,710201507-201605

main90041-20292×4iLA700,710201909

8202

9004467229

main90044-67229

9004467244

main90044-67244

9004467271

main90044-67271

9015950343

main90159-50343

9613441900

main96134-41900

26 parts on this diagram · 7 diagrams in section
