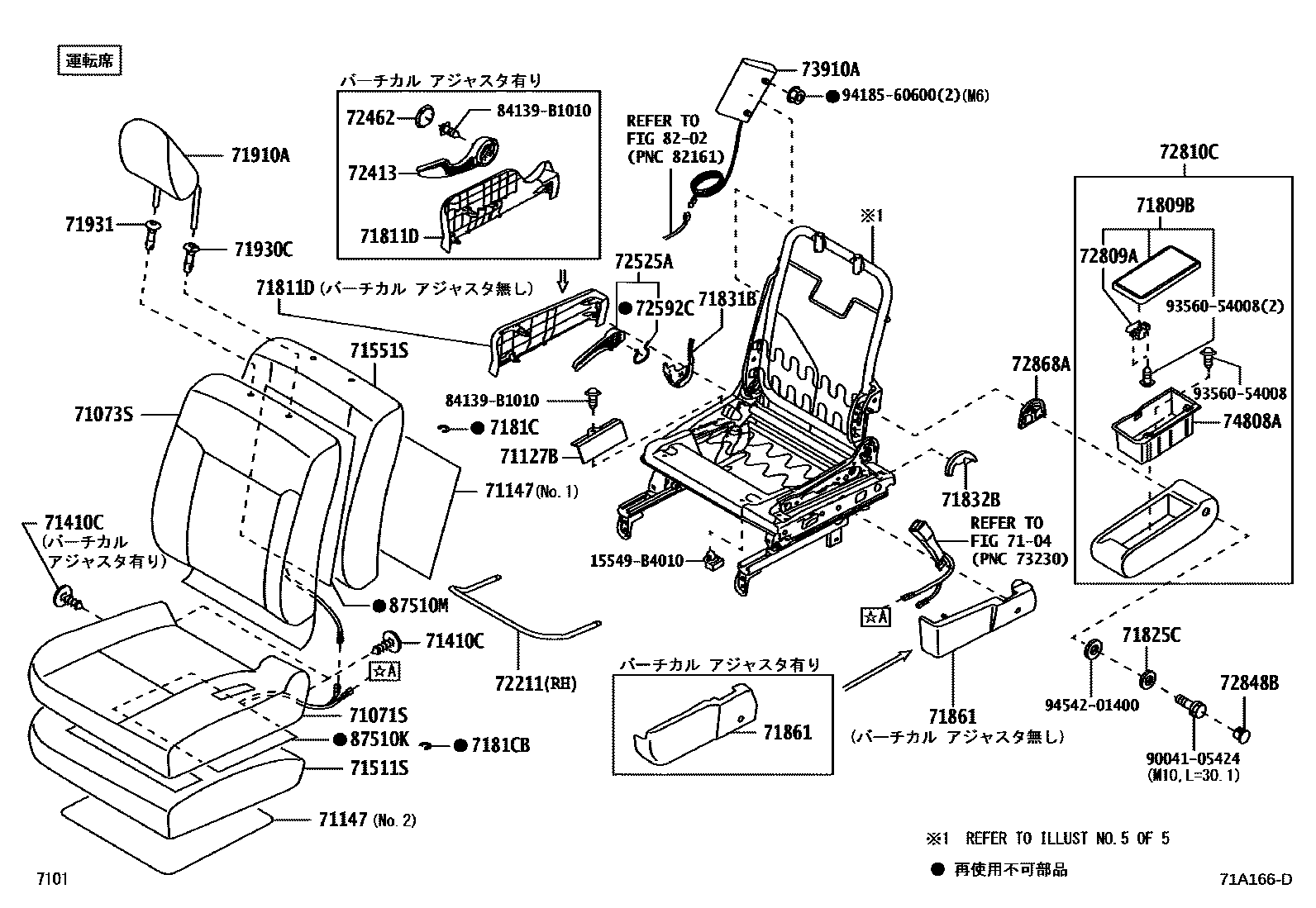

FRONT SEAT & SEAT TRACK

0001 1������ 0002 1������(��� ����) 0003 1������� 0004 1�������(��� ����) 0005 1�������

7104

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-B2J10-C1iLA700..NTBO201605

OFF BLACK,TRIM1#

main71071-B2K70-C0iLA710..NTBO201507-201605

main71071-B2L40-C0supersedes 71071-B2L20-C0iLA710..TBO201605

main71071-B2L60-C1supersedes 71071-B2J20-C1iLA700..TBO201507-201605

main71071-B2M70-C1supersedes 71071-B2J10-C1iLA700..NTBO201507-201605

main71071-B2P60-C0supersedes 71071-B2K70-C0iLA700..L201605

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71027-B2820-C1iLA700,710..NTBO201507-201605

OFF BLACK,TRIM1#

main71027-B2B00-C1iLA700,710..TBO201605

OFF BLACK,TRIM1#

71127BPLATE, FR SEAT CUSHION PROTECTOR SET

main71127-B2010iLA700,710201605

71147SILENCER, SEAT SPRING

main71147-B1020iLA700,710201605

main71147-B2100×2iLA700,710201507-201604

main71147-B2140×2iLA700,710201906

71410CCLIP(FOR FRONT SEAT CUSHION)

main90044-68185-B1×2iLA700..D201605

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-B2A10iLA700,710201507-201605

main71501-B2A11iLA700,710201605

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-B2B90iLA700,710201605

71809BCOVER SUB-ASSY, FRONT SEAT ARMREST HOLDER

main71809-B2320-C0iLA700,710201507-201605

BLACK,TRIM1#

main71809-B2320-C1iLA700,710201611

BLACK,TRIM1#

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-B2490-B0iLA700,710201507-201605

DK.GRAY,TRIM1#

main71811-B2490-C0iLA700,710201611

BLACK,TRIM1#

main71811-B1110-C0iLA700..D201906

main71811-B2500-B0iLA700,710..G,L201605-201610

main71811-B2500-C0iLA700..D201611-201905

7181CRING, HOG, SMALL (FOR FRONT SEATBACK)

main71812-87201×3iLA700,710201605

7181CBRING, HOG, SMALL (FOR FRONT SEAT CUSHION)

main71812-87201×3iLA700,710201507-201605

71825CPLATE

main72815-B1010iLA700,710201605

71831BCOVER, FRONT SEAT HINGE, RH

main71831-B2110-B1iLA700,710201605-201610

DK.GRAY,TRIM1#

main71831-B2110-C0iLA700,710201611

BLACK,TRIM1#

71832BCOVER, FRONT SEAT HINGE, LH

main71832-B2110-B1iLA700,710201605-201610

DK.GRAY,TRIM1#

main71832-B2110-C0iLA700,710201611

BLACK,TRIM1#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-B2210-B0iLA700,710201507-201605

DK.GRAY,TRIM1#

main71861-B2210-C0iLA700,710201611

BLACK,TRIM1#

main71861-B1070-C0iLA700,710..G,L201906

main71861-B2200-B0iLA700,710..NTBO201507-201605

main71861-B2200-C0iLA700,710..G,L201611-201905

71910AHEADREST ASSY, FRONT SEAT

main71910-B2B90-C0×2iLA700,710201507-201605

BLACK,TRIM1#

71930CSUPPORT, FRONT SEAT HEADREST, LH

main71930-B2010-B0×2iLA700,710201507-201605

DK.GRAY,TRIM1#

main71930-B2010-C1×2iLA700,710201611

BLACK,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71931-B2010-B0×2iLA700,710201507-201605

main71931-B2010-C1×2iLA700,710201611

72211HANDLE, SEAT TRACK ADJUSTING

main72211-B2120iLA700,710201507-201605

72413LEVER, VERTICAL ADJUSTER LOCK

main72413-B2110-B1iLA700,710..NTBO201507-201605

main72413-B2110-C0iLA700..D201701

72462COVER, VERTICAL ADJUSTER RH

main72462-B2080-B0iLA700..D201605-201701

main72462-B2080-C0iLA700..D201701

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-B2110-B0iLA700,710201605-201610

DK.GRAY,TRIM1#

main72525-B2110-C0iLA700,710201611

BLACK,TRIM1#

main72525-B2100-B0iLA700,710..NTBO201507-201512

main72525-B2101-B0iLA700,710..NTBO201601-201605

main72525-B2101-C0iLA700..D201611

72592CRING, SHAFT SNAP

main90520-01002iLA700,710201605

72809ALOCK SUB-ASSY, CENTER ARMREST

main72809-B2010-B3iLA700,710201605-201610

DK.GRAY,TRIM1#

main72809-B2010-C1iLA700,710201611

BLACK,TRIM1#

72810CARMREST ASSY, FRONT SEAT, CENTER

main72810-B2720-C1iLA700,710..NTBO201507-201605

BLACK,TRIM1#

main72810-B2730-C1iLA700,710..TBO201507-201605

BLACK,TRIM1#

72848BCAP, SEAT ARMREST, NO.1

main72848-B2020-B2iLA700,710201507-201605

DK.GRAY,TRIM1#

main72848-B2020-C1iLA700,710201611

BLACK,TRIM1#

72868ACOVER, CENTER ARMREST HINGE

main72868-B2020iLA700,710201605

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-B2050iLA700,710201605-201910

main73910-B2051iLA700,710201911

74808ABOX SUB-ASSY, SEAT TRASH

main74808-B2040-B1iLA700,710201507-201605

DK.GRAY,TRIM1#

main74808-B2040-C0iLA700,710201611

BLACK,TRIM1#

8202

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-B2110iLA710201507-201605

87510MHEATER ASSY, FRONT SEATBACK, RH

main87530-B2110iLA700..D201605

15549B4010

main15549-B4010

84139B1010

main84139-B1010

9004105424

main90041-05424

9356054008

main93560-54008

9418560600

main94185-60600

9454201400

main94542-01400

39 parts on this diagram · 5 diagrams in section
