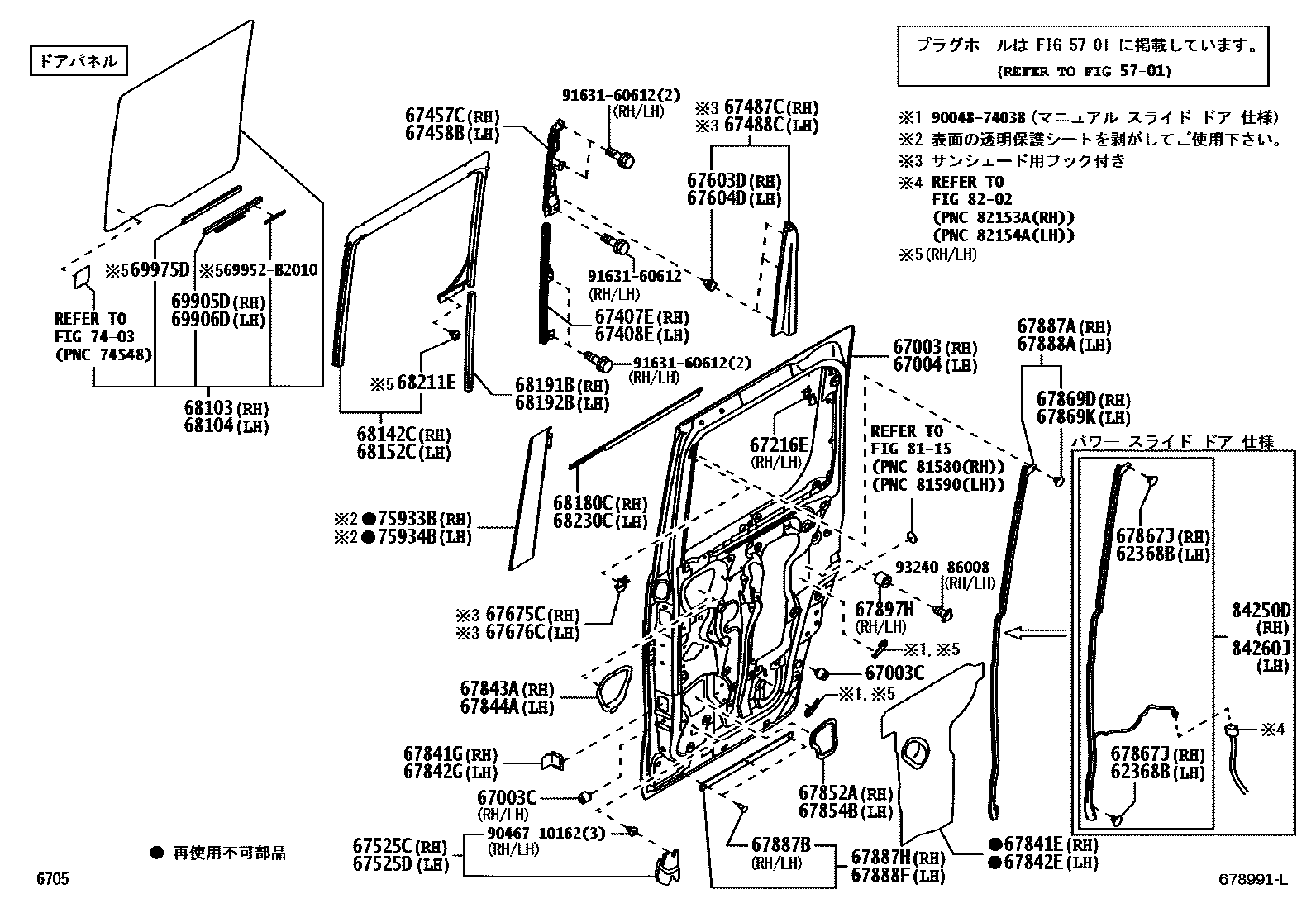

REAR DOOR PANEL & GLASS
5701
62368BCLIP, DOOR WINDOW GLASS, REAR LH
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67216ESTOPPER, REAR DOOR GLASS, UPPER NO.2
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67457CBRACKET, REAR DOOR REAR GUIDE, UPPER RH
67458BBRACKET, REAR DOOR REAR GUIDE, UPPER LH
67487CSEAL, REAR DOOR REAR GUIDE, RH
67488CSEAL, REAR DOOR REAR GUIDE, LH
67525CCOVER, SLIDE DOOR PANEL, LOWER RH
67525DCOVER, SLIDE DOOR PANEL, LOWER LH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
67603DRETAINER, REAR DOOR TRIM, RH
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
67604DRETAINER, REAR DOOR TRIM, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67841GCOVER, SLIDE DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67842GCOVER, SLIDE DOOR SERVICE HOLE, LH
67843ACOVER, REAR DOOR SERVICE HOLE, NO.2
67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH
67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2
67854BCOVER, SLIDE DOOR SERVICE HOLE, NO.3
67867JCLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)
67869DCLIP, DOOR WEATHERSTRIP
67869KCLIP, DOOR WEATHERSTRIP, LH
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67887BCLIP(FOR REAR DOOR WEATHERSTRIP)
67887HWEATHERSTRIP, REAR DOOR, NO.2 RH
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
67888FWEATHERSTRIP, REAR DOOR, NO.2 LH
67897HCUSHION, REAR DOOR
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68211ECLIP, DOOR GLASS WEATHERSTRIP
69905DCHANNEL SUB-ASSY, SLIDE DOOR GLASS, RH
69906DCHANNEL SUB-ASSY, SLIDE DOOR GLASS, LH
69975DFILLER, REAR DOOR GLASS CHANNAL
7403
75933BTAPE, BLACK OUT, OUTER FRONT RH
TUYAKESI BLACK DUMMYCOLOR,B58 ,B69 ,B82 ,B87 ,G55 ,G57 ,R59 ,R71 ,S38 ,W24 ,W25 ,X81 ,X85 ,X87 ,XA3 ,XE1 ,XJ0 ,XK6 ,XK7 ,XK8
TUYAKESI BLACK DUMMYCOLOR,B58 ,B69 ,G55 ,G57 ,R59 ,R71 ,S38 ,W24 ,X81 ,X85 ,X87 ,XA3 ,XE1
TUYAKESI BLACK DUMMYCOLOR,B58 ,G55 ,R59 ,R71 ,S38 ,W24 ,X85 ,X86 ,X87 ,Y09
75934BTAPE, BLACK OUT, OUTER FRONT LH
TUYAKESI BLACK DUMMYCOLOR,B58 ,B69 ,G55 ,G57 ,R59 ,R71 ,S38 ,W24 ,X81 ,X85 ,X87 ,XA3 ,XE1
TUYAKESI BLACK DUMMYCOLOR,B58 ,B69 ,B82 ,B87 ,G55 ,G57 ,R59 ,R71 ,S38 ,W24 ,W25 ,X81 ,X85 ,X87 ,XA3 ,XE1 ,XJ0 ,XK6 ,XK7 ,XK8
TUYAKESI BLACK DUMMYCOLOR,B58 ,G55 ,R59 ,R71 ,S38 ,W24 ,X85 ,X86 ,X87 ,Y09
8115
8202
84250DSENSOR ASSY, POWER SLIDE DOOR, RH
84260JSENSOR ASSY, POWER SLIDE DOOR, LH
69952B2010BRACKET, FRONT DOOR GLASS, LH
main69952-B2010
9004874038
main90048-74038
9046710162
main90467-10162
9163160612
main91631-60612
9324086008
main93240-86008
61 parts on this diagram · 2 diagrams in section
