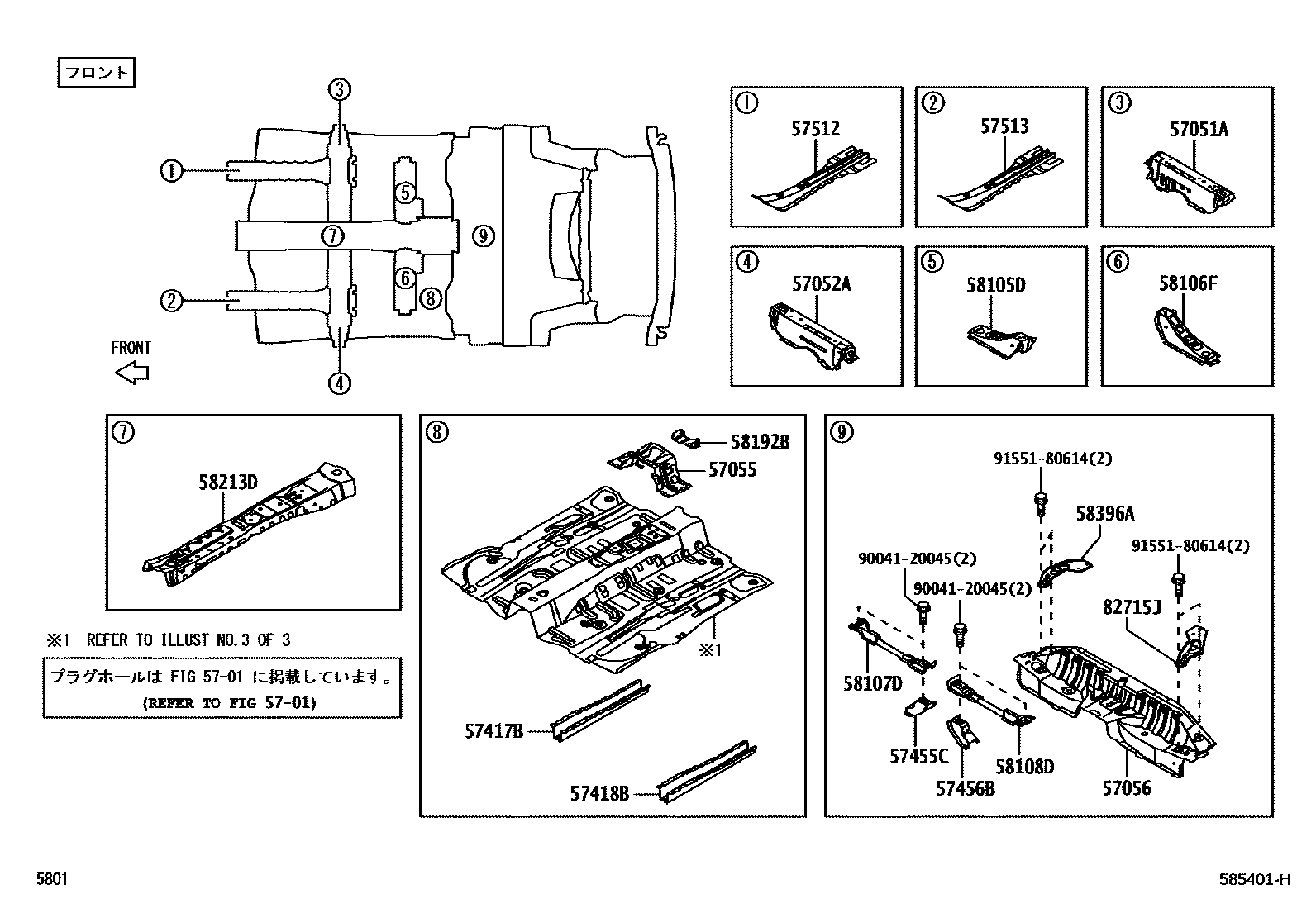

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-B2230iLA700,710201507-201605

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-B2180iLA700,710201507-201605

57055REINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.5

main57055-B2140iLA700201507-201605

57056REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.6

main57053-B2080iLA700201507-201605

main57053-B2340iLA710201507-201605

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57417-B2080iLA700,710201507-201605

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-B2080iLA700,710201507-201605

57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

main57455-B2030iLA700,710201507-201605

57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

main57455-B2030iLA700,710201507-201605

57512REINFORCEMENT, FRONT FLOOR, RH

main57427-B2030iLA700,710201507-201605

57513REINFORCEMENT, FRONT FLOOR, LH

main57427-B2030iLA700,710201507-201605

58105DRETAINER SUB-ASSY, SEAT RAIL, REAR RH

main58105-B2100iLA700,710201507-201605

58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH

main58106-B2050iLA700,710201507-201605

58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-B2040iLA700,710201507-201605

58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58107-B2040iLA700,710201507-201605

58192BPLATE, FRONT FLOOR, REAR

main58194-B2050iLA700201507-201605

main58194-B2060iLA710201507-201605

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-B2270iLA700,710201507-201605

58396ABRACKET, WIRE HARNESS CLAMP

main82715-B2600iLA700,710201507-201605

82715JBRACKET, WIRING HARNESS CLAMP

main82715-B2750iLA700,710201507-201605

9004120045

main90041-20045

9155180614

main91551-80614

21 parts on this diagram · 6 diagrams in section
