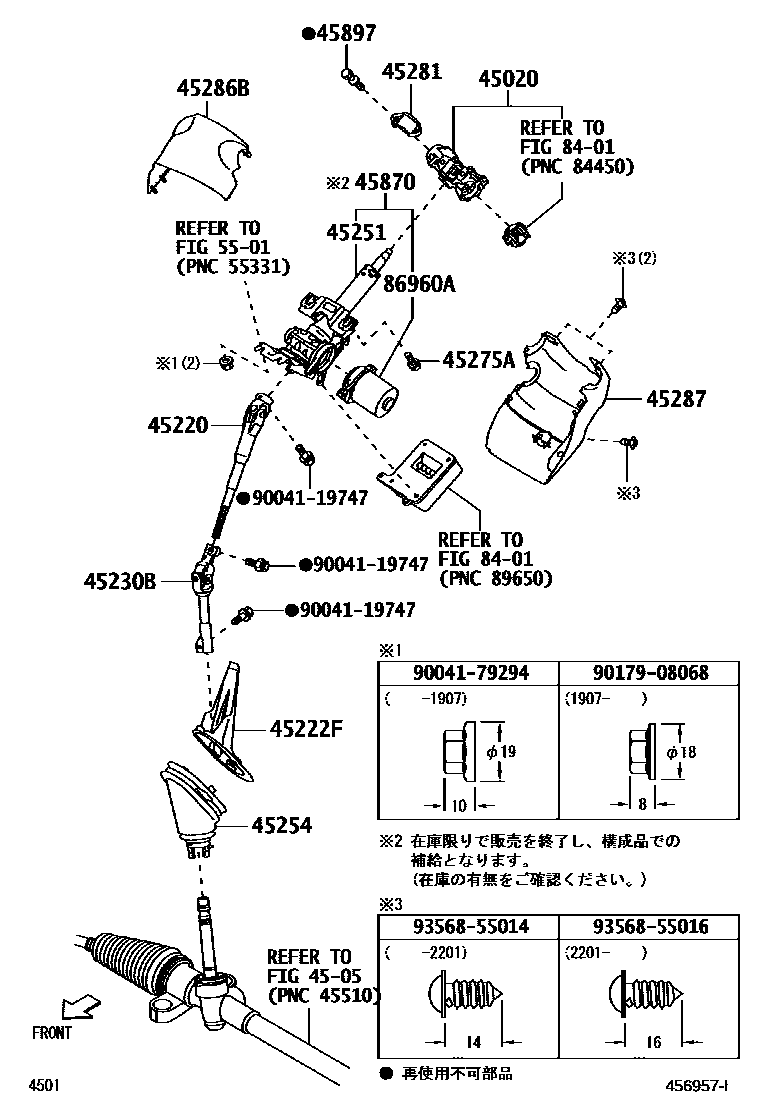

STEERING COLUMN & SHAFT

0001 1 0002 1����� ����

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-B2320iLA700..D201507-201605

main45020-B2380iLA700..D201605-201802

main45020-B2381iLA700..D201803

4505

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-B2230iLA700,710201605

45222FCOVER, DUST

main45222-B2160iLA700,710201605

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45290-B2180iLA700,710201605

45251TUBE SET, STEERING COLUMN

main45251-B9010iLA700..D201507-201605

main45251-B9020iLA700,710..G,L,X201507-201605

main45251-B9040supersedes 45251-B9020iLA700,710..G,L201605

45254SHIELD, STEERING COLUMN HOLE

main45254-B2120iLA700,710201605

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main91551-80822×2iLA700,710201605

45281HOUSING, STEERING COLUMN

main45281-B2040iLA700..D201605

main45281-B2050iLA700,710..G,L,X201507-201605

45286BCOVER, STEERING COLUMN, UPR

main45286-B2120-B0iLA700,710201507-201605

DK.GRAY,TRIM1#

main45286-B2260-B0iLA700,710201605

DK.GRAY,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-B2320-B0iLA700,710201507-201605

DK.GRAY,TRIM1#

main45287-B2410-B0iLA700,710201605-201908

DK.GRAY,TRIM1#

main45287-B2411-B0iLA700,710201909

DK.GRAY,TRIM1#

main45287-B2330-B0iLA700,710..TBO201507-201605

main45287-B2420-B0iLA700,710..G,L201605-201908

main45287-B2421-B0iLA700,710..G,L201909

45870TUBE ASSY, STEERING COLUMN

main45870-B2C20iLA700..D201507-201605

main45870-B2C30iLA700,710..G,L,X201507-201605

main45870-B2C40supersedes 45870-B2C30iLA700,710..G,L201605

45897BOLT, STEERING LOCK SET

main45897-B1020×2iLA700,710..G,L201610

main45897-B2010×2iLA700..D201605

main45897-B5010×2iLA700,710..G,L,X201507-201605

5501

8401

86960AMOTOR SET, POWER STEERING

main80960-B9010iLA700,710201507-201605

9004119747

main90041-19747

9004179294

main90041-79294

9017908068

main90179-08068

9356855014

main93568-55014

9356855016

main93568-55016

21 parts on this diagram · 2 diagrams in section
