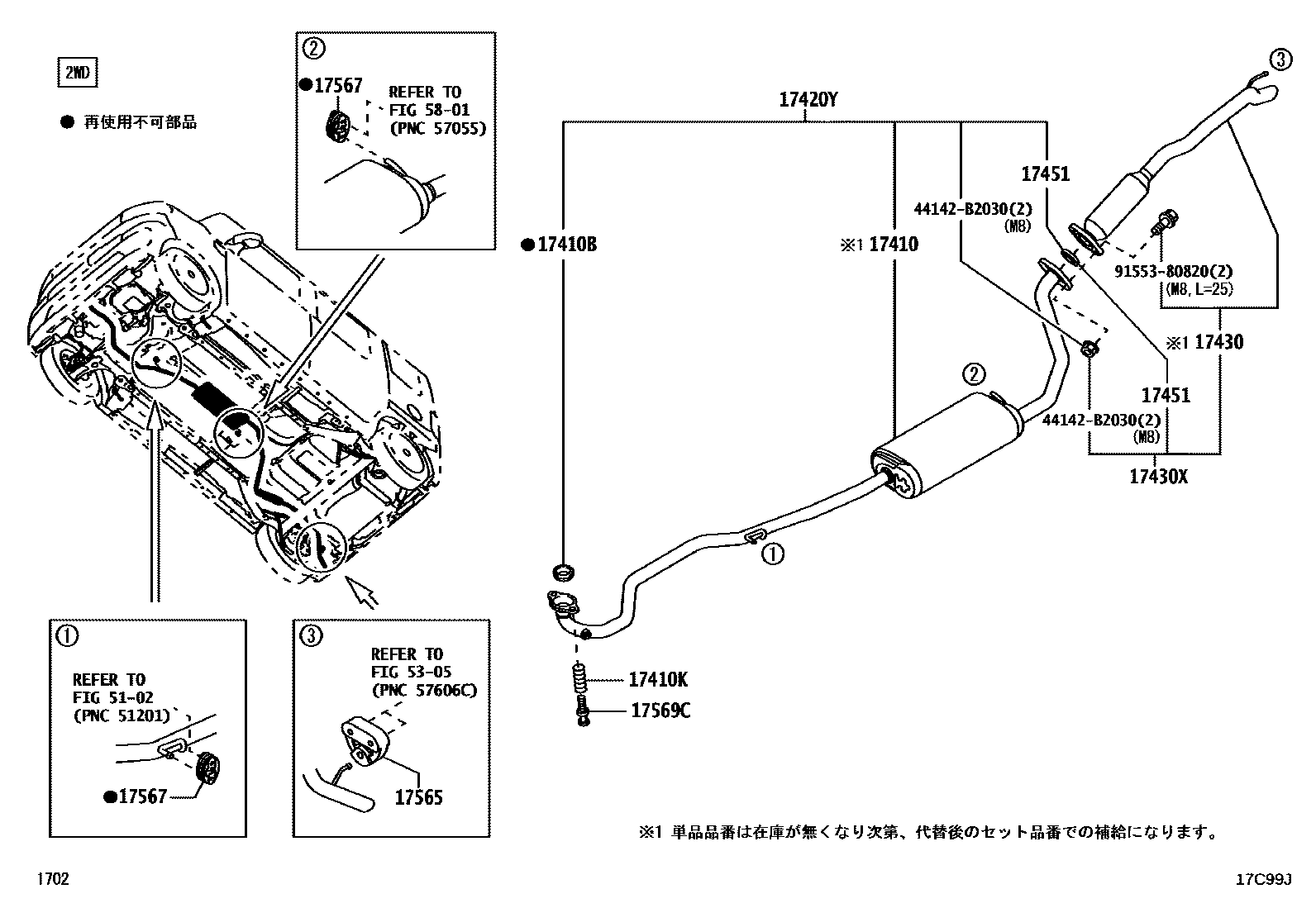

EXHAUST PIPE

0001 12WD 0002 14WD

17410PIPE ASSY, EXHAUST, FRONT

main17410-B2510iKFVE..LA710201507-201512

sub17410-B2630

main17410-B2610iKFVET..LA710201507-201512

sub17410-B2880

main17410-B2680iKFVET..LA700201507-201605

sub17420-B9270

main17410-B2720iKFVE..LA700201507-201605

sub17420-B9280

main17410-B2760iKFVE..LA710201512-201606

sub17410-B2860

main17410-B2770iKFVET..LA710201512-201606

sub17410-B2870

main17410-B2780iKFVE..LA700201605

sub17420-B9290

main17410-B2860iKFVE..LA710201606

main17410-B2870iKFVET..LA710201606

17410BGASKET, EXHAUST PIPE

main17451-B1020iKFV#..LA700,710201507-201605

17410KSPRING, EXHAUST PIPE

main17152-97201iKFV#..LA700,710201507-201605

17420YPIPE SET, EXHAUST, FRONT

main17420-B9270iKFVET..LA700201507-201605

main17420-B9280iKFVE..LA700201507-201605

main17420-B9290iKFVE..LA700201605

17430PIPE ASSY, EXHAUST, TAIL

main17430-B2560iKFVET..LA700201507-201605

sub17430-B9040

main17430-B2570iKFVE..LA700201507-201605

sub17430-B9240

main17430-B2580iKFVE..LA700201605-201808

sub17430-B9050

main17430-B9050iKFVE..LA700201809

17430XPIPE SET, EXHAUST TAIL

main17430-B9040iKFVET..LA700201507-201605

main17430-B9050iKFVE..LA700201605

main17430-B9240iKFVE..LA700201507-201605

17451GASKET, EXHAUST PIPE

main17451-B2020iKFV#..LA700201507-201605

17565SUPPORT, EXHAUST PIPE, NO.5

main17566-B2030iKFV#..LA700201507-201605

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-B2020iKFV#..LA700201507-201605

17569CBOLT, EXHAUST PIPE SUPPORT

main17569-97201iKFV#..LA700,710201507-201605

5102

5305

5801

44142B2030NUT, LOCK

main44142-B2030

9155380820

main91553-80820

15 parts on this diagram · 2 diagrams in section
