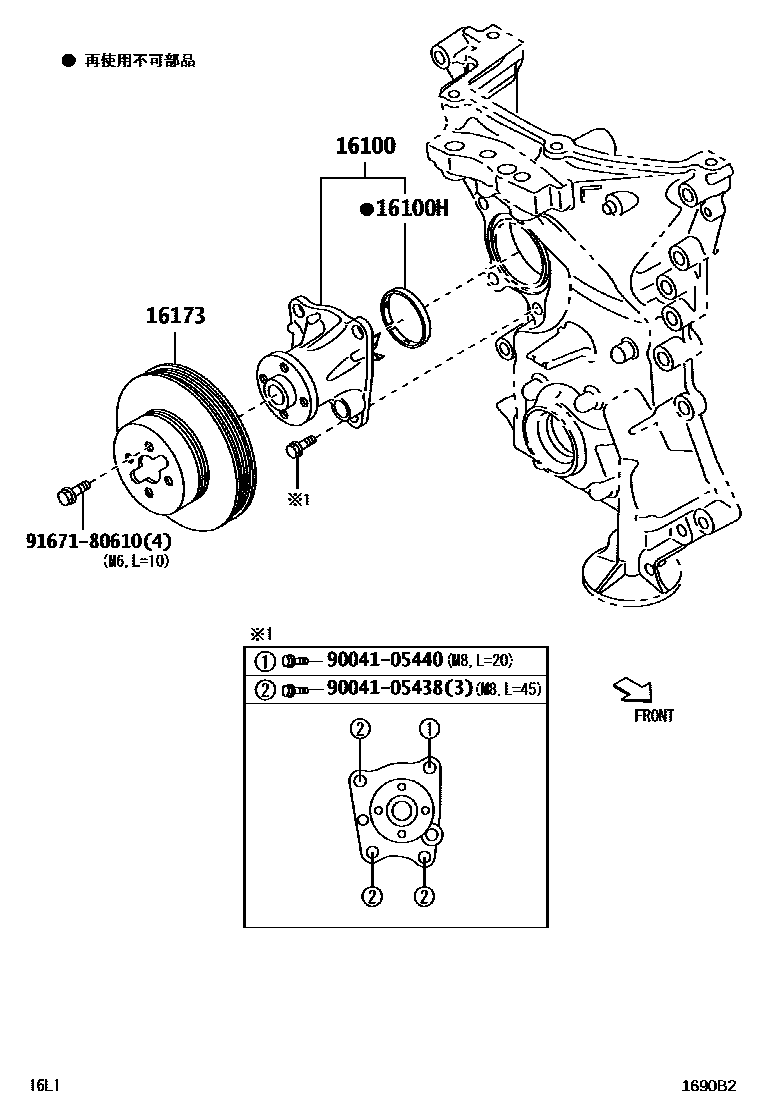

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-B9455iKFV#..LA700,710201507-201510

main16100-B9457iKFV#..LA700,710201510-201511

main16100-B9458iKFV#..LA700,710201512-201601

main16100-B9459iKFV#..LA700,710201602-201605

16100HRING, O(FOR WATER PUMP)

main90043-01323iKFV#..LA700,710201507-201605

16173PULLEY, WATER PUMP

main16173-B2014iKFV#..LA700,710201507-201605

9004105438

main90041-05438

9004105440

main90041-05440

9167180610

main91671-80610

6 parts on this diagram · 1 diagram in section
