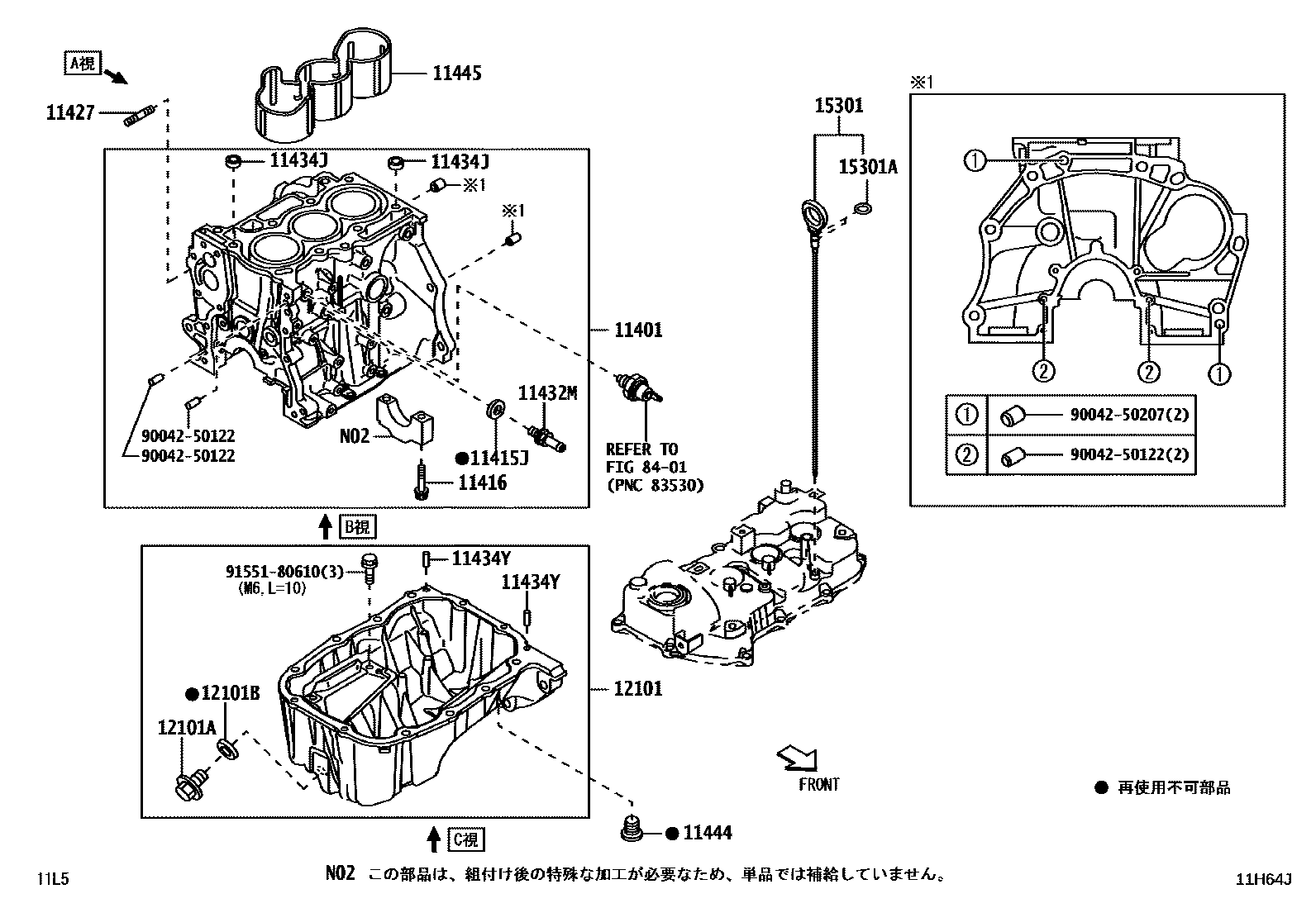

CYLINDER BLOCK

0001 1 0002 1 0003 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-B2143iKFVET..LA700,710201507-201605

main11401-B2190iKFVE..LA700,710201507-201605

11415JGASKET(FOR DRAIN COCK)

main90044-30279iKFV#..LA700,710201507-201605

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90041-05368iKFV#..LA700,710201507-201605

main90041-05368iKFV#..LA700,710201605

11427BOLT, STUD(FOR TIMING CHAIN COVER SET)

main90041-16498iKFV#..LA700,710201507-201605

11432MUNION(FOR CYLINDER BLOCK)

main90044-04155iKFV#..LA700,710201507-201608

main90044-04158iKFV#..LA700,710201609

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90042-53013iKFV#..LA700,710201507-201605

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-06003iKFV#..LA700,710201507-201605

11444PLUG, HOLE

main11444-B2010iKFV#..LA700,710201507-201605

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-B2030iKFV#..LA700,710201507-201605

12101PAN SUB-ASSY, OIL

main12101-B2025iKFV#..LA700,710201507-201605

12101APLUG(FOR OIL PAN DRAIN)

main90043-41087iKFV#..LA700,710201507-201605

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90044-30281iKFV#..LA700,710201507-201605

15301GAGE SUB-ASSY, OIL LEVEL

main15301-B2061iKFV#..LA700,710201507-201605

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005iKFV#..LA700,710201507-201605

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004250122

main90042-50122

9004250207

main90042-50207

9155180610

main91551-80610

18 parts on this diagram · 3 diagrams in section
